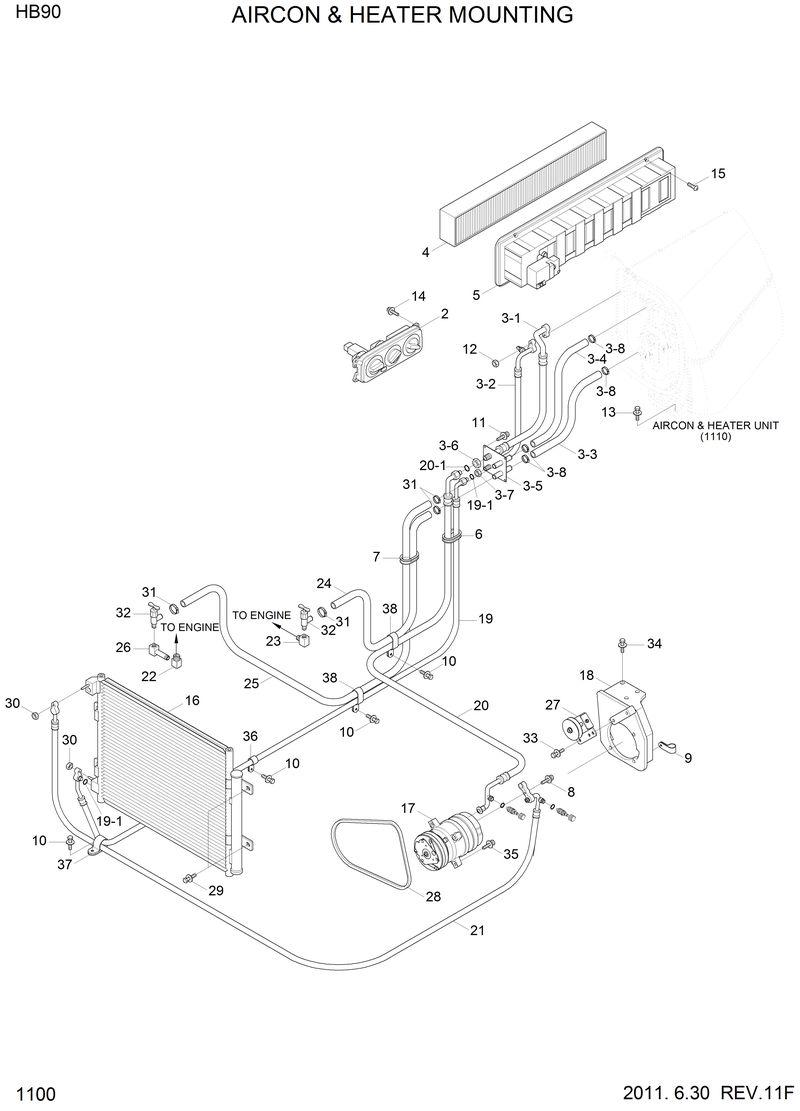

Запчасти Hyundai HB90 AIRCON & HEATER MOUNTING

11U2-90321

11U2-90321-. Hose-Heater,Inlet

11U2-90371

11U2-90371-Hose Coupler Assy

11U2-90460

11U2-90460-V-Belt

S520-027000

S520-027000-Clamp-Hose,Screw Type

10

S037-081556

S037-081556-Bolt-W/Washer

11

S035-061556

S035-061556-Bolt-W/Washer

12

S281-081006

S281-081006-Nut-Flanged

13

S035-082556

S035-082556-Bolt-W/Washer

14

S131-052046

S131-052046-Screw-W/Washer

15

S161-060156

S161-060156-Screw-Cross R/Round

16

11U2-90090

11U2-90090-Condenser

17

11U2-90140

11U2-90140-Compressor Assy

18

11U2-90152

11U2-90152-Bracket Wa-Comp

19

11U2-90121

11U2-90121-Hose Assy-Liq B

2

11U2-90070

11U2-90070-Control Assy

20

11U2-90101

11U2-90101-Hose Assy-Suction

20-1

G58074F0

G58074F0-. O-Ring

20-1

G58074F0

G58074F0-. O-Ring

21

11U2-90112

11U2-90112-Hose Assy-Dis

22

11U2-90200

11U2-90200-Connector-Heat Valve

23

11U2-90210

11U2-90210-Connector-Heat Valve

24

11U2-90231

11U2-90231-Hose-Heater

25

11U2-90241

11U2-90241-Hose-Heater

26

11U2-90250

11U2-90250-Connector-Heat Valve

27

11S8-90260

11S8-90260-Bkt & T/Pulley Assy

28

11U2-90271

11U2-90271-V-Belt

29

S035-082056

S035-082056-Bolt-W/Washer

3

11U2-90370

11U2-90370-Hose Coupler Assy

3-1

11U2-90300

11U2-90300-. Hose Assy-Suction

3-2

11U2-90310

11U2-90310-. Hose Assy-Liq

3-3

11U2-90320

11U2-90320-. Hose-Heater,Inlet

3-4

11U2-90330

11U2-90330-. Hose-Heater,Outlet

3-5

11U2-90290

11U2-90290-. Coupler Assy

3-6

11U2-90400

11U2-90400-. Nut-Suc Hose

3-7

11U2-90410

11U2-90410-. Nut-Liq Hose

3-8

11U2-90420

11U2-90420-. Clamp- Heater Hose

30

S285-06100B

S285-06100B-Nut-Flanged

31

S572-270006

S572-270006-Clamp-Hose,Wire Type

32

E127-3136

E127-3136-Valve-Cut Off

33

S037-102556

S037-102556-Bolt-W/Washer

34

S037-103056

S037-103056-Bolt-W/Washer

35

S037-103556

S037-103556-Bolt-W/Washer

36

31L7-10190

31L7-10190-Clamp-Tube

37

31L7-10230

31L7-10230-Clamp

38

31L7-10240

31L7-10240-Clamp-Tube

4

11U2-90170

11U2-90170-Filter-Fresh Air

5

11U2-90130

11U2-90130-Duct Inlet Assy

6

11U2-90340

11U2-90340-Grommet

7

11U2-90350

11U2-90350-Grommet

8

S038-103556

S038-103556-Bolt-W/Washer

9

S543-050002

S543-050002-Clamp-Tube
