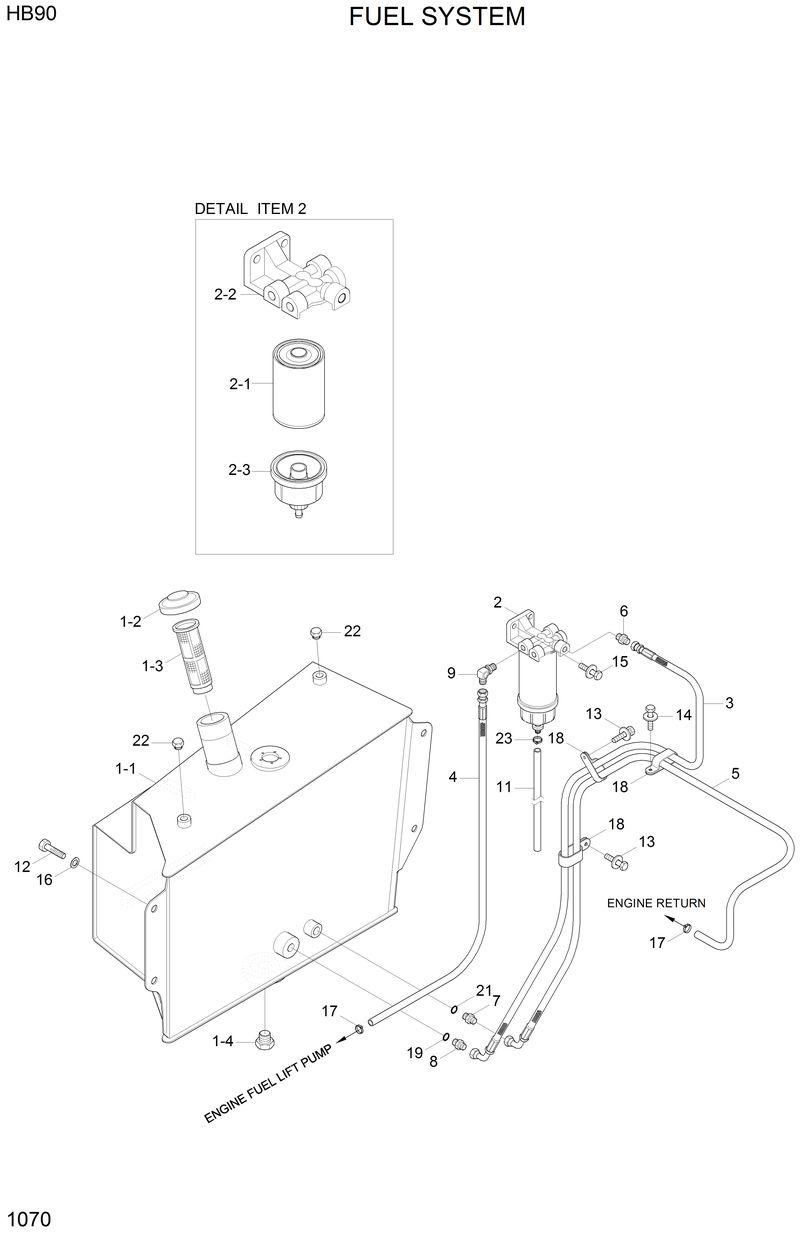

Запчасти Hyundai HB90 FUELING SYSTEM

1

11U2-26012

11U2-26012-Fuel Tank Assy

1-1

11U2-26022

11U2-26022-. Fuel Tank Wa

1-2

31N4-02120

31N4-02120-. Fuel Cap Assy

1-3

31E1-10300

31E1-10300-. Strainer

1-4

11S4-00610

11S4-00610-. Plug-Magnetic

11

11S4-00590

11S4-00590-Hose-Fuel

12

S017-16045D

S017-16045D-Bolt-Hex

13

S037-101556

S037-101556-Bolt-W/Washer

14

S037-102056

S037-102056-Bolt-W/Washer

15

S035-082526

S035-082526-Bolt-W/Washer

16

S441-160006

S441-160006-Washer-Hardened

17

S520-015000

S520-015000-Clamp-Hose

18

31L7-10230

31L7-10230-Clamp

19

S631-018001

S631-018001-O-Ring

2

11NA-72000

11NA-72000-Prefilter Assy

2-1

11NA-72010

11NA-72010-. Element Assy-F/Filter

2-2

11LD-20240

11LD-20240-. Head-Filter

2-3

11LD-20260

11LD-20260-. Bowl Assy-W/Knob

21

S631-014001

S631-014001-O-Ring

22

S981-121500

S981-121500-Plug

23

S571-140002

S571-140002-Clamp-Hose,Wire Type

3

11U2-20051

11U2-20051-Hose Assy

4

11U2-20063

11U2-20063-Hose Assy

5

11U2-20071

11U2-20071-Hose Assy

6

11QB-50040

11QB-50040-Connector

7

P010-110003

P010-110003-Connector

8

P010-110004

P010-110004-Connector

9

11U1-20350

11U1-20350-Elbow-90
