Запчасти Hyundai HB90 OUTRIGGER MOUNTING

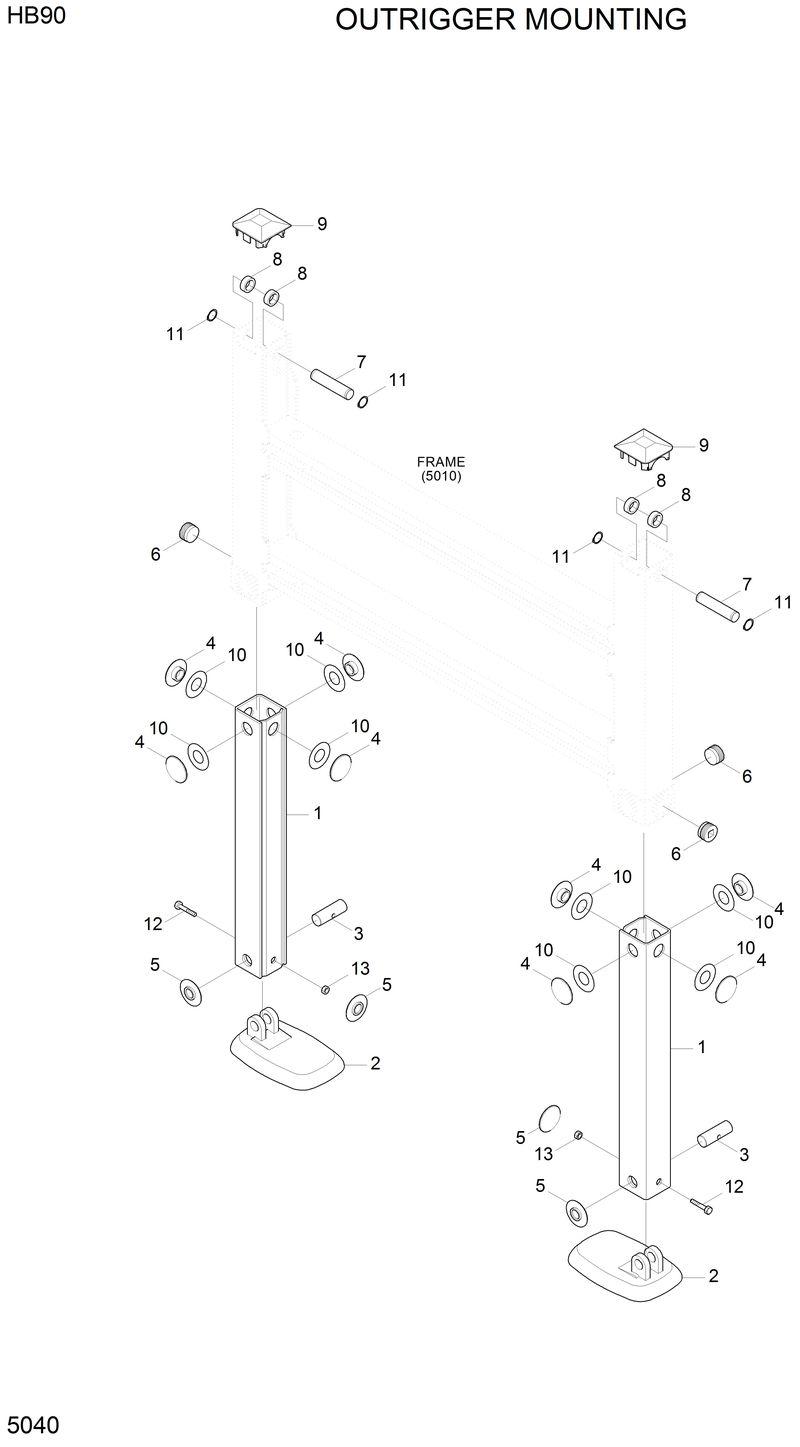

Схема запчастей Hyundai HB90 - OUTRIGGER MOUNTING

Артикул

Название

Примечание

Количество

1

41U2-30011

41U2-30011-Support Wa

10

S391-050100

S391-050100-Shim(1.0t)-Round

11

S601-045004

S601-045004-Ring-Retaining

12

S017-101056

S017-101056-Bolt-Hex

13

S275-100006

S275-100006-Nut-Self Locking

2

41U2-30021

41U2-30021-Foot

3

41U2-30031

41U2-30031-Pin

4

41U2-30041

41U2-30041-Pad-Sliding

5

41U2-30051

41U2-30051-Pad-Sliding

6

41U2-30062

41U2-30062-Pad-Sliding

7

41U2-30090

41U2-30090-Pin

8

41U2-30100

41U2-30100-Collar

9

41U2-30110

41U2-30110-Cover

Выбрано товаров: 13
