Запчасти Hyundai HB90 COOLING SYSTEM

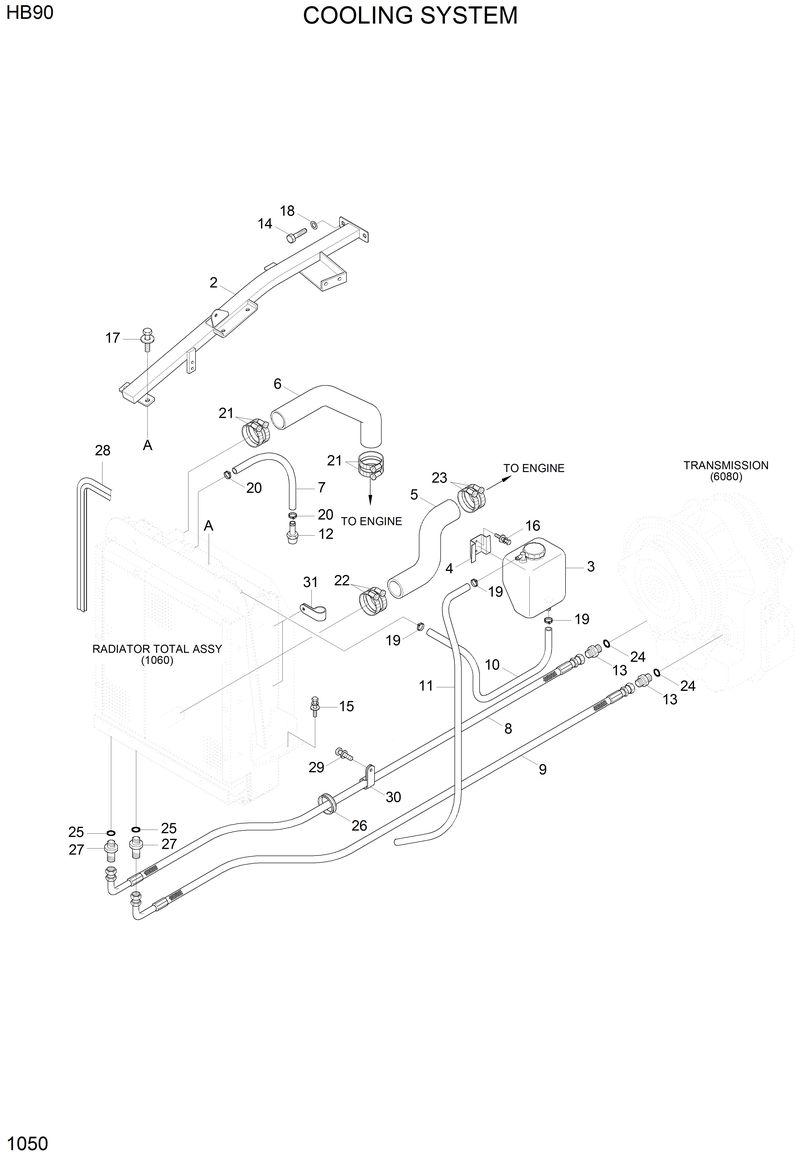

Схема запчастей Hyundai HB90 - COOLING SYSTEM

Артикул

Название

Примечание

Количество

10

11U2-30281

11U2-30281-Hose-Over Flow

11

11U2-30290

11U2-30290-Hose-Over Flow

12

11U2-30350

11U2-30350-Connector

13

11U2-30250

11U2-30250-Connector-Orfs

14

S017-120256

S017-120256-Bolt-Hex

15

S037-123056

S037-123056-Bolt-W/Washer

16

S035-081526

S035-081526-Bolt-W/Washer

17

S037-102556

S037-102556-Bolt-W/Washer

18

S441-120006

S441-120006-Washer-Hardened

19

S520-014000

S520-014000-Clamp-Hose

2

11U2-30323

11U2-30323-Support Wa-Rad

20

S571-180002

S571-180002-Clamp-Hose,Wire Type

21

S572-580006

S572-580006-Clamp-Hose,Wire Type

22

S572-630006

S572-630006-Clamp-Hose,Wire Type

23

S572-730006

S572-730006-Clamp-Hose,Wire Type

24

S611-019001

S611-019001-O-Ring

25

S621-021001

S621-021001-O-Ring

26

S760-100800

S760-100800-Grommet

27

X511-112533

X511-112533-Connector-Long,Orfs

28

S775-019300

S775-019300-Weather Strip

29

S037-081556

S037-081556-Bolt-W/Washer

3

11M8-42300

11M8-42300-Tank-Reservoir

30

31L7-10210

31L7-10210-Clamp-Tube,Ins

31

S543-140002

S543-140002-Clamp-Tube

4

11M8-40240

11M8-40240-Bracket-Reservoir

5

11U2-30182

11U2-30182-Hose-Rubber, Low

6

11U2-30301

11U2-30301-Hose-Rubber, Low

7

P760-011050

P760-011050-Hose-Rubber

8

P933-082026

P933-082026-Hose Assy-Orfs 0x90

9

P933-082028

P933-082028-Hose Assy-Orfs 0x90

Выбрано товаров: 30
