Запчасти Hyundai HB90 MAIN CONTROL VALVE (LOADER)

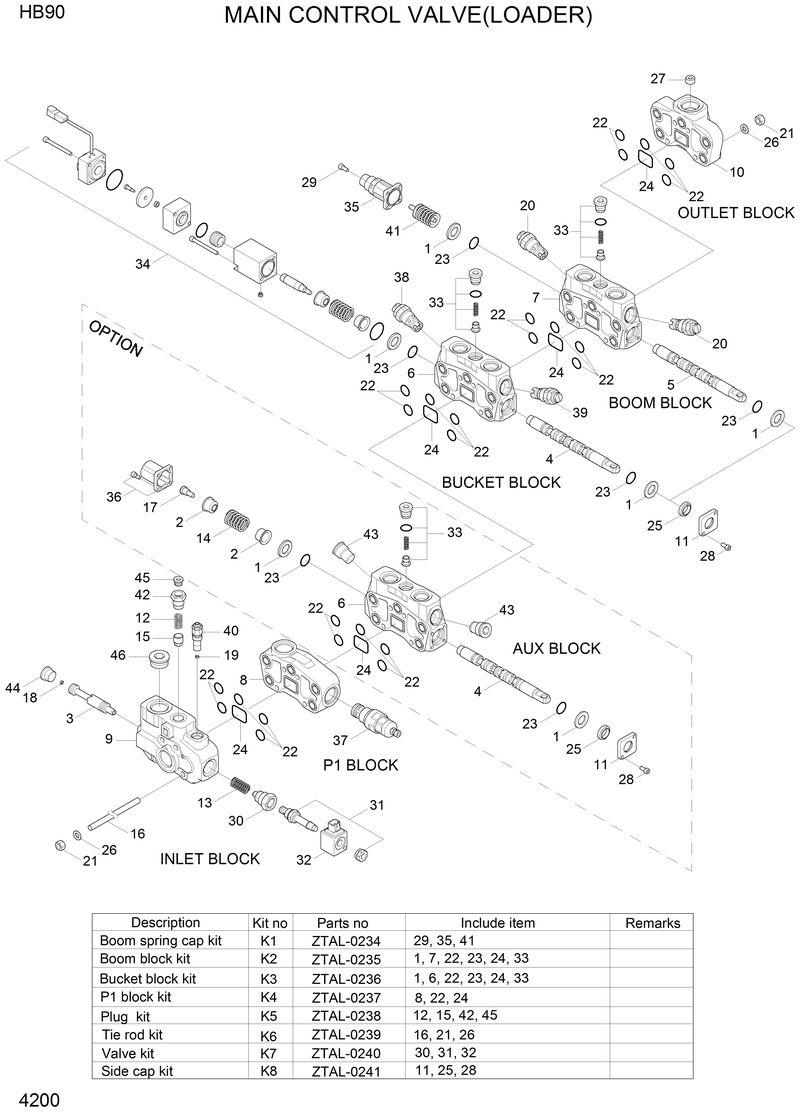

Схема запчастей Hyundai HB90 - MAIN CONTROL VALVE (LOADER)

Артикул

Название

Примечание

Количество

ZTAL-00191

ZTAL-00191-. Vr/Sd16-Fpm Kit

ZTAL-00174

ZTAL-00174-. Flange

ZTAL-00174

ZTAL-00174-. Flange

ZTAL-00186

ZTAL-00186-. Screw-End Cap, Side

ZTAL-00186

ZTAL-00186-. Screw-End Cap, Side

ZTAL-00129

ZTAL-00129-. O-Ring

ZTAL-00184

ZTAL-00184-. Seal

ZTAL-00184

ZTAL-00184-. Seal

ZTAL-00130

ZTAL-00130-. O-Ring

ZTAL-00130

ZTAL-00130-. O-Ring

ZTAL-00183

ZTAL-00183-. O-Ring

ZTAL-00183

ZTAL-00183-. O-Ring

ZTAL-00129

ZTAL-00129-. O-Ring

ZTAL-00191

ZTAL-00191-. Vr/Sd16-Fpm Kit

ZTAL-00164

ZTAL-00164-. Spacer

ZTAL-00164

ZTAL-00164-. Spacer

31U2-10111

31U2-10111-Mcv-3 Spool, Loader

*

31U2-00400

31U2-00400-Mcv-2 Spool, Loader

10

ZTAL-00173

ZTAL-00173-. Outlet Cover

13

ZTAL-00176

ZTAL-00176-. Spring

14

ZTAL-00177

ZTAL-00177-. Spring

17

ZTAL-00180

ZTAL-00180-. Screw

18

ZTAL-00181

ZTAL-00181-. Dowel

19

ZTAL-00182

ZTAL-00182-. Screw

2

ZTAL-00165

ZTAL-00165-. Bush-Control Kit

20

ZTAL-00148

ZTAL-00148-. Relief Valve

27

ZTAL-00185

ZTAL-00185-. Plug-Conical

3

ZTAL-00166

ZTAL-00166-. Spool-Unloader

34

ZTAL-00192

ZTAL-00192-. Valve Kit

36

ZTAL-00194

ZTAL-00194-. Cap Kit

37

ZTAL-00195

ZTAL-00195-. Relief Valve

38

ZTAL-00196

ZTAL-00196-. Relief Valve

39

ZTAL-00197

ZTAL-00197-. Relief Valve

4

ZTAL-00167

ZTAL-00167-. Spool

40

ZTAL-00206

ZTAL-00206-. Relief Valve

43

ZTAL-00201

ZTAL-00201-. Plug With Viton O-Ring

44

ZTAL-00202

ZTAL-00202-. Plug Tcei-Fpm

46

ZTAL-00204

ZTAL-00204-. Plug Tcei-Fpm

5

ZTAL-00168

ZTAL-00168-. Spool

9

ZTAL-00172

ZTAL-00172-. Inlet Cover

K1

ZTAL-00234

ZTAL-00234-Boom Spring Cap Kit

K12

ZTAL-00175

ZTAL-00175-. Spring

K15

ZTAL-00178

ZTAL-00178-. Poppet

K16

ZTAL-00205

ZTAL-00205-. Tie Rod

K2

ZTAL-00235

ZTAL-00235-Boom Block Kit

K21

ZTAL-00137

ZTAL-00137-. Nut

K26

ZTAL-00138

ZTAL-00138-. Spring Washer

K29

ZTAL-00187

ZTAL-00187-. Screw-End Cap, Side

K3

ZTAL-00236

ZTAL-00236-Bucket Block Kit

K30

ZTAL-00188

ZTAL-00188-. Joint-Inlet Cover

K31

ZTAL-00189

ZTAL-00189-. Solenoid Valve

K32

ZTAL-00190

ZTAL-00190-. Body

K35

ZTAL-00193

ZTAL-00193-. Cap

K4

ZTAL-00237

ZTAL-00237-P1 Block Kit

K41

ZTAL-00199

ZTAL-00199-. Spring Kit

K42

ZTAL-00200

ZTAL-00200-. Adapter

K45

ZTAL-00207

ZTAL-00207-. Plug Tcei-Fpm

K5

ZTAL-00238

ZTAL-00238-Plug Kit

K6

ZTAL-00239

ZTAL-00239-Tie Rod Kit

K7

ZTAL-00240

ZTAL-00240-Valve Kit

K8

ZTAL-00241

ZTAL-00241-Side Cap Kit

NK6

ZTAL-00169

ZTAL-00169-. Element

NK7

ZTAL-00170

ZTAL-00170-. Element

NK8

ZTAL-00171

ZTAL-00171-. Element

Выбрано товаров: 64
