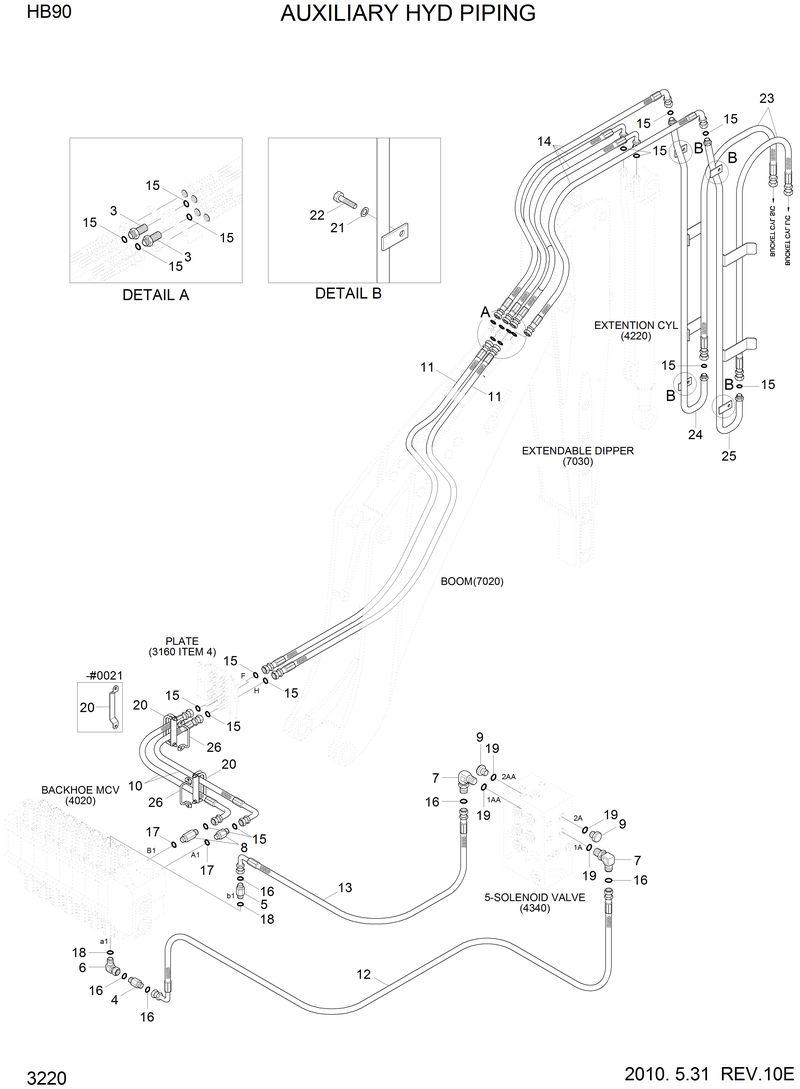

Запчасти Hyundai HB90 AUXILIARY HYD PIPING

S621-014001

S621-014001-O-Ring

P933-086023

P933-086023-Hose Assy-Ofrs 0x90

31U2-30133

31U2-30133-Clamp-Hose

P933-086023

P933-086023-Hose Assy-Ofrs 0x90

S621-014001

S621-014001-O-Ring

10

P933-086031

P933-086031-Hose Assy-Orfs 0x90

11

P913-086056

P913-086056-Hose Assy-Ofrs 0x0

12

P930-042019

P930-042019-Hose Assy-Orfs 0x90

13

P930-042013

P930-042013-Hose Assy-Orfs 0x90

16

S621-011001

S621-011001-O-Ring

17

S611-023001

S611-023001-O-Ring

18

S611-012001

S611-012001-O-Ring

19

S631-011004

S631-011004-O-Ring

20

31U2-30132

31U2-30132-Clamp-Hose

21

S403-10200B

S403-10200B-Washer-Plain

22

S017-100256

S017-100256-Bolt-Hex

23

P913-086022

P913-086022-Hose Assy-Orfs 0x0

24

31U2-91113

31U2-91113-Pipe Wa-Lh

25

31U2-91173

31U2-91173-Pipe Wa-Rh

26

31U2-30191

31U2-30191-Clamp-Hose

3

X540-120003

X540-120003-Connector-Orfs

4

31N4-22190

31N4-22190-Connector

5

31LP-00750

31LP-00750-Connector

6

X520-310001

X520-310001-Elbow-90,Orfs

7

X520-110001

X520-110001-Elbow-90,Orfs

8

31U2-20670

31U2-20670-Connector

9

P220-110102

P220-110102-Plug-Hex
