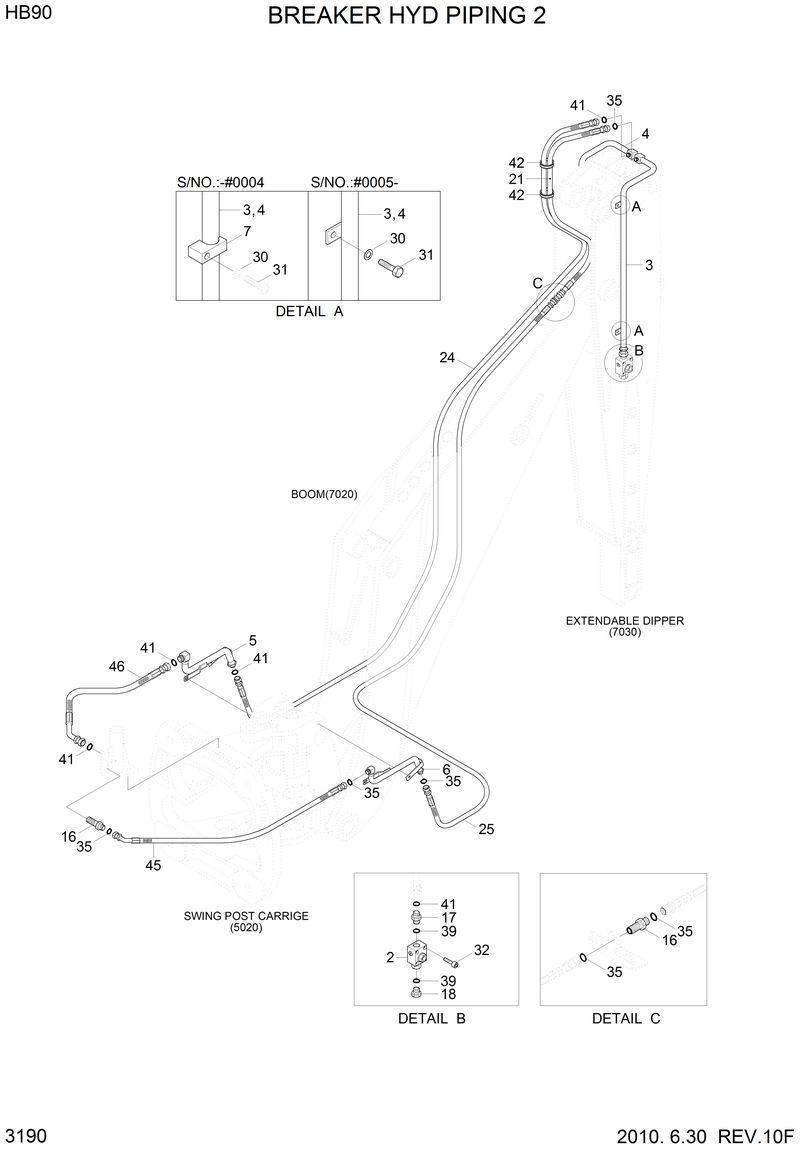

Запчасти Hyundai HB90 BREAKER HYD PIPING 2

31U2-40130

31U2-40130-Pipe Assy-Rh

31U2-40111

31U2-40111-Hose Assy

S109-100556

S109-100556-Bolt-Socket

31U2-40120

31U2-40120-Pipe Assy-Lh

31U2-30516

31U2-30516-Pipe Assy-Lh

31U2-30515

31U2-30515-Pipe Assy-Lh

S017-100206

S017-100206-Bolt-Hex

31U2-30065

31U2-30065-Pipe Assy-Rh

31U2-30066

31U2-30066-Pipe Assy-Rh

16

X540-120003

X540-120003-Connector-Orfs

17

X500-110004

X500-110004-Connector-Orfs

18

P220-110105

P220-110105-Plug-Hex

2

31Q4-97010

31Q4-97010-Stop Valve Assy

21

P913-086021

P913-086021-Hose Assy-Orfs 0x0

24

P913-122073

P913-122073-Hose Assy-Orfs 0x0

25

P913-086055

P913-086055-Hose Assy-Orfs 0x0

3

31U2-30064

31U2-30064-Pipe Assy-Rh

30

S441-10000B

S441-10000B-Washer-Hardened

31

S017-100556

S017-100556-Bolt-Hex

32

S107-100556

S107-100556-Bolt-Socket

35

S621-014001

S621-014001-O-Ring

39

S631-024004

S631-024004-O-Ring

4

31U2-30514

31U2-30514-Pipe Assy-Lh

41

S621-018001

S621-018001-O-Ring

42

S760-060806

S760-060806-Grommet

45

31U2-40110

31U2-40110-Hose Assy

46

31U2-40100

31U2-40100-Hose Assy

5

31U2-40016

31U2-40016-Pipe Wa

6

31U2-40045

31U2-40045-Pipe Wa

7

S581-272000

S581-272000-Clamp-Pipe
