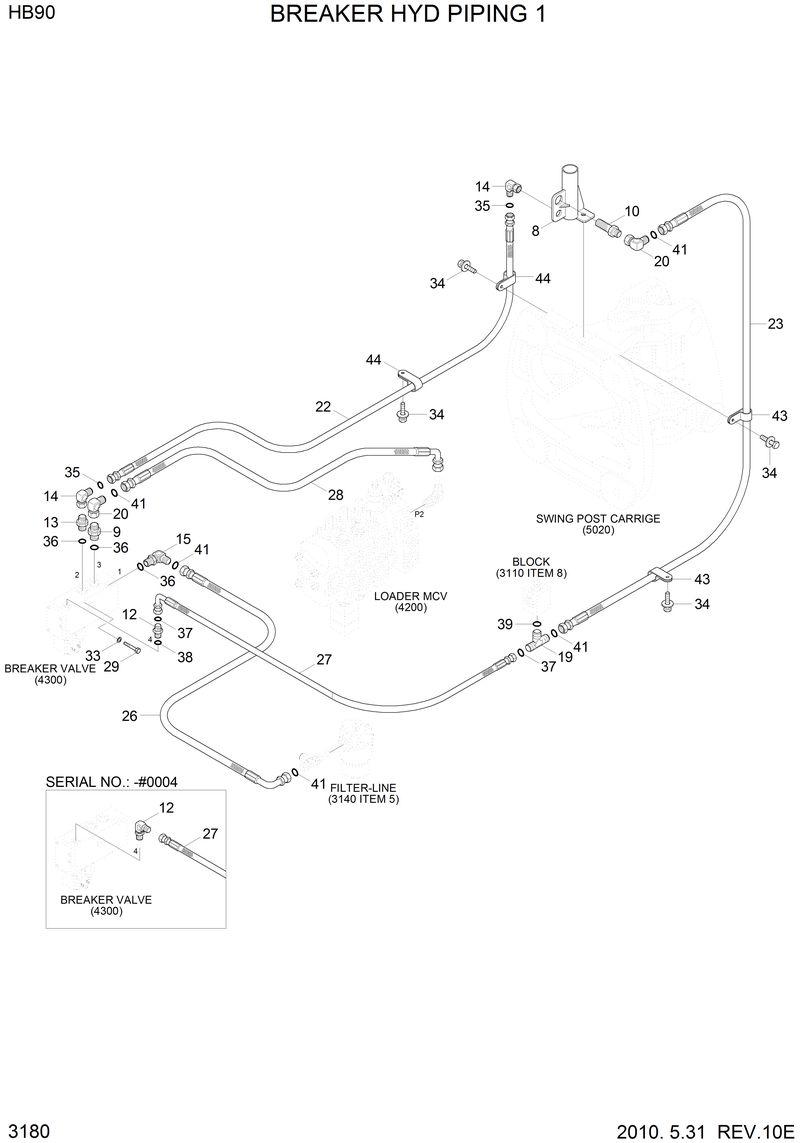

Запчасти Hyundai HB90 BREAKER HYD PIPING 1

P930-062019

P930-062019-Hose Assy-Orfs 0x90

X500-110011

X500-110011-Connector-Orfs

P920-126014

P920-126014-Hose Assy-Orfs 0x45

31U2-40140

31U2-40140-Hose Assy

S035-081556

S035-081556-Bolt-W/Washer

10

X540-120004

X540-120004-Connector-Orfs

12

X520-110011

X520-110011-Elbow-90,Orfs

13

X500-110003

X500-110003-Connector-Orfs

14

X850-535300

X850-535300-Elbow-90,Swivel,Orfs

15

X520-110015

X520-110015-Elbow-90,Orfs

19

X810-125254

X810-125254-Tee-B/Type,Orfs

20

X850-545400

X850-545400-Elbow-90,Swivel,Orfs

22

P913-086064

P913-086064-Hose Assy-Orfs 0x0

23

P913-122051

P913-122051-Hose Assy-Orfs 0x0

26

P930-126017

P930-126017-Hose Assy-Orfs 0x90

27

P920-062019

P920-062019-Hose Assy-Orfs 0x45

28

P920-126012

P920-126012-Hose Assy-Orfs 0x45

29

S015-080656

S015-080656-Bolt-Hex

33

S441-08000B

S441-08000B-Washer-Hardened

34

S035-082056

S035-082056-Bolt-W/Washer

35

S621-014001

S621-014001-O-Ring

36

S631-018004

S631-018004-O-Ring

37

S621-012001

S621-012001-O-Ring

38

S631-011004

S631-011004-O-Ring

39

S631-024004

S631-024004-O-Ring

41

S621-018001

S621-018001-O-Ring

43

31L7-10230

31L7-10230-Clamp

44

31L7-10220

31L7-10220-Clamp-Tube

8

31U2-90072

31U2-90072-Plate Wa

9

X500-110014

X500-110014-Connector-Orfs
