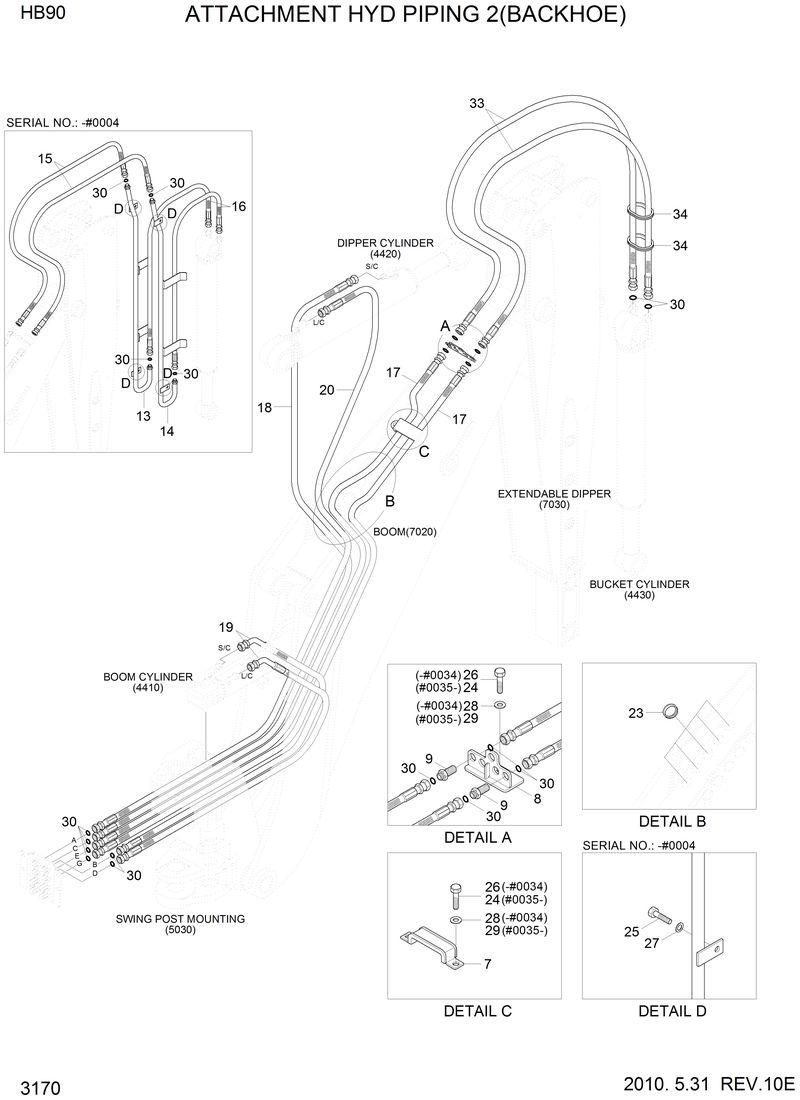

Запчасти Hyundai HB90 ATTACHMENT HYD PIPING 2 (BACKHOE)

31U2-30574

31U2-30574-Bracket-Hose Joint

S403-10200B

S403-10200B-Washer-Plain

S403-10200B

S403-10200B-Washer-Plain

P913-086037

P913-086037-Hose Assy-Orfs 0x0

31U2-30561

31U2-30561-Clamp-Hose

13

31U2-91113

31U2-91113-Pipe Wa-Lh

14

31U2-91173

31U2-91173-Pipe Wa-Rh

15

P933-086023

P933-086023-Hose Assy-Ofrs 0x90

16

P913-086022

P913-086022-Hose Assy-Orfs 0x0

17

P913-086056

P913-086056-Hose Assy-Ofrs 0x0

18

P913-086054

P913-086054-Hose Assy-Ofrs 0x0

19

P923-086022

P923-086022-Hose Assy-Orfs 0x45

20

P913-086051

P913-086051-Hose Assy-Ofrs 0x0

23

S681-460800

S681-460800-Grommet

24

S017-120306

S017-120306-Bolt-Hex

25

S017-100256

S017-100256-Bolt-Hex

26

S017-140306

S017-140306-Bolt-Hex

28

S441-140006

S441-140006-Washer-Hardened

29

S441-12000B

S441-12000B-Washer-Hardened

30

S621-014001

S621-014001-O-Ring

33

P913-086035

P913-086035-Hose Assy-Orfs 0x0

34

S760-060806

S760-060806-Grommet

7

31U2-30560

31U2-30560-Clamp-Hose

8

31U2-30573

31U2-30573-Bracket-Hose Joint

9

X540-120003

X540-120003-Connector-Orfs
