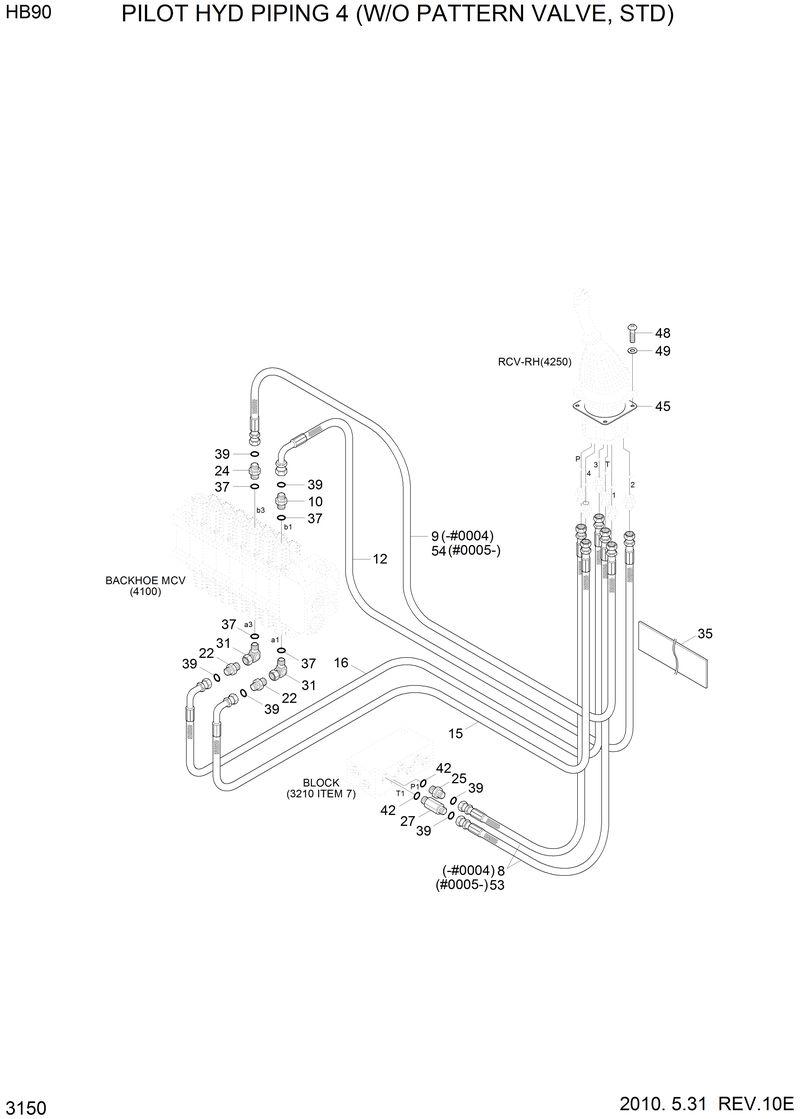

Запчасти Hyundai HB90 PILOT HYD PIPING 4 (W/O PATTERN VALVE)

P930-042021

P930-042021-Hose Assy-Orfs 0x90

P910-042016

P910-042016-Hose Assy-Orfs 0x0

34E7-03140

34E7-03140-Grommet

12

P930-042016

P930-042016-Hose Assy-Orfs 0x90

15

P930-042027

P930-042027-Hose Assy-Orfs 0x90

22

31N4-22190

31N4-22190-Connector

24

31S7-00750

31S7-00750-Connector

25

X500-110001

X500-110001-Connector-Orfs

27

31N8-40100

31N8-40100-Connector-Long,Orfs

31

X520-310001

X520-310001-Elbow-90,Orfs

35

S791-100016

S791-100016-Grommet-Plate

37

S611-012001

S611-012001-O-Ring

39

S621-011001

S621-011001-O-Ring

42

S631-011004

S631-011004-O-Ring

45

31M6-51061

31M6-51061-Shim(3.2t)

48

S175-060256

S175-060256-Screw-Socket Rd Hd

49

S403-06200B

S403-06200B-Washer-Plain

53

P910-042014

P910-042014-Hose Assy-Orfs 0x0

54

P910-042018

P910-042018-Hose Assy-Orfs 0x0

54

P910-042018

P910-042018-Hose Assy-Orfs 0x0

9

P910-042023

P910-042023-Hose Assy-Orfs 0x0
