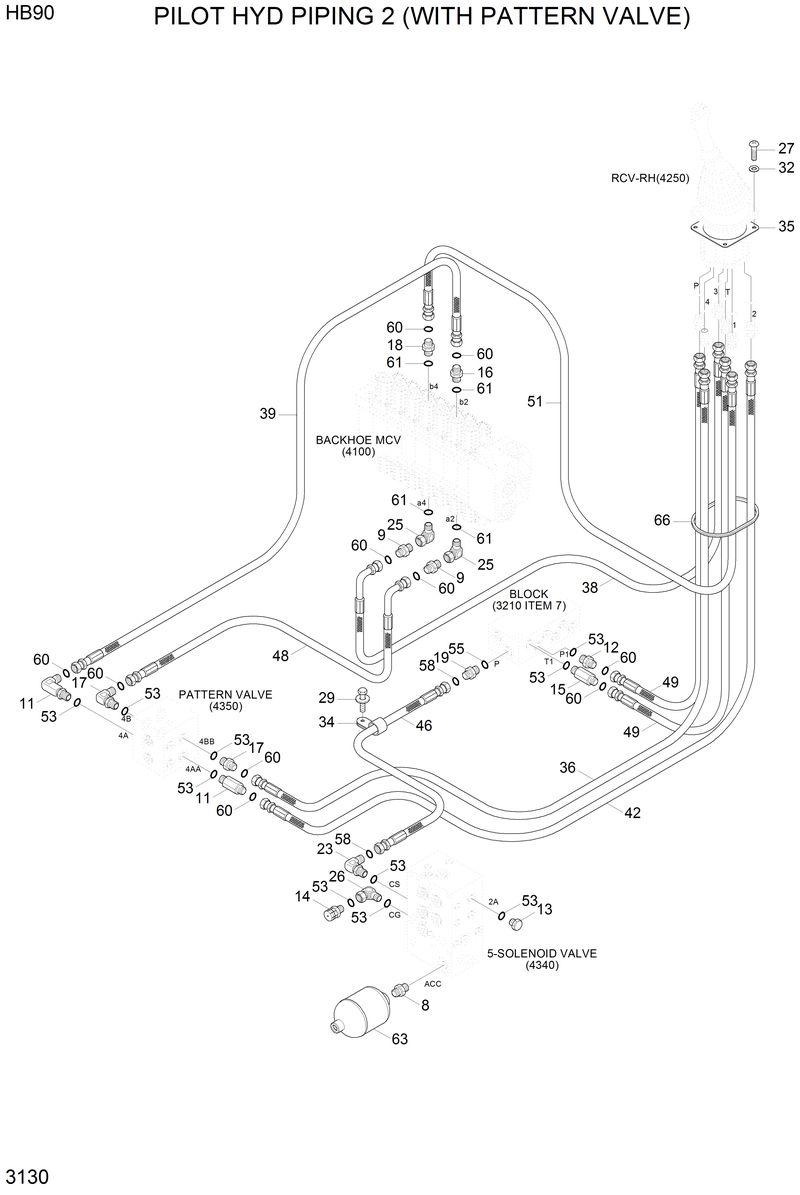

Запчасти Hyundai HB90 PILOT HYD PIPING 2 (WITH PATTERN VALVE)

11

31N6-25110

31N6-25110-Elbow-90,Orfs,Long

12

X500-110001

X500-110001-Connector-Orfs

13

P220-110102

P220-110102-Plug-Hex

14

31EK-11130

31EK-11130-Coupling-Screw

15

31N8-40100

31N8-40100-Connector-Long,Orfs

16

31LP-00750

31LP-00750-Connector

17

X520-110001

X520-110001-Elbow-90,Orfs

18

31S7-00750

31S7-00750-Connector

19

X500-110002

X500-110002-Connector-Orfs

23

X500-110011

X500-110011-Connector-Orfs

25

X520-310001

X520-310001-Elbow-90,Orfs

26

31E5-11110

31E5-11110-Adapter

27

S175-060256

S175-060256-Screw-Socket Rd Hd

29

S035-082056

S035-082056-Bolt-W/Washer

32

S403-06200B

S403-06200B-Washer-Plain

34

31L7-10240

31L7-10240-Clamp-Tube

35

31M6-51061

31M6-51061-Shim(3.2t)

36

P910-042026

P910-042026-Hose Assy-Orfs 0x0

38

P930-042028

P930-042028-Hose Assy-Orfs 0x90

39

P930-042016

P930-042016-Hose Assy-Orfs 0x90

42

P910-042029

P910-042029-Hose Assy-Orfs 0x0

46

P930-064014

P930-064014-Hose Assy-Orfs 0x90

48

P930-042021

P930-042021-Hose Assy-Orfs 0x90

49

P910-042016

P910-042016-Hose Assy-Orfs 0x0

51

P910-042023

P910-042023-Hose Assy-Orfs 0x0

53

S631-011004

S631-011004-O-Ring

55

S631-014004

S631-014004-O-Ring

58

S621-012001

S621-012001-O-Ring

60

S621-011001

S621-011001-O-Ring

61

S611-012001

S611-012001-O-Ring

63

31E3-3187

31E3-3187-Accumulator

66

S791-100016

S791-100016-Grommet-Plate

8

31N6-24200

31N6-24200-Connector

9

31N4-22190

31N4-22190-Connector
