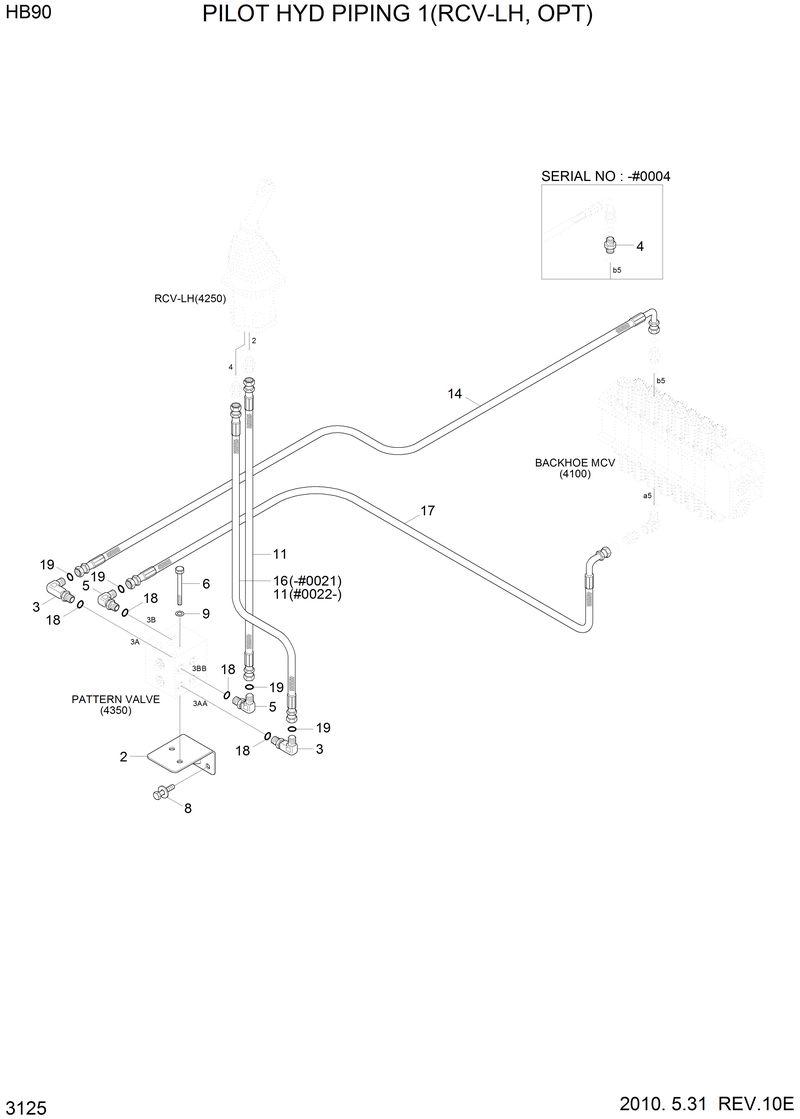

Запчасти Hyundai HB90 PILOT HYD PIPING 1 (RCV-LH, OPT)

P910-042028

P910-042028-Hose Assy-Orfs 0x0

11

P910-042026

P910-042026-Hose Assy-Orfs 0x0

14

P930-042015

P930-042015-Hose Assy-Orfs 0x90

16

P910-042027

P910-042027-Hose Assy-Orfs 0x0

17

P930-042020

P930-042020-Hose Assy-Orfs 0x90

18

S631-011004

S631-011004-O-Ring

19

S621-011001

S621-011001-O-Ring

2

31U2-10352

31U2-10352-Plate

3

31N6-25110

31N6-25110-Elbow-90,Orfs,Long

4

31LP-00750

31LP-00750-Connector

5

X520-110001

X520-110001-Elbow-90,Orfs

6

S015-081206

S015-081206-Bolt-Hex

8

S037-122556

S037-122556-Bolt-W/Washer

9

S441-08000B

S441-08000B-Washer-Hardened
