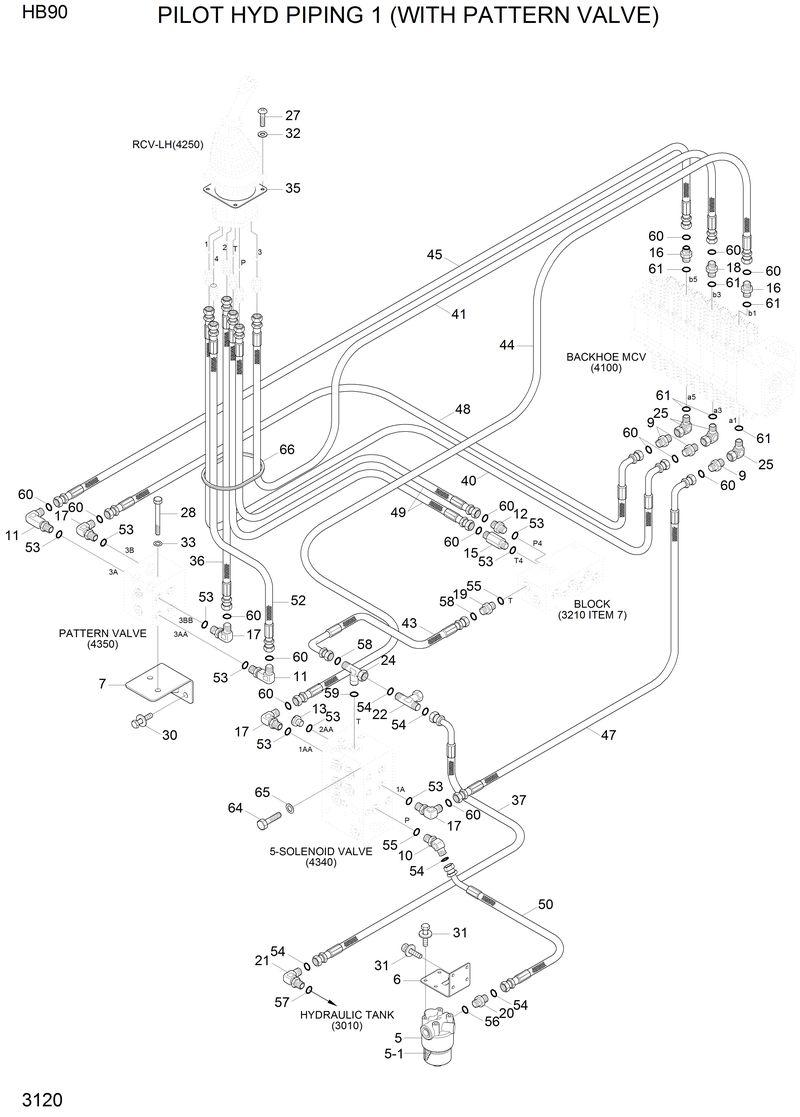

Запчасти Hyundai HB90 PILOT HYD PIPING 1 (WITH PATTERN VALVE)

10

X530-110013

X530-110013-Elbow-45,Orfs

11

31N6-25110

31N6-25110-Elbow-90,Orfs,Long

12

X500-110001

X500-110001-Connector-Orfs

13

P220-110102

P220-110102-Plug-Hex

15

31N8-40100

31N8-40100-Connector-Long,Orfs

16

31LP-00750

31LP-00750-Connector

17

X520-110001

X520-110001-Elbow-90,Orfs

18

31S7-00750

31S7-00750-Connector

19

X500-110002

X500-110002-Connector-Orfs

20

X500-310003

X500-310003-Connector-Orfs

21

X520-110016

X520-110016-Elbow-90,Orfs

22

X840-535153

X840-535153-Tee-R/Type,Swivel,Orfs

24

X810-085253

X810-085253-Tee-B/Type,Orfs

25

X520-310001

X520-310001-Elbow-90,Orfs

27

S175-060256

S175-060256-Screw-Socket Rd Hd

28

S015-081206

S015-081206-Bolt-Hex

30

S037-122556

S037-122556-Bolt-W/Washer

31

S037-102056

S037-102056-Bolt-W/Washer

32

S403-06200B

S403-06200B-Washer-Plain

33

S441-08000B

S441-08000B-Washer-Hardened

35

31M6-51061

31M6-51061-Shim(3.2t)

36

P910-042026

P910-042026-Hose Assy-Orfs 0x0

37

P930-082034

P930-082034-Hose Assy-Orfs 0x90

40

P930-042024

P930-042024-Hose Assy-Orfs 0x90

41

P910-042028

P910-042028-Hose Assy-Orfs 0x0

43

P930-062011

P930-062011-Hose Assy-Orfs 0x90

44

P930-042013

P930-042013-Hose Assy-Orfs 0x90

45

P930-042015

P930-042015-Hose Assy-Orfs 0x90

47

P930-042019

P930-042019-Hose Assy-Orfs 0x90

48

P930-042021

P930-042021-Hose Assy-Orfs 0x90

49

P910-042016

P910-042016-Hose Assy-Orfs 0x0

5

31U2-10610

31U2-10610-Filter-Line

5-1

31LM-10310

31LM-10310-. Filter Element

50

P920-086012

P920-086012-Hose Assy-Orfs 0x45

52

P910-042027

P910-042027-Hose Assy-Orfs 0x0

53

S631-011004

S631-011004-O-Ring

54

S621-014001

S621-014001-O-Ring

55

S631-014004

S631-014004-O-Ring

56

S611-016001

S611-016001-O-Ring

57

S631-024004

S631-024004-O-Ring

58

S621-012001

S621-012001-O-Ring

59

S631-018004

S631-018004-O-Ring

6

31U2-10081

31U2-10081-Plate Wa

60

S621-011001

S621-011001-O-Ring

61

S611-012001

S611-012001-O-Ring

64

S017-101056

S017-101056-Bolt-Hex

65

S441-10000B

S441-10000B-Washer-Hardened

66

S791-100016

S791-100016-Grommet-Plate

7

31U2-10352

31U2-10352-Plate

9

31N4-22190

31N4-22190-Connector
