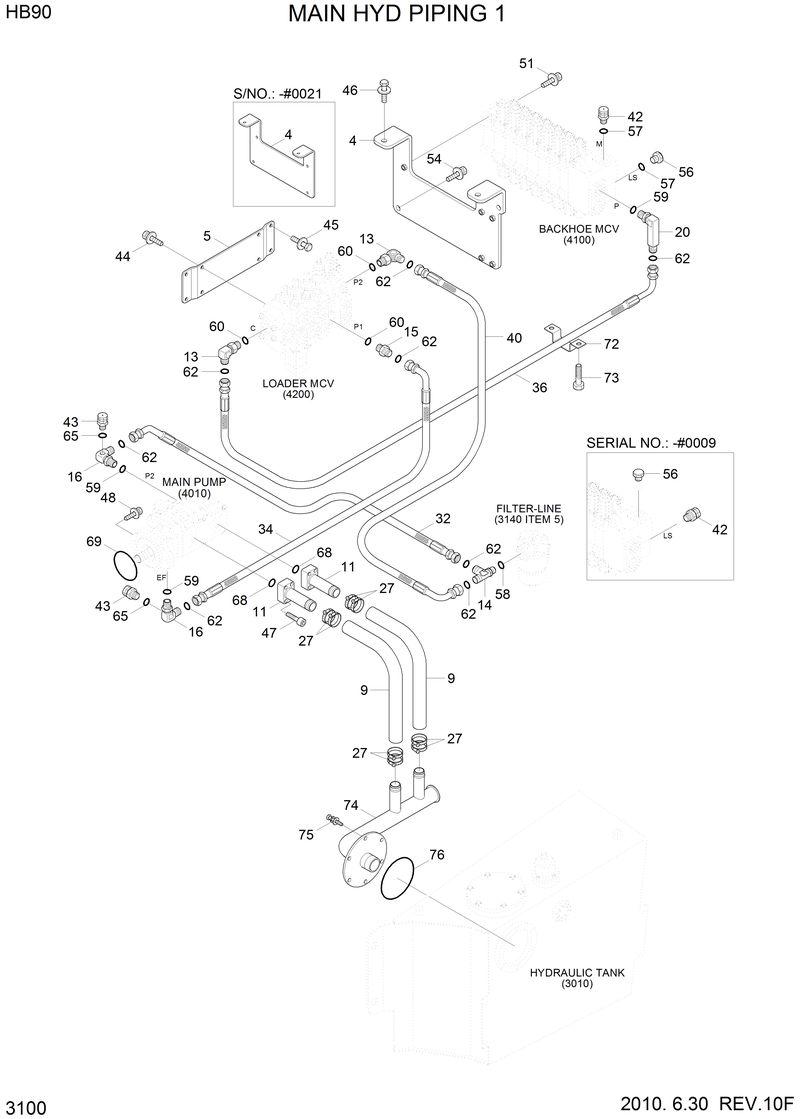

Запчасти Hyundai HB90 MAIN HYD PIPING 1

31U2-00252

31U2-00252-Hose

31U2-00062

31U2-00062-Plate Wa

31U2-00063

31U2-00063-Plate Wa

S572-460006

S572-460006-Clamp-Hose,Wire Type

11

31U2-00090

31U2-00090-Pipe Wa

13

31U2-00220

31U2-00220-Elbow-90, Long Hex

14

31U2-10320

31U2-10320-Tee-R/Type,Orfs

15

31S7-00370

31S7-00370-Connector-Long

16

31S7-00530

31S7-00530-Elbow-90

20

31S7-00660

31S7-00660-Elbow-90

27

S572-490006

S572-490006-Clamp-Hose,Wire Type

32

P920-126008

P920-126008-Hose Assy-Orfs 0x45

34

P930-127009

P930-127009-Hose Assy-Orfs 0x90

36

P933-127036

P933-127036-Hose Assy-Orfs 0x90

4

31U2-00061

31U2-00061-Plate Wa

40

P930-126017

P930-126017-Hose Assy-Orfs 0x90

42

31HF-20090

31HF-20090-Coupling-Screw

43

31EK-11130

31EK-11130-Coupling-Screw

44

S037-102056

S037-102056-Bolt-W/Washer

45

S037-122556

S037-122556-Bolt-W/Washer

46

S037-123056

S037-123056-Bolt-W/Washer

47

S109-100406

S109-100406-Bolt-Socket

48

S037-123556

S037-123556-Bolt-W/Washer

5

31U2-00053

31U2-00053-Plate

51

S037-104056

S037-104056-Bolt-W/Washer

54

S037-124556

S037-124556-Bolt-W/Washer

56

P220-310102

P220-310102-Plug-Hex

57

S611-012001

S611-012001-O-Ring

58

S611-016001

S611-016001-O-Ring

59

S611-023001

S611-023001-O-Ring

60

S611-030001

S611-030001-O-Ring

62

S621-018001

S621-018001-O-Ring

65

S631-011004

S631-011004-O-Ring

68

Y171-024004

Y171-024004-O-Ring

69

Y172-020004

Y172-020004-O-Ring

72

6600362800

6600362800-Clamp-Hose

73

S015-080156

S015-080156-Bolt-Hex

74

31U2-60203

31U2-60203-Pipe Wa

75

S037-102026

S037-102026-Bolt-W/Washer

76

S632-140001

S632-140001-O-Ring

9

31U2-00251

31U2-00251-Hose
