Запчасти Hyundai HB90 MCV LEVER (LOADER, 2-SPOOL)

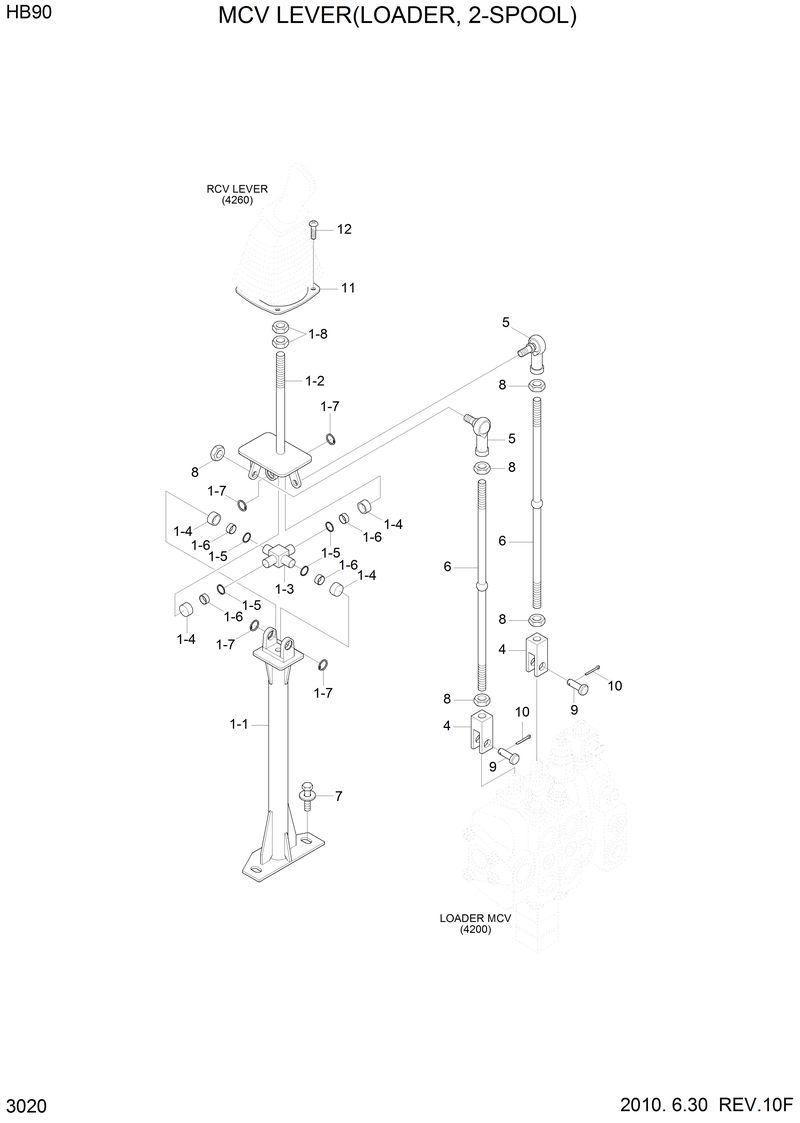

Схема запчастей Hyundai HB90 - MCV LEVER (LOADER, 2-SPOOL)

Артикул

Название

Примечание

Количество

31U2-10801

31U2-10801-Rcv Lever Sub Assy

S501-100002

S501-100002-Pin-Self Locking

31U2-10146

31U2-10146-. Lever Wa

31U2-10093

31U2-10093-. Plate Assy

S205-101006

S205-101006-Nut-Hex

S205-101006

S205-101006-Nut-Hex

1

31U2-10800

31U2-10800-Rcv Lever Sub Assy

1-2

31U2-10800

31U2-10800-. Rcv Lever Sub Assy

1-2

31U2-10800

31U2-10800-. Rcv Lever Sub Assy

1-3

31U2-10941

31U2-10941-. Shaft

1-4

31U2-10231

31U2-10231-. Boss

1-5

31U2-10290

31U2-10290-. Rubber

1-6

S731-010007

S731-010007-. Bushing-Du

1-7

S602-017006

S602-017006-. Ring-Retaining

1-8

S205-14100B

S205-14100B-. Nut-Hex

10

S461-320202

S461-320202-Pin-Split

11

31U2-10791

31U2-10791-Plate

12

S002-06015B

S002-06015B-Screw-Trus Head

4

31U2-10200

31U2-10200-Rod End

5

S926-111000

S926-111000-End-Rod

6

31U2-10571

31U2-10571-Rod

7

S037-122556

S037-122556-Bolt-W/Washer

9

S491-100302

S491-100302-Pin-Clevis

Выбрано товаров: 23
