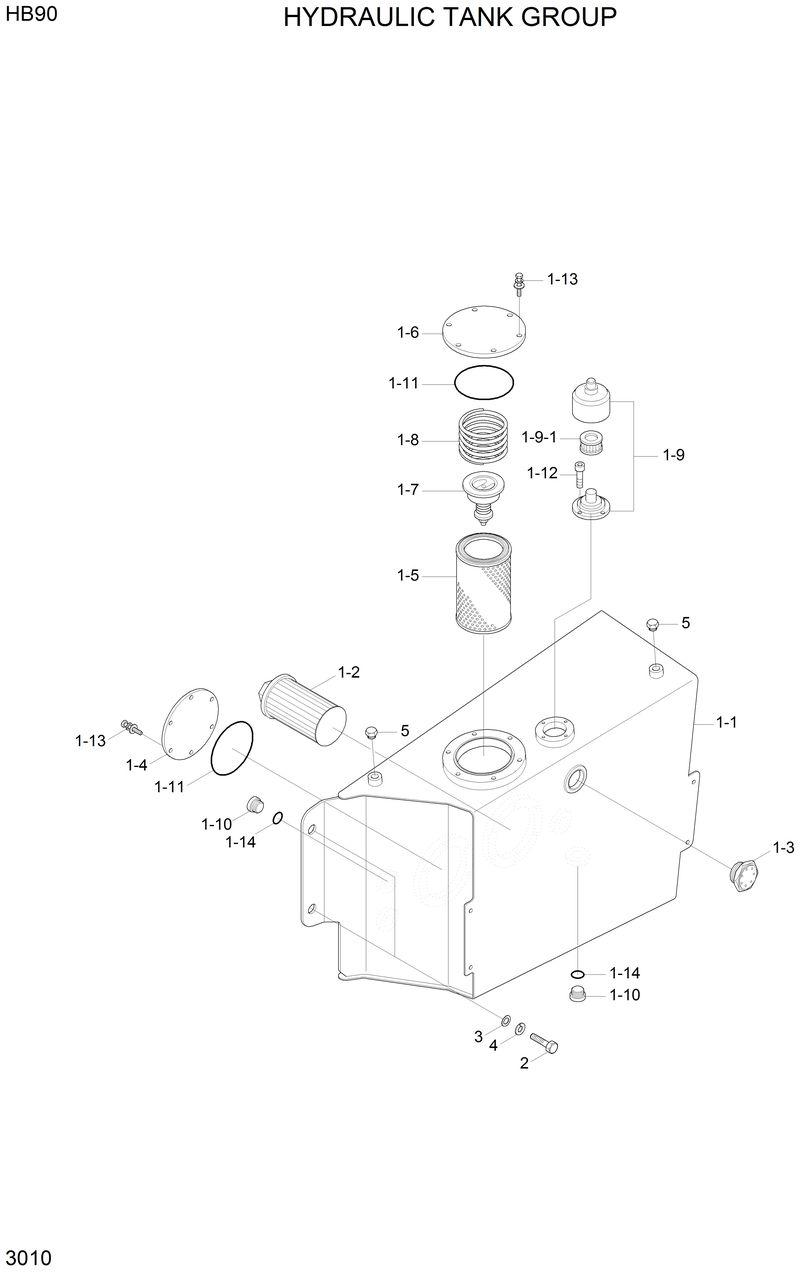

Запчасти Hyundai HB90 HYDRAULIC TANK GROUP

1

31U2-60012

31U2-60012-Hyd Tank Assy

1-1

31U2-60022

31U2-60022-. Hyd Tank Wa

1-10

P220-110205

P220-110205-. Plug-Hex

1-11

S632-140001

S632-140001-. O-Ring

1-12

S109-060156

S109-060156-. Bolt-Socket

1-13

S037-102026

S037-102026-. Bolt-W/Washer

1-14

S631-024004

S631-024004-. O-Ring

1-2

31S7-40050

31S7-40050-. Suction Strainer

1-3

31M6-52140

31M6-52140-. Sight Gauge Assy

1-4

31U2-60181

31U2-60181-. Cover

1-5

31U2-60190

31U2-60190-. Element

1-6

31U2-60300

31U2-60300-. Cover

1-7

31M5-00240

31M5-00240-. Valve-Bypass

1-8

E131-0220

E131-0220-. Spring

1-9

31EE-02100

31EE-02100-. Air Breather

1-9-1

31EE-02110

31EE-02110-.. Element

2

S017-16045D

S017-16045D-Bolt-Hex

3

S441-160006

S441-160006-Washer-Hardened

4

S411-160006

S411-160006-Washer-Spring

5

S981-121500

S981-121500-Plug
