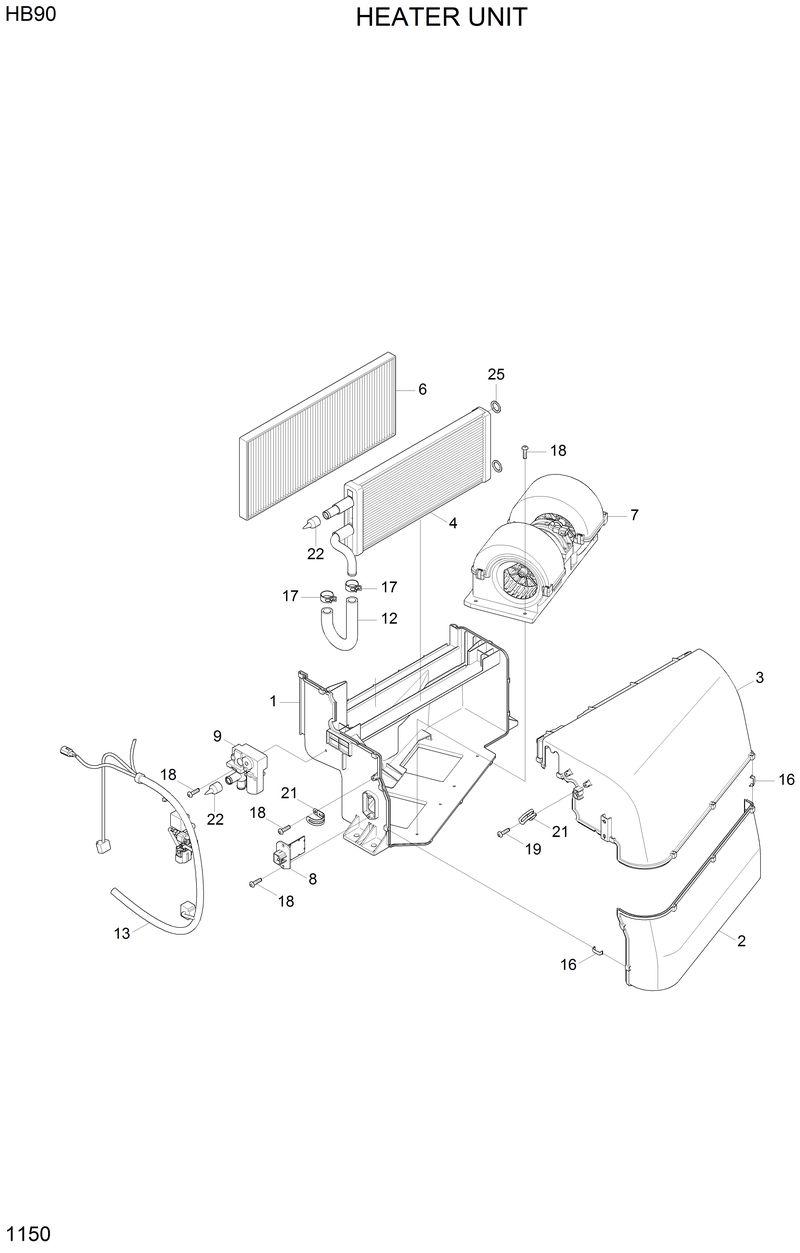

Запчасти Hyundai HB90 HEATER UNIT

*

11U2-90061

11U2-90061-Heater Unit

1

C02136D0

C02136D0-. Lower Case

12

D74238F0

D74238F0-. Rubber Hose-Water

16

G30006K2

G30006K2-. Case Clip

17

G33100C0

G33100C0-. Hose Clip

19

@

@-. Screw-Tapping

19

@

@-. Screw-Tapping

2

C02137D0

C02137D0-. Upper Case-Rh

22

G30198C0

G30198C0-. Harness Clip

22

G30198C0

G30198C0-. Harness Clip

25

G59109F0

G59109F0-. Grommet-H/T Core

3

C02138D0

C02138D0-. Upper Case-Lh

4

B00087A0

B00087A0-. Heater Core Assy

6

11U2-90180

11U2-90180-. Filter-Rec Air

7

M7010

M7010-. Blower Uint

8

C90133G0

C90133G0-. Resistor Assy

9

C30104E0

C30104E0-. Water Valve Assy

N13

C95113G0

C95113G0-. Wire Harness Assy
