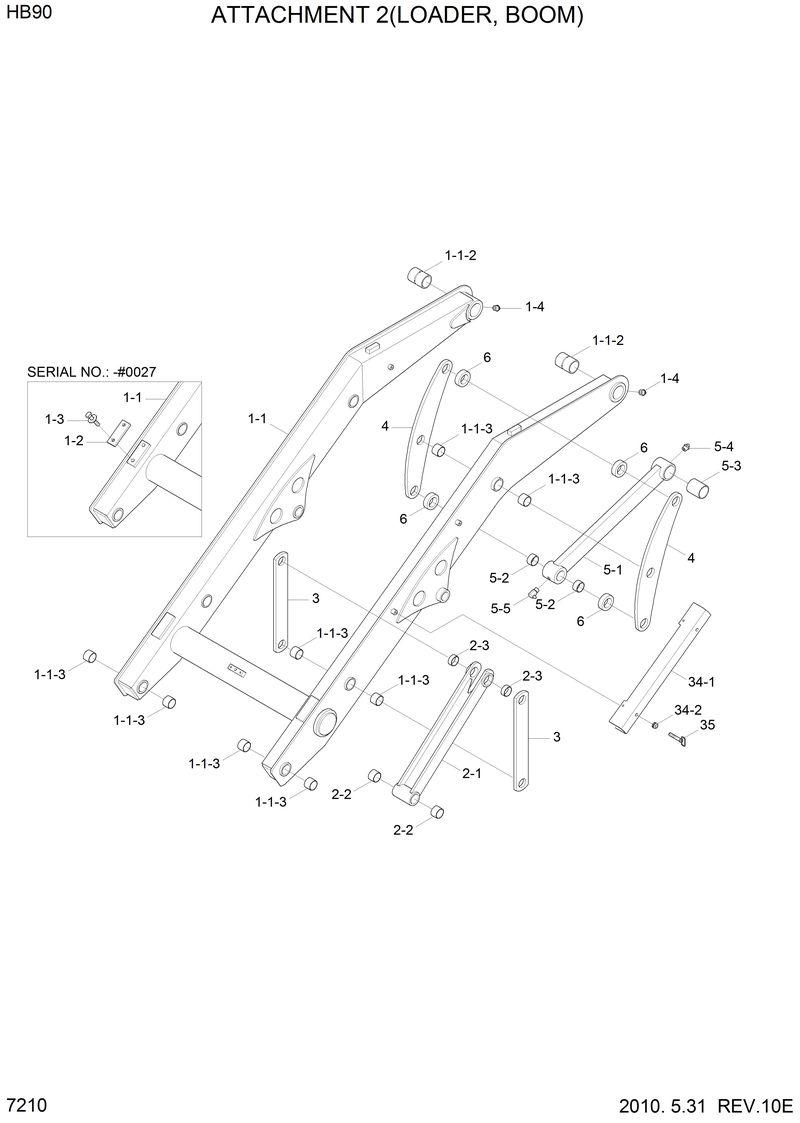

Запчасти Hyundai HB90 ATTACHMENT 2(LOADER, BOOM)

61U2-10023

61U2-10023-. Boom Wa

1

61U2-10012

61U2-10012-Boom Assy

1-1

61U2-10022

61U2-10022-. Boom Wa

1-1-2

61U2-10251

61U2-10251-.. Bushing-Bronze

1-1-3

61U2-10370

61U2-10370-.. Bushing

1-2

61U2-10110

61U2-10110-. Stopper

1-3

S037-102556

S037-102556-. Bolt-W/Washer

2

61U2-10312

61U2-10312-Link Assy

2-1

61U2-10322

61U2-10322-. Link Wa

2-2

61U2-10370

61U2-10370-. Bushing

2-3

61U2-10380

61U2-10380-. Bushing

3

61U2-10402

61U2-10402-Link

34

61U2-10770

61U2-10770-Bracket-Boom Lock

34-1

61U2-10781

61U2-10781-. Bracket Wa

34-2

S681-100800

S681-100800-. Grommet

35

61U3-10790

61U3-10790-Bolt-Lock

4

61U2-10422

61U2-10422-Link

5

61U2-10512

61U2-10512-Link Assy

5-1

61U2-10522

61U2-10522-. Link Wa

5-2

61U2-10560

61U2-10560-. Bushing

5-3

61U2-10570

61U2-10570-. Bushing

5-4

S651-810002

S651-810002-. Nipple-Grease

5-4

S651-810002

S651-810002-. Nipple-Grease

5-5

S653-810002

S653-810002-. Nipple-Grease

6

61U2-10580

61U2-10580-Spacer
