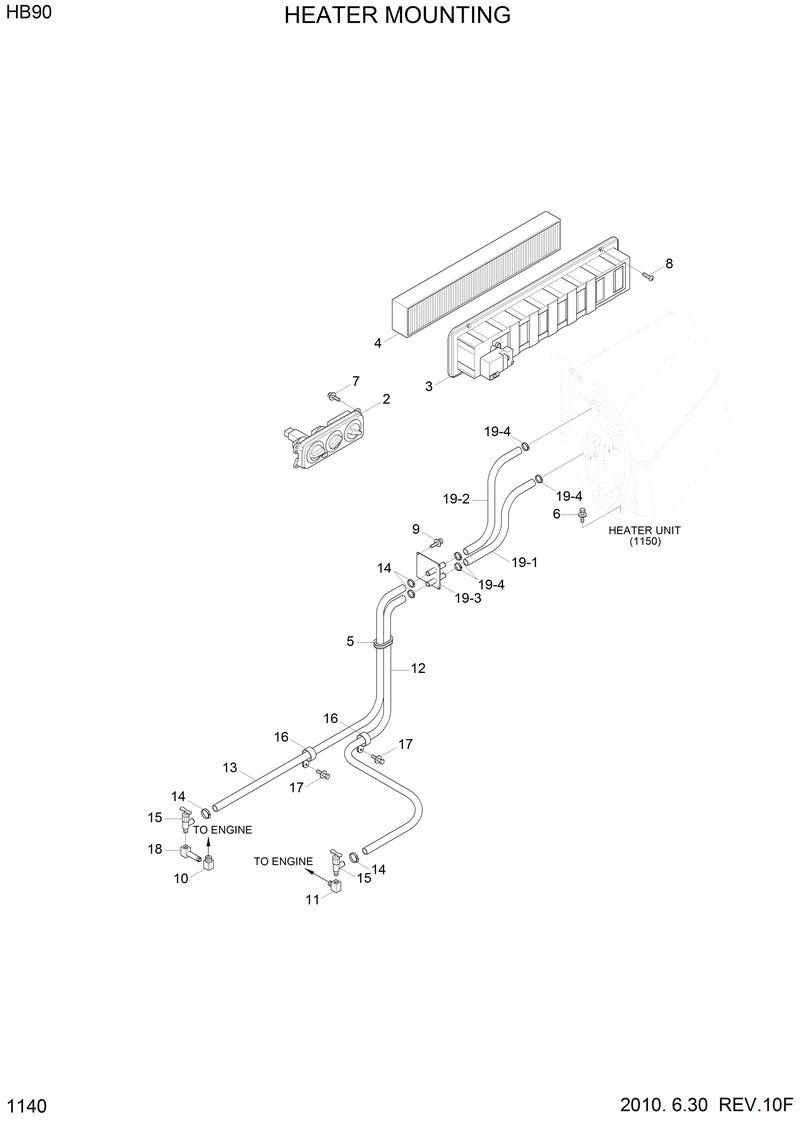

Запчасти Hyundai HB90 HEATER MOUNTING

11U2-90321

11U2-90321-. Hose-Heater,Inlet

11U2-90391

11U2-90391-Hose Coupler Assy

S520-027000

S520-027000-Clamp-Hose,Screw Type

10

11U2-90200

11U2-90200-Connector-Heat Valve

11

11U2-90210

11U2-90210-Connector-Heat Valve

12

11U2-90231

11U2-90231-Hose-Heater

13

11U2-90241

11U2-90241-Hose-Heater

14

S572-270006

S572-270006-Clamp-Hose,Wire Type

15

E127-3136

E127-3136-Valve-Cut Off

16

31L7-10240

31L7-10240-Clamp-Tube

17

S037-081556

S037-081556-Bolt-W/Washer

18

11U2-90250

11U2-90250-Connector-Heat Valve

19

11U2-90390

11U2-90390-Hose Coupler Assy

19-1

11U2-90320

11U2-90320-. Hose-Heater,Inlet

19-2

11U2-90330

11U2-90330-. Hose-Heater,Outlet

19-4

11U2-90420

11U2-90420-. Clamp- Heater Hose

2

11U2-90080

11U2-90080-Control Assy(H/T Only)

3

11U2-90130

11U2-90130-Duct Inlet Assy

4

11U2-90170

11U2-90170-Filter-Fresh Air

5

11U2-90350

11U2-90350-Grommet

6

S035-082556

S035-082556-Bolt-W/Washer

7

S131-052046

S131-052046-Screw-W/Washer

8

S161-060156

S161-060156-Screw-Cross R/Round

9

S035-061556

S035-061556-Bolt-W/Washer

N19-3

11U2-90440

11U2-90440-. Coupler-Hose(H/T Only)
