Запчасти Hyundai HB90 BOOM MOUNTING(BACKHOE)

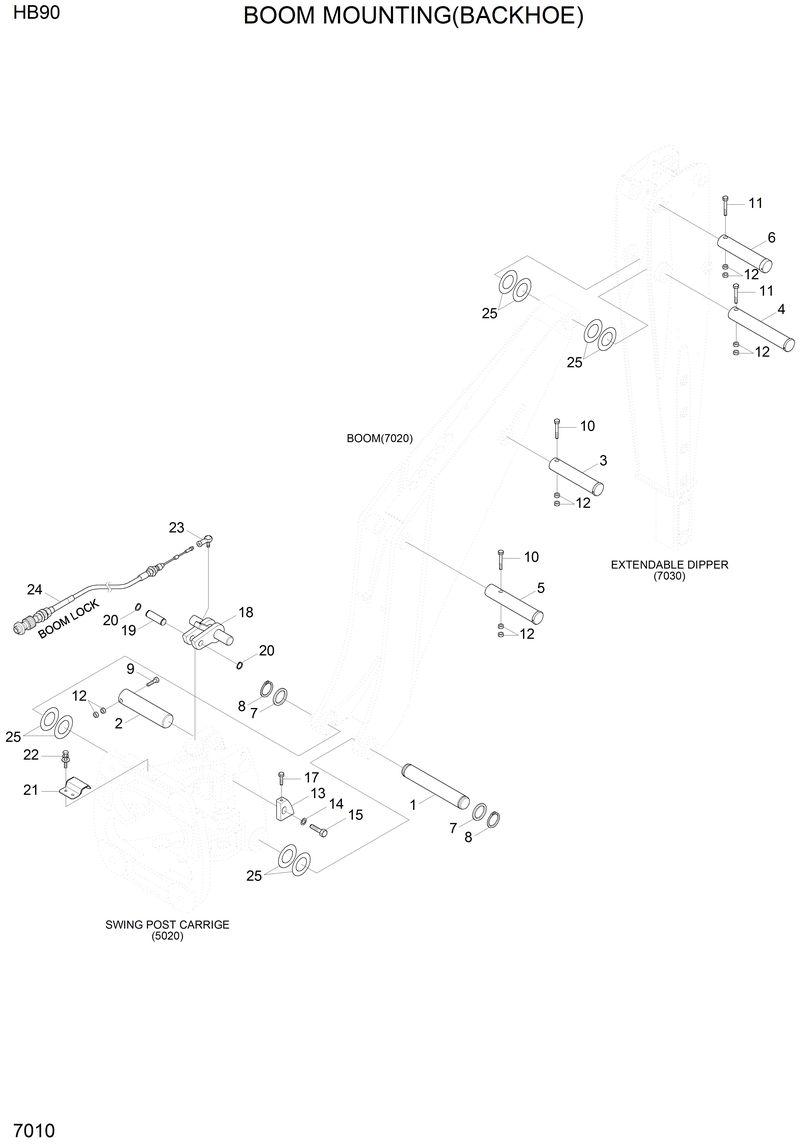

Схема запчастей Hyundai HB90 - BOOM MOUNTING(BACKHOE)

Артикул

Название

Примечание

Количество

1

61U2-61510

61U2-61510-Pin

10

S017-121206

S017-121206-Bolt-Hex

11

S017-121306

S017-121306-Bolt-Hex

12

S207-121006

S207-121006-Nut-Hex

13

61U2-61701

61U2-61701-Stopper

14

S403-205006

S403-205006-Washer-Plain

15

S017-200606

S017-200606-Bolt-Hex

17

S017-100406

S017-100406-Bolt-Hex

18

61U2-62710

61U2-62710-Lock-Boom

19

61U2-61750

61U2-61750-Pin

2

61U2-61530

61U2-61530-Pin

20

S601-025004

S601-025004-Ring-Retaining

21

61U2-62810

61U2-62810-Bracket Wa

22

S037-123026

S037-123026-Bolt-W/Washer

23

S926-111000

S926-111000-End-Rod

24

61U2-61840

61U2-61840-Cable Assy

25

S391-060120

S391-060120-Shim-Round(1.0t)

3

61U2-61540

61U2-61540-Pin

4

61U2-61570

61U2-61570-Pin

5

61U2-61551

61U2-61551-Pin

6

61U2-61560

61U2-61560-Pin

7

61U2-61520

61U2-61520-Collar

8

S601-060004

S601-060004-Ring-Retaining

9

S017-121406

S017-121406-Bolt-Hex

Выбрано товаров: 24
