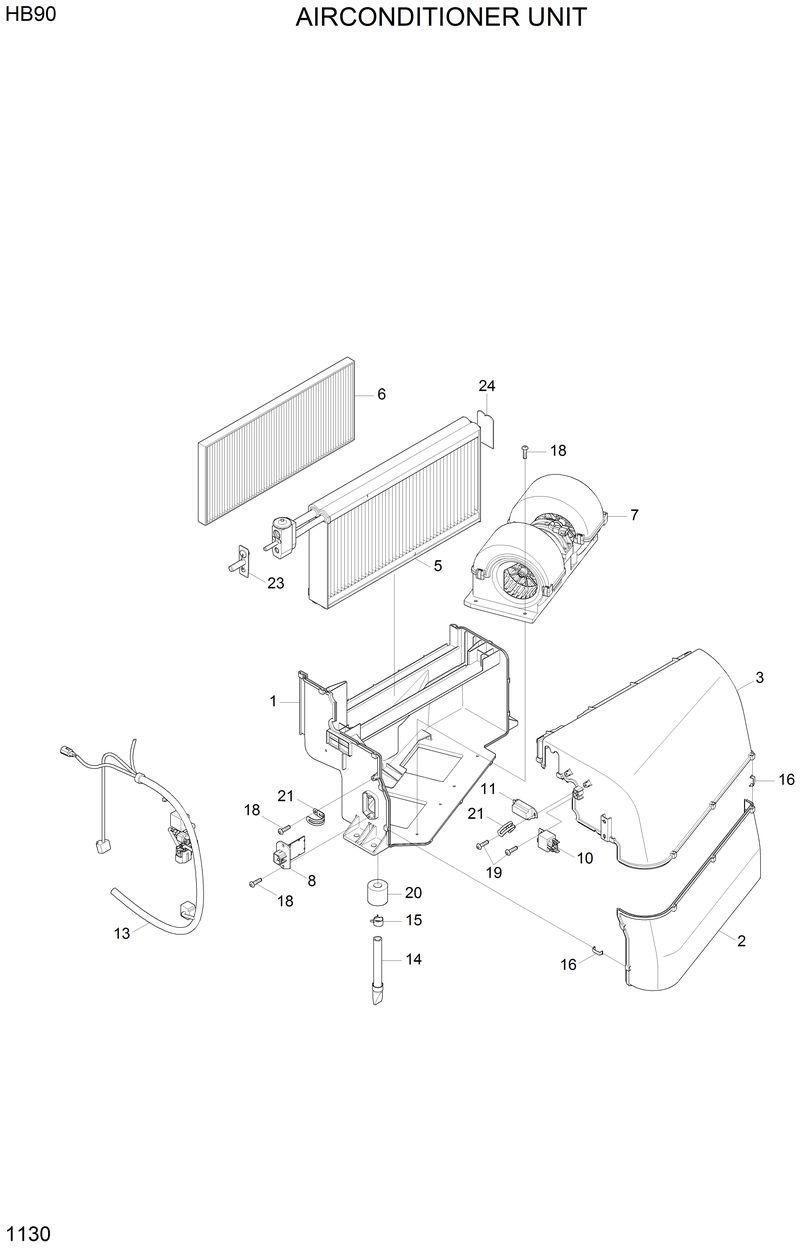

Запчасти Hyundai HB90 AIRCONDITIONER UNIT

*

11U2-90051

11U2-90051-Aircon Unit

1

C02136D0

C02136D0-. Lower Case

10

C92048G0

C92048G0-. Relay

11

C91143G0

C91143G0-. Thermocon Assy

14

11U2-90190

11U2-90190-. Hose-Drain

15

11U2-90360

11U2-90360-. Clamp-Hose

16

G30006K2

G30006K2-. Case Clip

19

@

@-. Screw-Tapping

19

@

@-. Screw-Tapping

2

C02137D0

C02137D0-. Upper Case-Rh

20

G50193F0

G50193F0-. Packing-Drain

21

G30198C0

G30198C0-. Harness Clip

23

@

@-. Cap-Eva

25

F10245A0

F10245A0-. Evp Plate

3

C02138D0

C02138D0-. Upper Case-Lh

5

B31107A0

B31107A0-. Evap Core Assy

6

11U2-90180

11U2-90180-. Filter-Rec Air

7

M7010

M7010-. Blower Uint

8

C90133G0

C90133G0-. Resistor Assy

N13

C95113G0

C95113G0-. Wire Harness Assy
