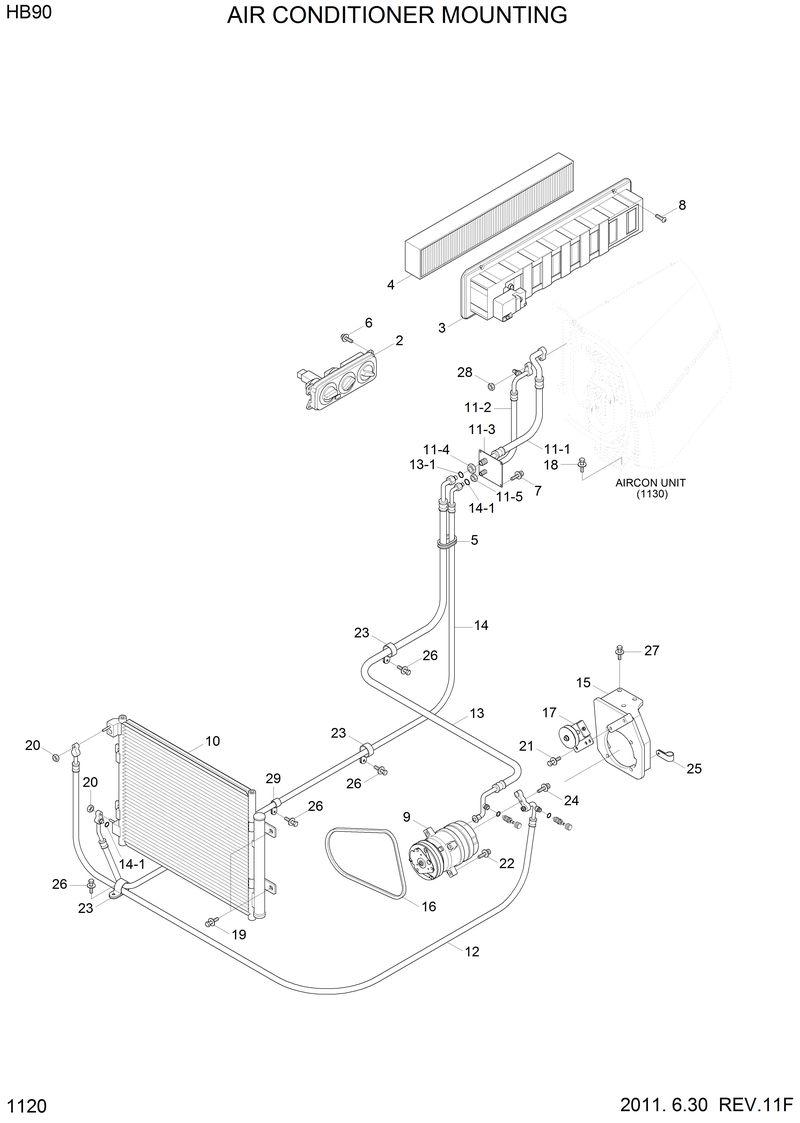

Запчасти Hyundai HB90 AIR CONDITIONER MOUNTING

11U2-90460

11U2-90460-V-Belt

10

11U2-90090

11U2-90090-Condenser

11

11U2-90380

11U2-90380-Hose Coupler Assy

11-1

11U2-90300

11U2-90300-. Hose Assy-Suction

11-2

11U2-90310

11U2-90310-. Hose Assy-Liq

11-3

11U2-90430

11U2-90430-. Coupler-Hose(A/C Only)

11-4

11U2-90400

11U2-90400-. Nut-Suc Hose

11-5

11U2-90410

11U2-90410-. Nut-Liq Hose

12

11U2-90112

11U2-90112-Hose Assy-Dis

13

11U2-90101

11U2-90101-Hose Assy-Suction

14

11U2-90121

11U2-90121-Hose Assy-Liq B

14-1

G58074F0

G58074F0-. O-Ring

14-1

G58074F0

G58074F0-. O-Ring

15

11U2-90152

11U2-90152-Bracket Wa-Comp

16

11U2-90271

11U2-90271-V-Belt

17

11S8-90260

11S8-90260-Bkt & T/Pulley Assy

18

S035-082556

S035-082556-Bolt-W/Washer

19

S035-082056

S035-082056-Bolt-W/Washer

2

11U2-90070

11U2-90070-Control Assy

20

S285-06100B

S285-06100B-Nut-Flanged

21

S037-102556

S037-102556-Bolt-W/Washer

22

S037-103556

S037-103556-Bolt-W/Washer

23

31L7-10230

31L7-10230-Clamp

24

S038-103556

S038-103556-Bolt-W/Washer

25

S543-050002

S543-050002-Clamp-Tube

26

S037-081556

S037-081556-Bolt-W/Washer

27

S037-103056

S037-103056-Bolt-W/Washer

28

S281-081006

S281-081006-Nut-Flanged

29

31L7-10190

31L7-10190-Clamp-Tube

3

11U2-90130

11U2-90130-Duct Inlet Assy

4

11U2-90170

11U2-90170-Filter-Fresh Air

5

11U2-90340

11U2-90340-Grommet

6

S131-052046

S131-052046-Screw-W/Washer

7

S035-061556

S035-061556-Bolt-W/Washer

8

S161-060156

S161-060156-Screw-Cross R/Round

9

11U2-90140

11U2-90140-Compressor Assy
