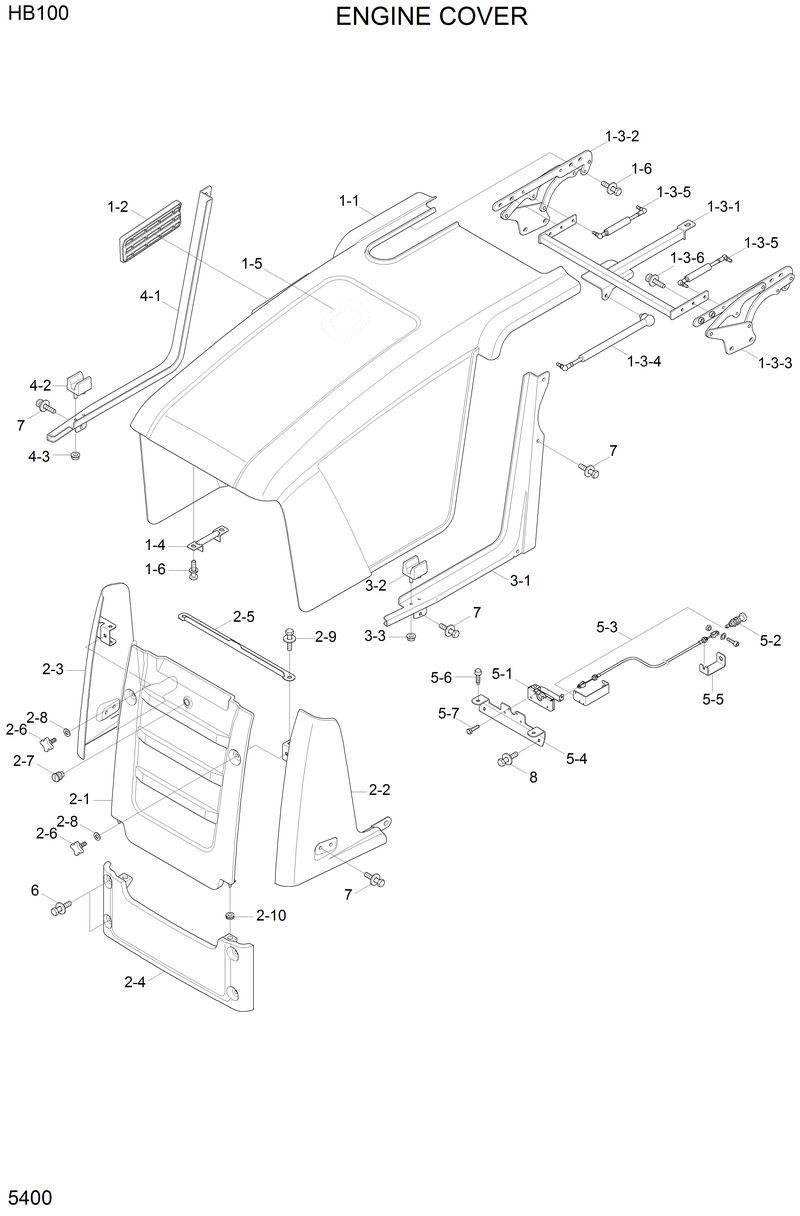

Запчасти Hyundai HB100 ENGINE COVER

1

73U2-40010

73U2-40010-Bonnet Assy

1-1

73U2-40100

73U2-40100-. Bonnet

1-2

73U2-40110

73U2-40110-. Cover

1-3

73U2-40121

73U2-40121-. Hinge Assy

1-3-4

73U2-41230

73U2-41230-.. Gas Spring Assy

1-3-5

73U2-41240

73U2-41240-.. Gas Spring Assy

1-3-6

S037-102556

S037-102556-.. Bolt-W/Washer

1-4

73U2-40130

73U2-40130-. Striker

1-5

73U2-40140

73U2-40140-. Sponge

2

73U2-40020

73U2-40020-Grill Assy

2-1

73U2-40200

73U2-40200-. Grill Wa

2-10

S681-100400

S681-100400-. Grommet

2-2

73U2-40211

73U2-40211-. Cover Wa-Lh

2-3

73U2-40221

73U2-40221-. Cover Wa-Rh

2-4

73U2-40230

73U2-40230-. Cover Wa

2-5

73U2-40240

73U2-40240-. Bracket Wa

2-6

73U2-40250

73U2-40250-. Bolt-Knob

2-7

71LB-41220

71LB-41220-. Lock Assy

2-8

71FE-10170

71FE-10170-. Washer-Rubber

2-9

S037-102556

S037-102556-. Bolt-W/Washer

2-9

S037-102556

S037-102556-. Bolt-W/Washer

3

73U2-40030

73U2-40030-Guide-Lh

3-1

73U2-40400

73U2-40400-. 73u2-40400

4

73U2-40040

73U2-40040-Guide-Rh

4-1

73U2-40300

73U2-40300-. Angle-Lh, Guide

4-2

73U2-40330

73U2-40330-. Holder

4-2

73U2-40330

73U2-40330-. Holder

4-3

S285-08100B

S285-08100B-. Nut-Flanged

4-3

S285-08100B

S285-08100B-. Nut-Flanged

5

73U2-40050

73U2-40050-Latch Assy

5-1

73U2-40500

73U2-40500-. Support Wa

5-2

73U2-40510

73U2-40510-. Plunger

5-3

73U2-40520

73U2-40520-. Pull Cable Assy

5-4

73U2-40530

73U2-40530-. Bracket

5-5

73U2-40540

73U2-40540-. Bracket

5-6

73U2-40550

73U2-40550-. Bumper-Spring

5-7

S035-064046

S035-064046-. Bolt-W/Washer

6

S037-101556

S037-101556-Bolt-W/Washer

7

S037-102056

S037-102056-Bolt-W/Washer

8

S037-122556

S037-122556-Bolt-W/Washer

N1-3-1

73U2-41200

73U2-41200-.. Support Wa

N1-3-2

73U2-41210

73U2-41210-.. Hinge-Lh

N1-3-3

73U2-41220

73U2-41220-.. Hinge-Rh
