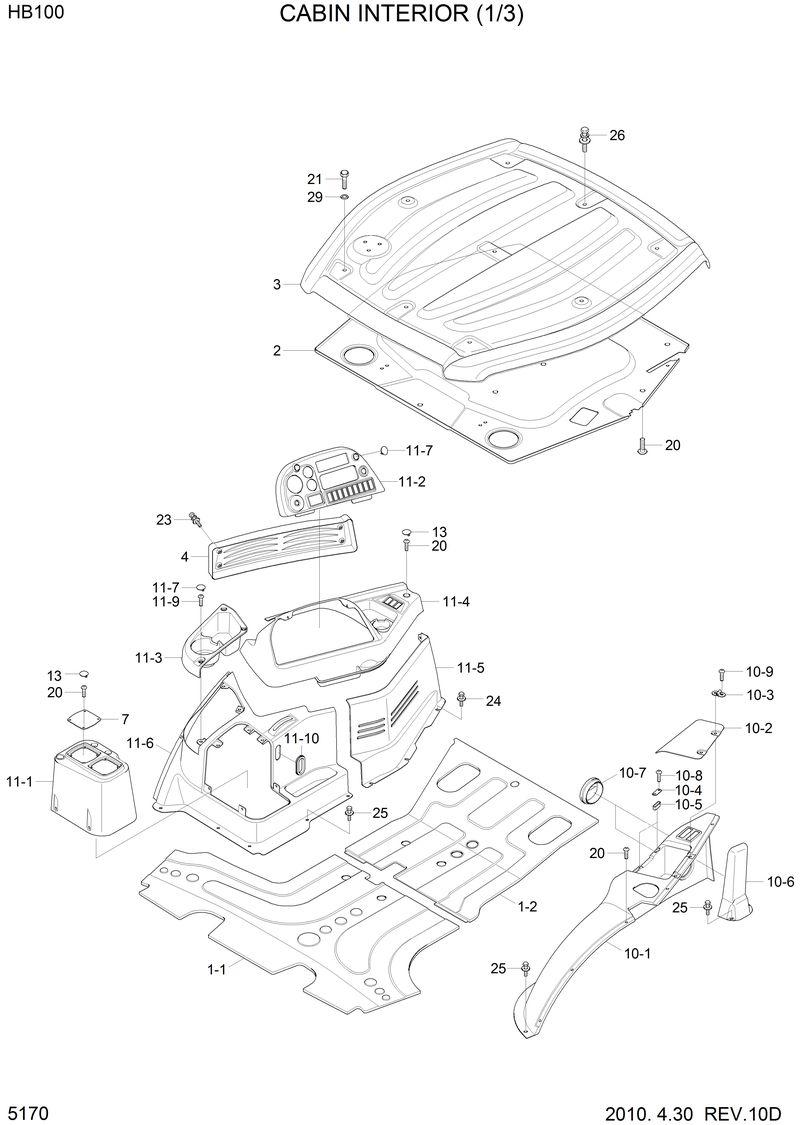

Запчасти Hyundai HB100 CABIN INTERIOR(1/3)

1

71U2-31222

71U2-31222-Mat Assy-Floor

1-1

71U2-31422

71U2-31422-. Mat-Front

1-2

71U2-31432

71U2-31432-. Mat-Rear

10

71U2-32032

71U2-32032-Console Box Assy-Lh

10-1

71U2-31052

71U2-31052-. Console Box-Lh

10-2

71U2-31062

71U2-31062-. Cover-Storage Box

10-3

71U2-31200

71U2-31200-. Hinge

10-5

71U2-31442

71U2-31442-. Plate-Storage Box

10-5

71U2-31442

71U2-31442-. Plate-Storage Box

10-6

71U2-33122

71U2-33122-. Duct-Lh Backhoe

10-7

71Q6-22400

71Q6-22400-. Air Nozzle-Rear

10-8

S141-030106

S141-030106-. Screw-Flat Hd

10-9

S141-060156

S141-060156-. Screw-Flat Hd

11

71U2-32042

71U2-32042-Console Box Assy-Rh

11-1

71U2-31322

71U2-31322-. Service Cover-Rh, Fr

11-10

71M8-00680

71M8-00680-. Rubber-Cap

11-2

71U2-31122

71U2-31122-. Panel-Rh, Display

11-3

71U2-31112

71U2-31112-. Service Cover-Fuse Box

11-4

71U2-31102

71U2-31102-. Service Cover-Rh

11-5

71U2-31092

71U2-31092-. Trim Rh-Rear

11-6

71U2-31082

71U2-31082-. Trim Rh-Front

11-7

71Q6-22760

71Q6-22760-. Cap-Trim

11-9

71LM-29010

71LM-29010-. Screw-Cap

13

71Q6-22760

71Q6-22760-Cap-Trim

2

71U2-31232

71U2-31232-Headlining

20

S002-06015B

S002-06015B-Screw-Trus Head

21

S017-20020D

S017-20020D-Bolt-Hex

22

S035-051526

S035-051526-Bolt-W/Washer

23

S035-062026

S035-062026-Bolt-W/Washer

24

S035-082026

S035-082026-Bolt-W/Washer

25

S037-102256

S037-102256-Bolt W/Washer-Hex

26

S037-122526

S037-122526-Bolt-W/Washer

29

S403-205006

S403-205006-Washer-Plain

3

71U2-31242

71U2-31242-Roof Cover

30

73U2-31820

73U2-31820-Rubber Pad

4

71U2-31252

71U2-31252-Grill-Intake

7

71U2-31370

71U2-31370-Blanking Cover-Rcv
