Запчасти Hyundai HB100 CABIN DUCT ASSY

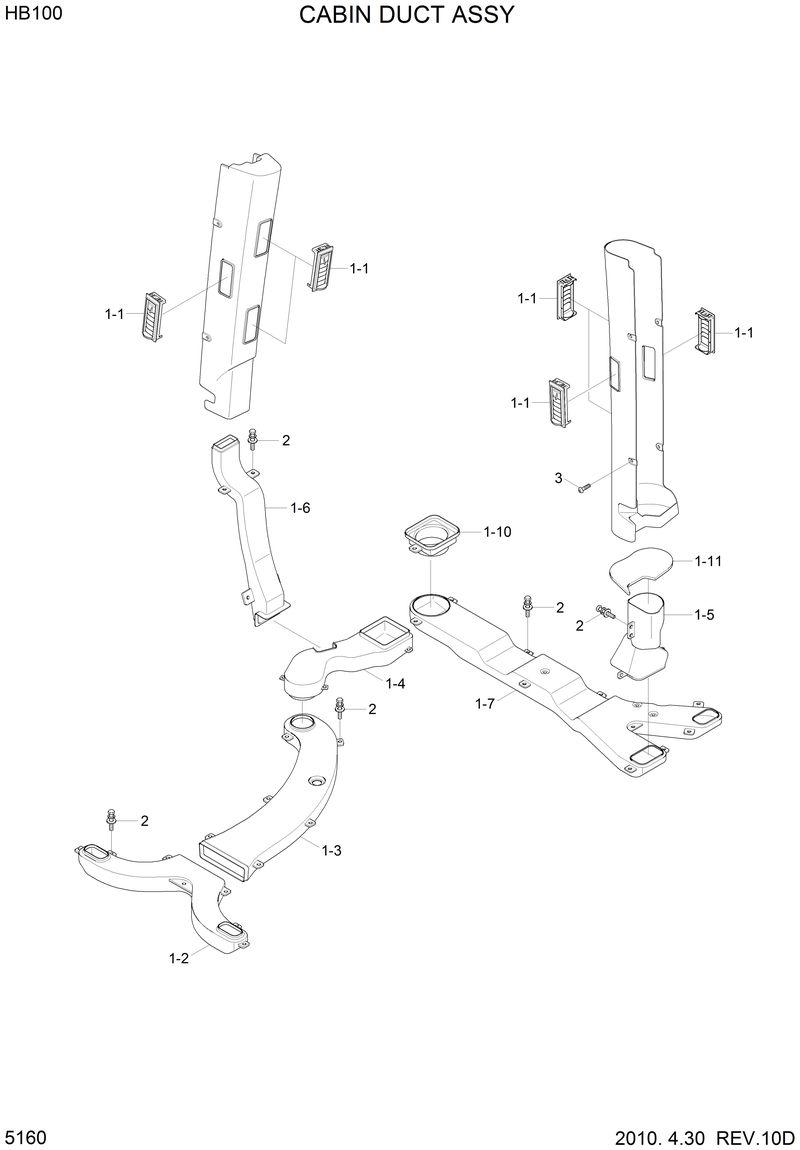

Схема запчастей Hyundai HB100 - CABIN DUCT ASSY

Артикул

Название

Примечание

Количество

1

71U2-33003

71U2-33003-Duct Sub Assy

1-1

71U2-31072

71U2-31072-. Louver-Air

1-10

71U2-33132

71U2-33132-. Duct-Rh Rear

1-11

71U2-33140

71U2-33140-. Pad-Rubber

1-2

71U2-33012

71U2-33012-. Duct-Bottom Front A

1-3

71U2-33022

71U2-33022-. Duct-Bottom Front B

1-4

71U2-33032

71U2-33032-. Duct-Rh Front

1-5

71U2-33042

71U2-33042-. Duct-Lh

1-6

71U2-33052

71U2-33052-. Duct-Rh Pillar Low

1-7

71U2-33062

71U2-33062-. Duct-Bottom Rear

2

S035-082026

S035-082026-Bolt-W/Washer

3

S002-06015B

S002-06015B-Screw-Trus Head

Выбрано товаров: 12
