Запчасти Hyundai HB100 CABIN ASSY(4/6, SLIDING DOOR)

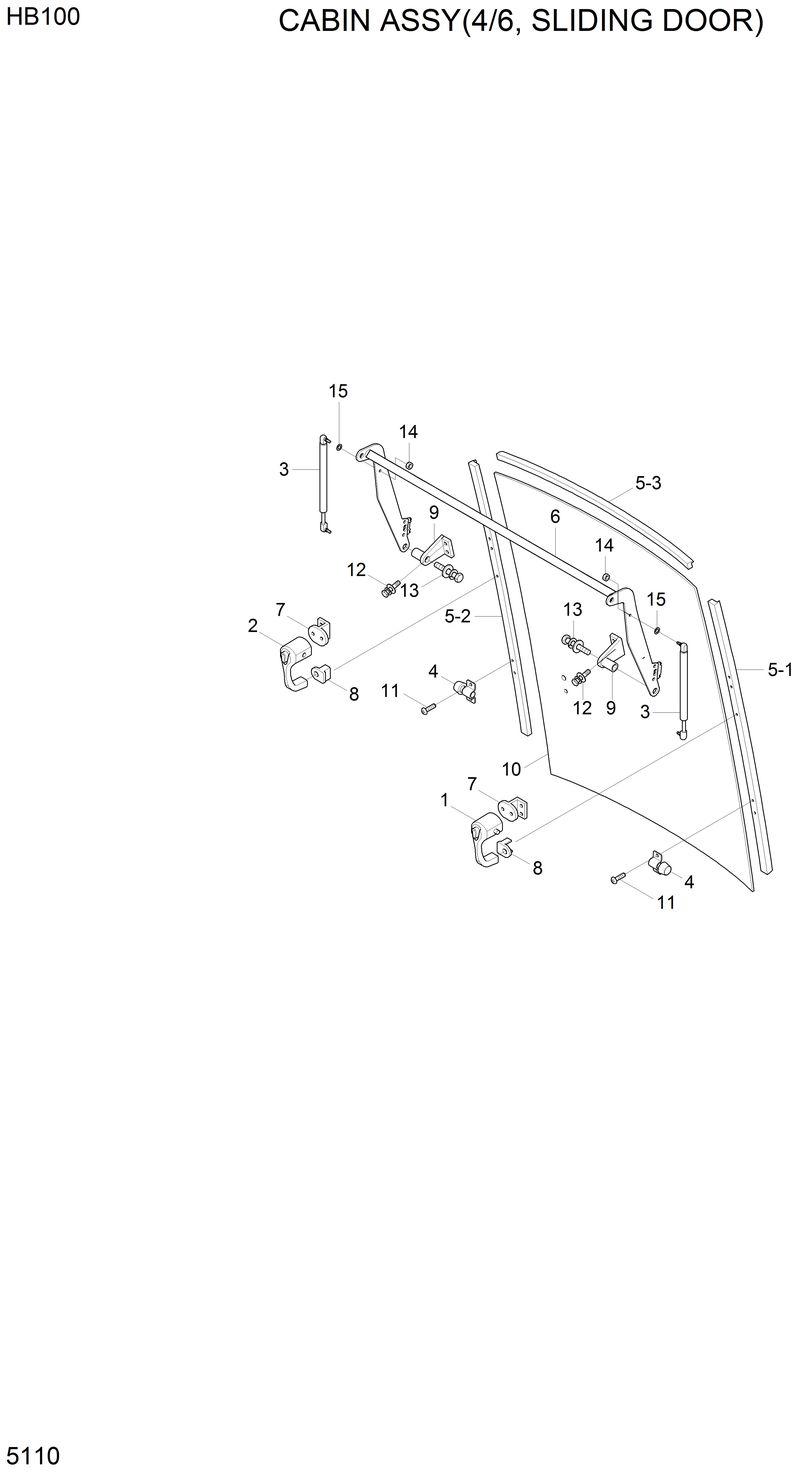

Схема запчастей Hyundai HB100 - CABIN ASSY(4/6, SLIDING DOOR)

Артикул

Название

Примечание

Количество

*

@

@-Cab Assy

*-6

71U2-24002

71U2-24002-. Sliding Door Assy

1

71M9-01001

71M9-01001-.. Latch Assy-Rh

11

S002-06015B

S002-06015B-.. Screw-Trus Head

12

S035-081526

S035-081526-.. Bolt-W/Washer

13

S037-101526

S037-101526-.. Bolt-W/Washer

14

S205-08100B

S205-08100B-.. Nut-Hex

15

S403-082006

S403-082006-.. Washer-Plain

2

71M9-01091

71M9-01091-.. Latch Assy-Lh

3

71U2-24062

71U2-24062-.. Gas Spring-S/Door

4

71U2-24082

71U2-24082-.. Roller Assy-S/Door

6

71U2-24132

71U2-24132-.. Linkage Wa

7

71U2-24152

71U2-24152-.. Support-Latch

8

71U2-24162

71U2-24162-.. Support-Latch

N10

71U2-27082

71U2-27082-.. Glass-Sliding Door

N5

71U2-24122

71U2-24122-.. Frame Wa-Door

N5-1

71U2-24022

71U2-24022-... Frame-Rh

N5-2

71U2-24012

71U2-24012-... Frame-Lh

N5-3

71U2-24032

71U2-24032-... Frame-Upper

N9

71U2-24172

71U2-24172-.. Bracket-S/Door

Выбрано товаров: 20
