Запчасти Hyundai HB100 CABIN ASSY(3/6, SIDE DOOR-RH)

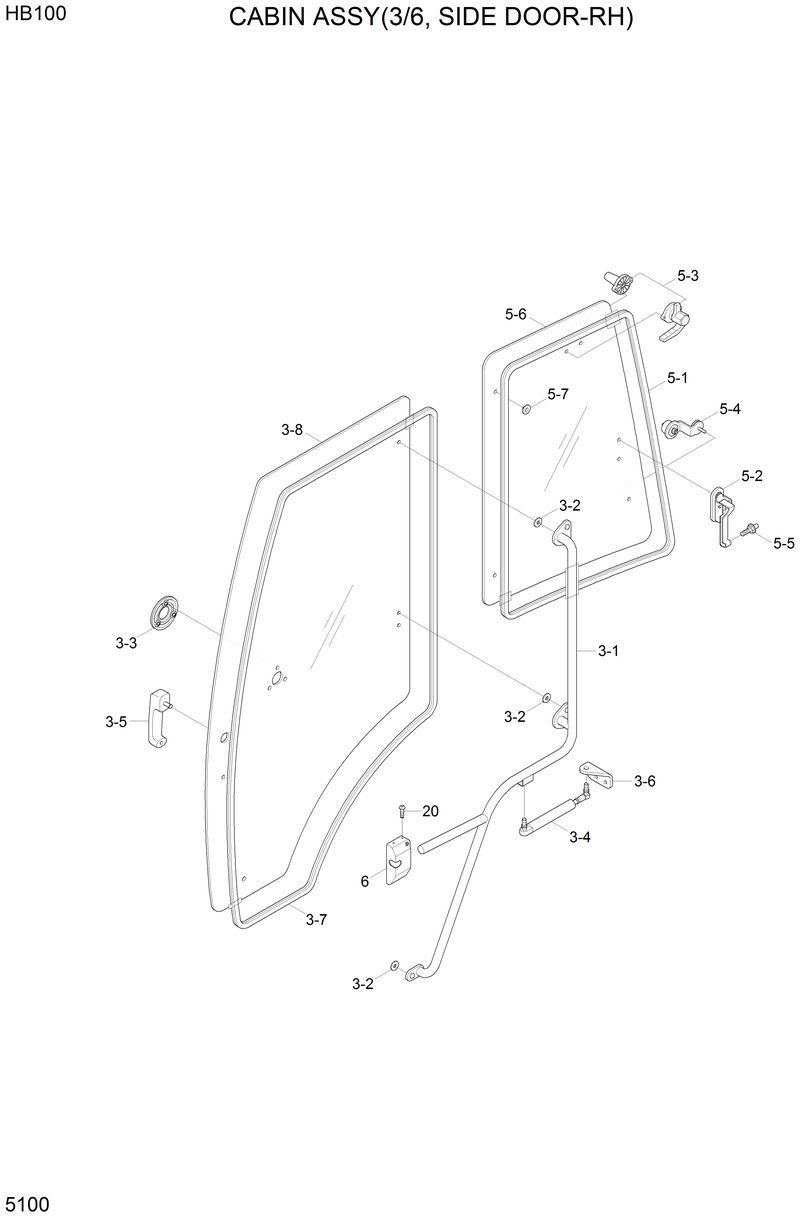

Схема запчастей Hyundai HB100 - CABIN ASSY(3/6, SIDE DOOR-RH)

Артикул

Название

Примечание

Количество

*

@

@-Cab Assy

20

S002-06015B

S002-06015B-Screw-Trus Head

3

71U2-21002

71U2-21002-Side Door Assy-Rh

3-1

71U2-21132

71U2-21132-. Handrail Wa-Door,Rh

3-2

71U2-20062

71U2-20062-. Rubber-Side Door

3-3

71U2-20072

71U2-20072-. Locker Assy-Door

3-4

71U2-20092

71U2-20092-. Gas Spring-Side Door

3-5

71U2-21042

71U2-21042-. Handle Assy-Rh,Otr

3-6

71U2-21052

71U2-21052-. Bracket-G/Spring Up Rh

3-7

71U2-21062

71U2-21062-. Weather Strip-Rh,Door

3-8

71U2-27052

71U2-27052-. Glass-Side Door,Rh

5

71U2-23002

71U2-23002-Quarter Door Assy-Rh

5-1

71U2-23012

71U2-23012-. Weather Strip-Rh,Qtr

5-2

71U2-23022

71U2-23022-. Locker-Rh,Qtr Lwr

5-3

71U2-23032

71U2-23032-. Locker-Rh,Qtr Upr

5-4

71U2-23042

71U2-23042-. Striker-Qtr

5-5

71U2-22052

71U2-22052-. Striker Pin Wa

5-6

71U2-27072

71U2-27072-. Glass-Rh, Qtr

5-7

71U2-22070

71U2-22070-. Washer Block

6

71U2-31272

71U2-31272-Latch Cover-Rh

Выбрано товаров: 20
