Запчасти Hyundai HB100 CABIN ASSY(2/6, SIDE DOOR-LH)

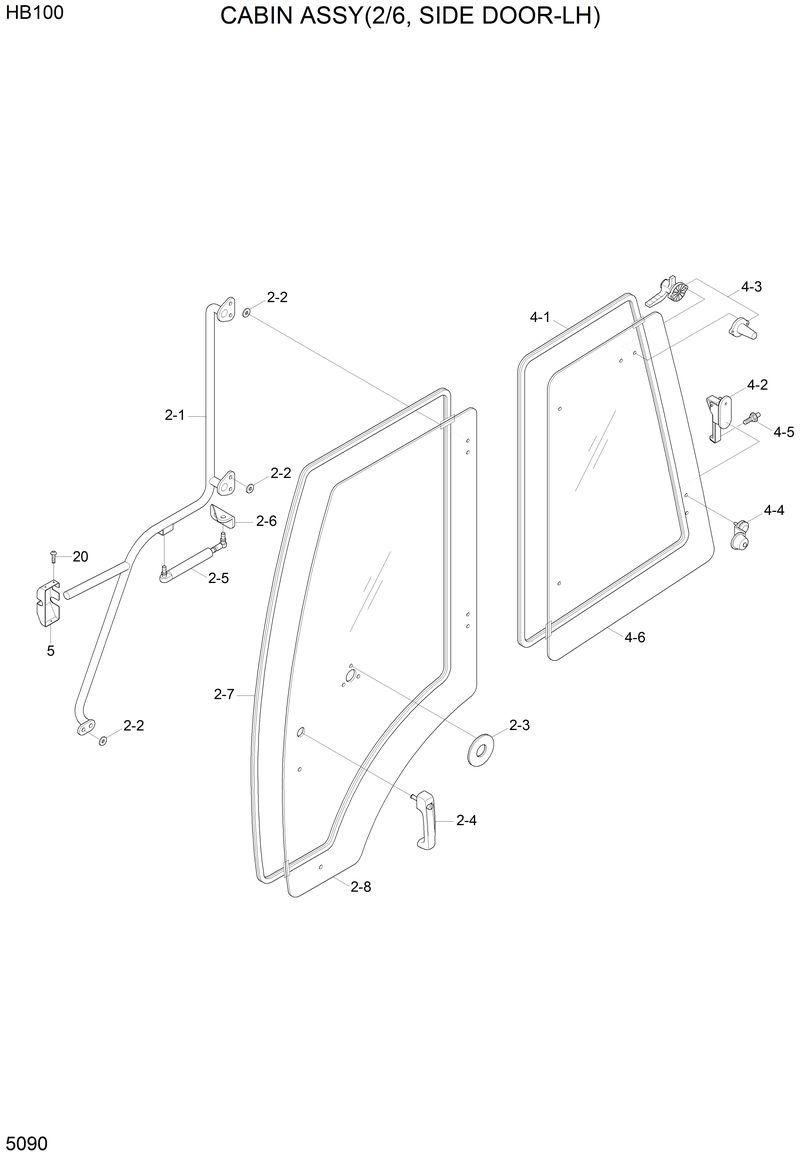

Схема запчастей Hyundai HB100 - CABIN ASSY(2/6, SIDE DOOR-LH)

Артикул

Название

Примечание

Количество

*

@

@-Cab Assy

2

71U2-20002

71U2-20002-. Side Door Assy-Lh

2-1

71U2-20132

71U2-20132-.. Handrail Wa-Door,Lh

2-2

71U2-20062

71U2-20062-.. Rubber-Side Door

2-3

71U2-20072

71U2-20072-.. Locker Assy-Door

2-4

71U2-20082

71U2-20082-.. Handle Assy-Lh,Otr

2-5

71U2-20092

71U2-20092-.. Gas Spring-Side Door

2-6

71U2-20112

71U2-20112-.. Bracket-G/Spring Up,Lh

2-7

71U2-20122

71U2-20122-.. Weather Strip-Lh,Dr

2-8

71U2-27042

71U2-27042-.. Glass-Lh,Side Door

20

S002-06015B

S002-06015B-Screw-Trus Head

4

71U2-22002

71U2-22002-. Quarter Door Assy-Lh

4-1

71U2-22012

71U2-22012-.. Weather Strip Qtr-Lh

4-2

71U2-22022

71U2-22022-.. Locker-Lh,Qtr Lwr

4-3

71U2-22032

71U2-22032-.. Locker-Lh,Qtr Upr

4-4

71U2-22042

71U2-22042-.. Striker-Lh,Qtr

4-5

71U2-22052

71U2-22052-.. Striker Pin Wa

4-6

71U2-27062

71U2-27062-.. Glass-Lh,Qtr

5

71U2-31262

71U2-31262-Latch Cover-Lh

Выбрано товаров: 19
