Запчасти Hyundai HB100 CABIN ASSY(1/6)

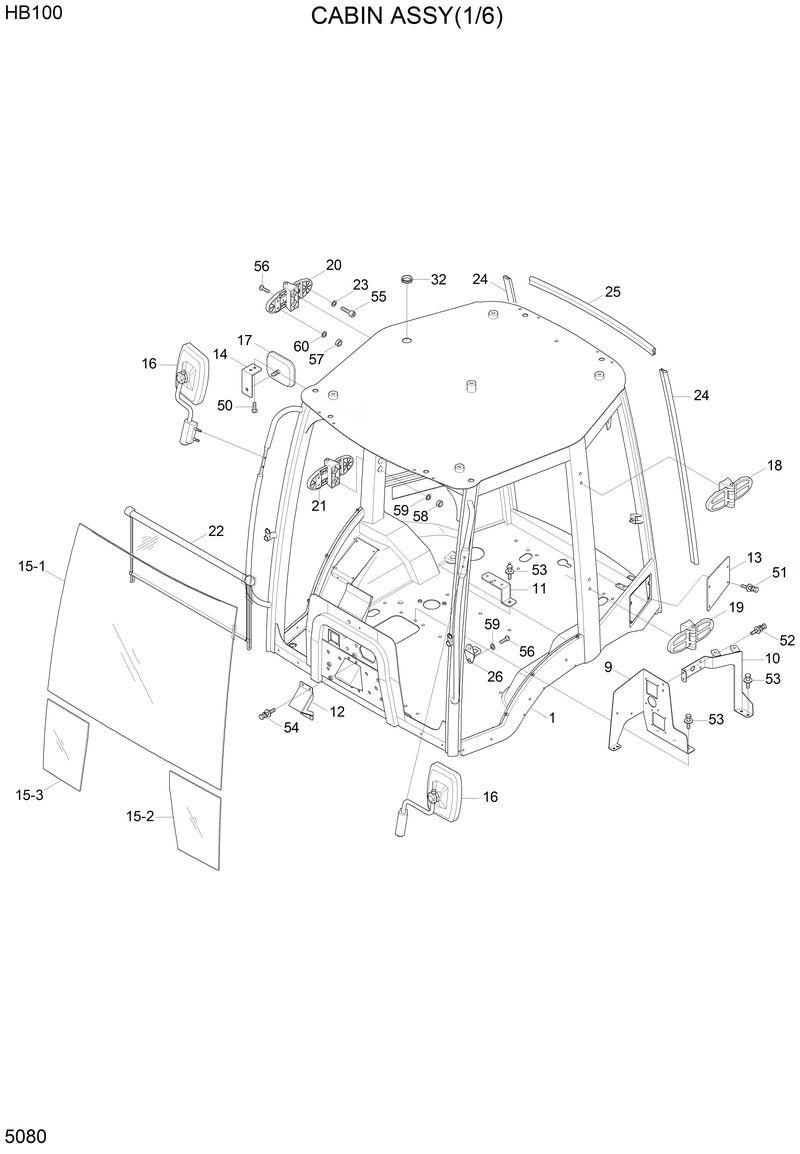

Схема запчастей Hyundai HB100 - CABIN ASSY(1/6)

Артикул

Название

Примечание

Количество

*

71U2-11002

71U2-11002-Cabin Assy

1

71U2-12002

71U2-12002-. Cabin Wa

10

71U2-13022

71U2-13022-. Support Wa-C/Rh, Fr

11

71U2-13041

71U2-13041-. Support-Hvac Front

12

71U2-11032

71U2-11032-. Bracket Wa-S.Column

13

71U2-13052

71U2-13052-. Cover-Panel, Lh

14

71U2-11172

71U2-11172-. Bracket Wa

15

71U2-27002

71U2-27002-. Glass Kit-Front

15-1

71U2-27012

71U2-27012-.. Glass-Front,Up

15-2

71U2-27022

71U2-27022-.. Glass-Lower,Lh

15-3

71U2-27032

71U2-27032-.. Glass Lower,Rh

16

71U2-11112

71U2-11112-. Mirror Assy-Otr

17

71LB-01170

71LB-01170-. Mirror-Room

18

71U2-11012

71U2-11012-. Hinge-Side Door

19

71U2-11152

71U2-11152-. Hinge-S/Door Lwr Lh

20

71U2-11242

71U2-11242-. Hinge-S/Door Upr Rh

21

71U2-11252

71U2-11252-. Hinge-S/Door Lwr Rh

22

71U2-11162

71U2-11162-. Sun Visor

23

71U2-11320

71U2-11320-. Washer-Quater Hinge

24

71U2-11062

71U2-11062-. Weather Strip

25

71U2-11310

71U2-11310-. Weather Strip

26

71U2-20142

71U2-20142-. Striker-Main Door

50

S002-06015B

S002-06015B-. Screw-Trus Head

51

S035-062026

S035-062026-. Bolt-W/Washer

52

S035-082526

S035-082526-. Bolt-W/Washer

53

S037-102256

S037-102256-. Bolt W/Washer-Hex

54

S037-123026

S037-123026-. Bolt-W/Washer

55

S107-080256

S107-080256-. Bolt-Socket

56

S145-080166

S145-080166-. Screw-Flat Hd

57

S205-10100B

S205-10100B-. Nut-Hex

58

S275-08000B

S275-08000B-. Nut-Self Locking

59

S403-08100B

S403-08100B-. Washer-Plain

60

S403-10100B

S403-10100B-. Washer-Plain

9

71U2-13012

71U2-13012-. Screen-Console Rh

Выбрано товаров: 34
