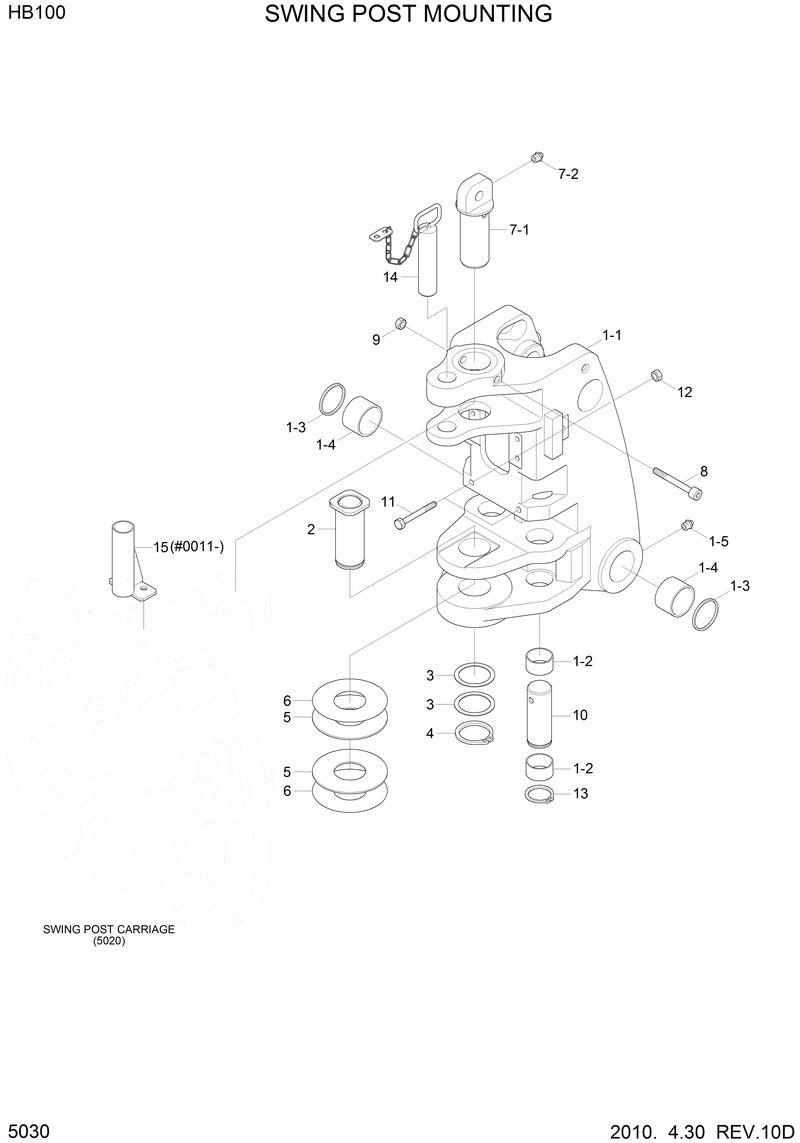

Запчасти Hyundai HB100 SWING POST MOUNTING

1

41U2-20012

41U2-20012-Swing Post Assy

1-1

41U2-20022

41U2-20022-. Swing Post

1-2

41U2-20080

41U2-20080-. Bushing

1-3

S700-060206

S700-060206-. Dust Seal-Dkiy Type

1-4

X122-602065

X122-602065-. Bushing

10

41U2-20170

41U2-20170-Pin

11

S017-121806

S017-121806-Bolt-Hex

12

S275-120006

S275-120006-Nut-Self Locking

13

S601-055004

S601-055004-Ring-Retaining

14

41U2-20090

41U2-20090-Pin Assy

15

41U2-20180

41U2-20180-Plate Wa

2

41U2-20040

41U2-20040-Pin Wa

3

41U2-20070

41U2-20070-Shim(0.5)

4

S601-070002

S601-070002-Ring-Retaining

5

41U2-20140

41U2-20140-Washer Thrust

6

41U2-20160

41U2-20160-Shim(0.1)

7

41U2-20152

41U2-20152-Pin Assy

7-1

41U2-20032

41U2-20032-. Pin

7-2

S651-810002

S651-810002-. Nipple-Grease

7-2

S651-810002

S651-810002-. Nipple-Grease

8

S109-101706

S109-101706-Bolt-Socket

9

S275-100006

S275-100006-Nut-Self Locking
