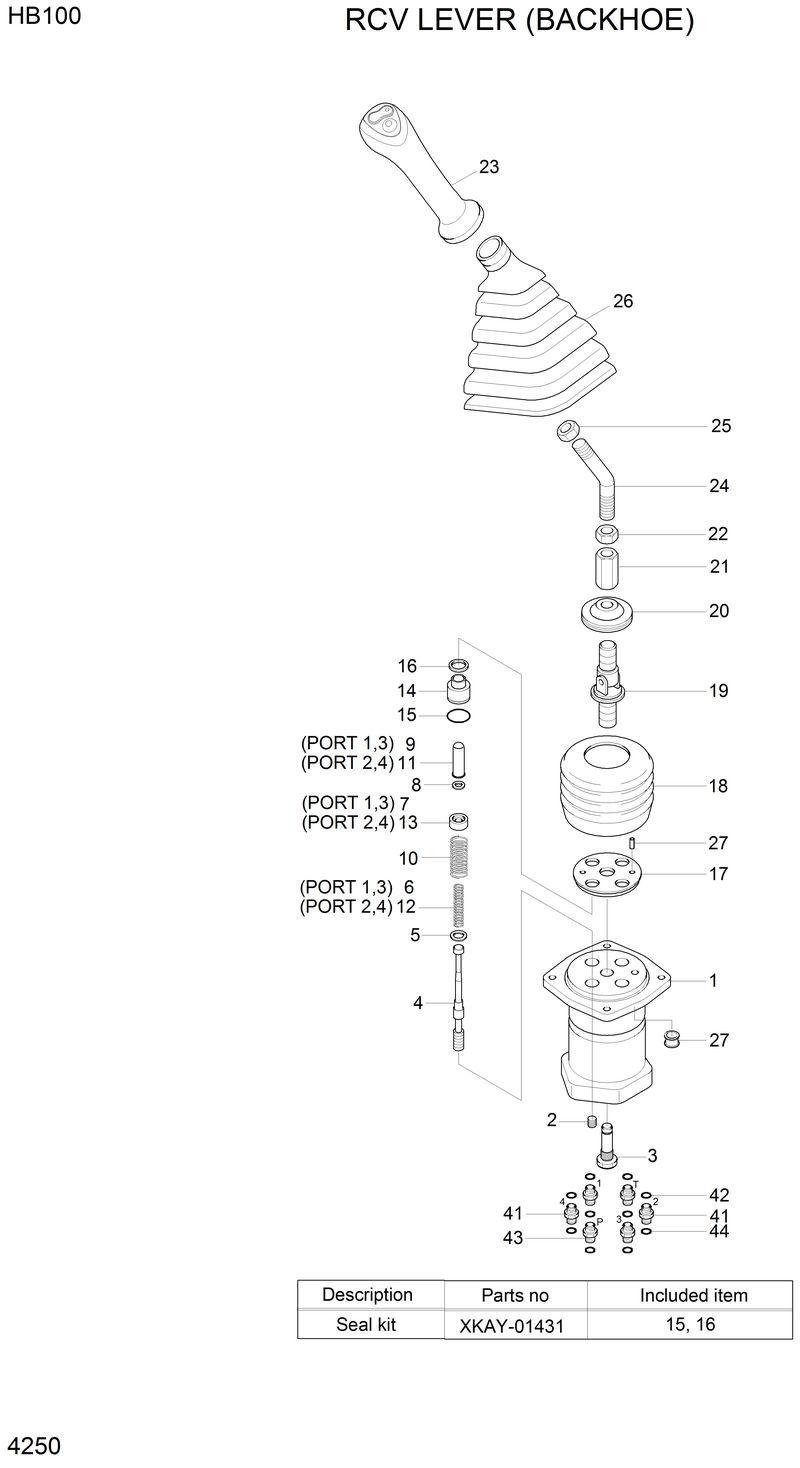

Запчасти Hyundai HB100 RCV LEVER (BACKHOE)

XKAY-01081

XKAY-01081-... Handle Assy-Rh

31Q6-20020

31Q6-20020-Rcv Lever(Rh)

XKAY-01063

XKAY-01063-.. Spool Kit(2,4)

31Q6-21020

31Q6-21020-. Rcv Lever-Rh

XKAY-01065

XKAY-01065-.. Plug Kit(2,4)

XKAY-01068

XKAY-01068-.. Handle Kit-Rh

*

31Q6-20010

31Q6-20010-Rcv Lever(Lh)

*-1

31Q6-21010

31Q6-21010-. Rcv Lever-Lh

*-2

XKAY-01062

XKAY-01062-.. Spool Kit(1,3)

*-3

XKAY-01064

XKAY-01064-.. Plug Kit(1,3)

*-4

XKAY-01067

XKAY-01067-.. Handle Kit-Lh

1

XKAY-01061

XKAY-01061-.. Case

11

XKAY-00439

XKAY-00439-... Rod-Push(2,4)

13

XKAY-01079

XKAY-01079-... Seat-Spring(2,4)

14

XKAY-00784

XKAY-00784-... Plug

17

XKAY-00075

XKAY-00075-.. Plate

18

XKAY-00786

XKAY-00786-.. Boot

19

XKAY-00049

XKAY-00049-.. Joint Assy

2

XKAY-00065

XKAY-00065-.. Plug

20

XKAY-01066

XKAY-01066-.. Swash Plate

21

XKAY-00047

XKAY-00047-.. Nut-Hex

22

XKAY-00046

XKAY-00046-... Nut

23

XKAY-01080

XKAY-01080-... Handle Assy-Lh

25

XKAY-00811

XKAY-00811-... Nut

27

XKAY-00074

XKAY-00074-.. Bushing

3

XKAY-00768

XKAY-00768-.. Bushing

41

XKAY-00798

XKAY-00798-. Connector

42

XKAY-00793

XKAY-00793-. O-Ring

43

XKAY-00799

XKAY-00799-. Filter-Last Guard

44

XKAY-00800

XKAY-00800-. O-Ring

6

XKAY-01077

XKAY-01077-... Spring(1,3)

7

XKAY-01078

XKAY-01078-... Seat-Spring(1,3)

8

XKAY-00058

XKAY-00058-... Stopper

9

XKAY-00052

XKAY-00052-... Rod-Push(1,3)

K

XKAY-01069

XKAY-01069-Seal Kit

K15

XKAY-00054

XKAY-00054-... O-Ring

K16

XKAY-00611

XKAY-00611-... Seal-Rod

N

@

@-Not Individually Supplied

N12

XKAY-00781

XKAY-00781-... Spring(2,4)

N24

XKAY-01082

XKAY-01082-... Bar-Handle

N26

XKAY-01083

XKAY-01083-... Boot

N4

XKAY-00771

XKAY-00771-... Spool

N5

XKAY-00772

XKAY-00772-... Shim
