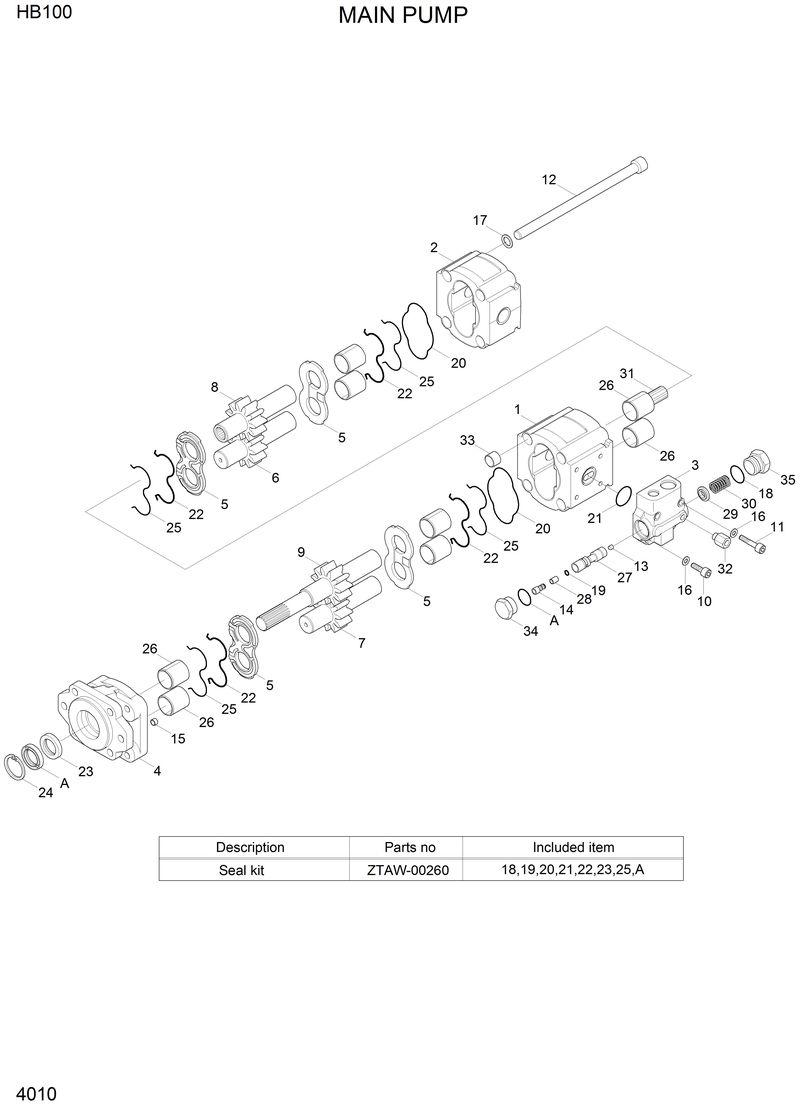

Запчасти Hyundai HB100 MAIN PUMP

ZTAW-00085

ZTAW-00085-. Plug-Spring

*

31U2-10020

31U2-10020-Main Pump Assy

12

ZTAW-00193

ZTAW-00193-. Screw-Tcei

17

ZTAW-00038

ZTAW-00038-. Washer

28

ZTAW-00075

ZTAW-00075-. Filter

K

ZTAW-00260

ZTAW-00260-Seal Kit

N1

ZTAW-00259

ZTAW-00259-. Body

N10

ZTAW-00192

ZTAW-00192-. Screw-Tcei

N11

ZTAW-00056

ZTAW-00056-. Screw

N13

ZTAW-00060

ZTAW-00060-. Screw-Grub

N14

ZTAW-00061

ZTAW-00061-. Screw-Grub

N15

ZTAW-00013

ZTAW-00013-. Screw-Grub

N16

ZTAW-00014

ZTAW-00014-. Washer

N2

ZTAW-00257

ZTAW-00257-. Body

N24

ZTAW-00200

ZTAW-00200-. Ring

N26

ZTAW-00044

ZTAW-00044-. Bearing-Sleeve

N27

ZTAW-00073

ZTAW-00073-. Spool

N29

ZTAW-00076

ZTAW-00076-. Seat-Spring

N3

ZTAW-00186

ZTAW-00186-. Cover-Rear End

N30

ZTAW-00077

ZTAW-00077-. Spring

N31

ZTAW-00201

ZTAW-00201-. Hub

N32

ZTAW-00094

ZTAW-00094-. Connection-Ls

N33

ZTAW-00028

ZTAW-00028-. Bushing-Steel

N34

ZTAW-00084

ZTAW-00084-. Plug

N4

ZTAW-00227

ZTAW-00227-. Cover-Front

N5

ZTAW-00228

ZTAW-00228-. Thrustplate

N6

ZTAW-00188

ZTAW-00188-. Gear-Driven

N7

ZTAW-00189

ZTAW-00189-. Gear-Driven

N8

ZTAW-00190

ZTAW-00190-. Shaft-Drive

N9

ZTAW-00191

ZTAW-00191-. Shaft-Drive

NK18

ZTAW-00195

ZTAW-00195-. O-Ring Seal

NK19

ZTAW-00210

ZTAW-00210-. O-Ring Seal

NK20

ZTAW-00196

ZTAW-00196-. Ring

NK21

ZTAW-00197

ZTAW-00197-. O-Ring Eal

NK22

ZTAW-00198

ZTAW-00198-. Seal

NK23

ZTAW-00199

ZTAW-00199-. Seal-Shaft

NK25

ZTAW-00043

ZTAW-00043-. Ring
