Запчасти Hyundai HB100 STABILIZER HYD PIPING 2

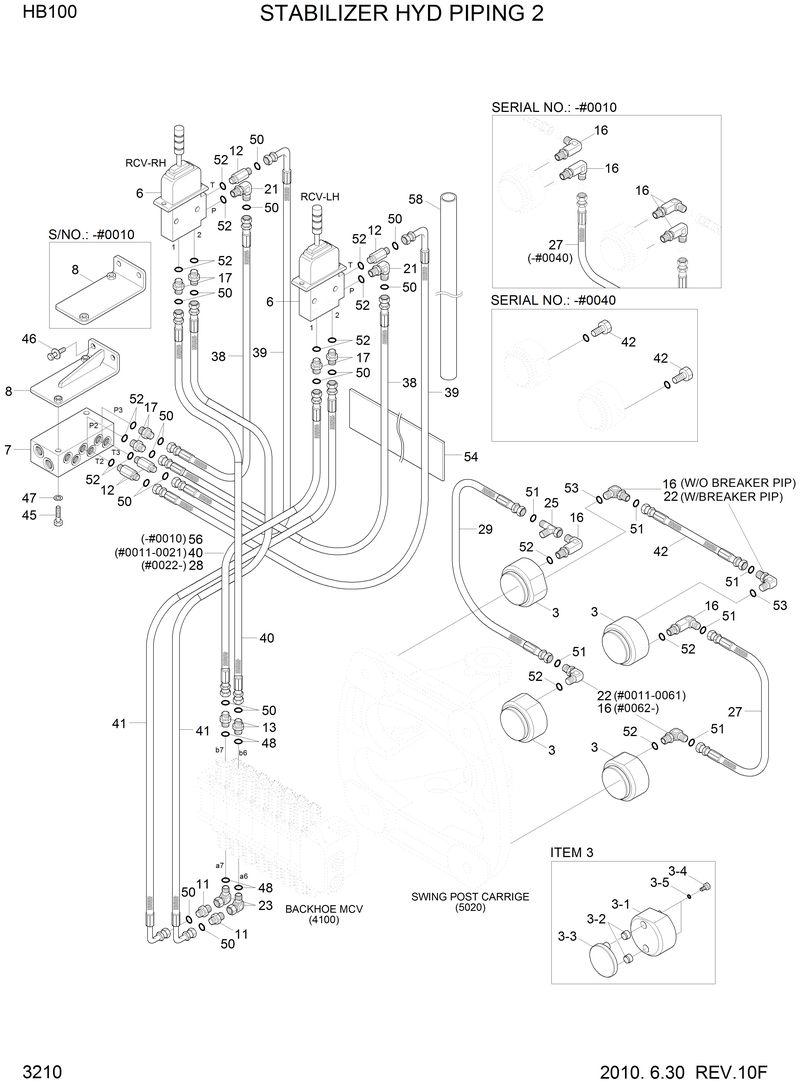

Схема запчастей Hyundai HB100 - STABILIZER HYD PIPING 2

Артикул

Название

Примечание

Количество

31U2-70191

31U2-70191-Protector

P913-066007

P913-066007-Hose Assy-Orfs 0x0

X520-110002

X520-110002-Elbow-90,Orfs

P930-042026

P930-042026-Hose Assy-Orfs 0x90

P910-042021

P910-042021-Hose Assy-Orfs 0x0

P910-042021

P910-042021-Hose Assy-Orfs 0x0

P930-042020

P930-042020-Hose Assy-Orfs 0x90

31U2-10361

31U2-10361-Plate Wa

P910-042020

P910-042020-Hose Assy-Orfs 0x0

P913-066010

P913-066010-Hose Assy-Orfs 0x0

P913-066009

P913-066009-Hose Assy-Orfs 0x0

31U2-70170

31U2-70170-Elbow-90,Orfs,Long

31U2-70170

31U2-70170-Elbow-90,Orfs,Long

31U2-70170

31U2-70170-Elbow-90,Orfs,Long

P913-066010

P913-066010-Hose Assy-Orfs 0x0

34E7-03140

34E7-03140-Grommet

X520-110002

X520-110002-Elbow-90,Orfs

X520-110002

X520-110002-Elbow-90,Orfs

11

31N4-22190

31N4-22190-Connector

12

31N8-40100

31N8-40100-Connector-Long,Orfs

13

31S7-00750

31S7-00750-Connector

17

X500-110001

X500-110001-Connector-Orfs

21

X520-110001

X520-110001-Elbow-90,Orfs

23

X520-310001

X520-310001-Elbow-90,Orfs

25

X840-525252

X840-525252-Tee-R/Type,Swivel,Orfs

28

P910-042022

P910-042022-Hose Assy-Orfs 0x0

29

P913-066011

P913-066011-Hose Assy-Orfs 0x0

3

31U2-70120

31U2-70120-Clamp Cylinder Assy

3-1

XKCD-01334

XKCD-01334-. Body

3-2

XKCD-01336

XKCD-01336-. Seal

3-3

XKCD-01335

XKCD-01335-. Cover

3-4

XKCD-01337

XKCD-01337-. Plug

3-5

XKCD-00454

XKCD-00454-. O-Ring

38

P910-042023

P910-042023-Hose Assy-Orfs 0x0

39

P930-042024

P930-042024-Hose Assy-Orfs 0x90

40

P910-042024

P910-042024-Hose Assy-Orfs 0x0

41

P930-042029

P930-042029-Hose Assy-Orfs 0x90

42

P220-110203

P220-110203-Plug-Hex

45

S015-080606

S015-080606-Bolt-Hex

46

S035-082056

S035-082056-Bolt-W/Washer

47

S441-08000B

S441-08000B-Washer-Hardened

48

S611-012001

S611-012001-O-Ring

50

S621-011001

S621-011001-O-Ring

51

S621-012001

S621-012001-O-Ring

52

S631-011004

S631-011004-O-Ring

53

S631-014004

S631-014004-O-Ring

54

S690-054200

S690-054200-Grommet(For One Line)

56

P910-042025

P910-042025-Hose Assy-Orfs 0x0

58

31U2-70190

31U2-70190-Protector

6

31N4-20080

31N4-20080-Rcv Lever

7

31U2-10330

31U2-10330-Block

8

31U2-10360

31U2-10360-Plate Wa

Выбрано товаров: 52
