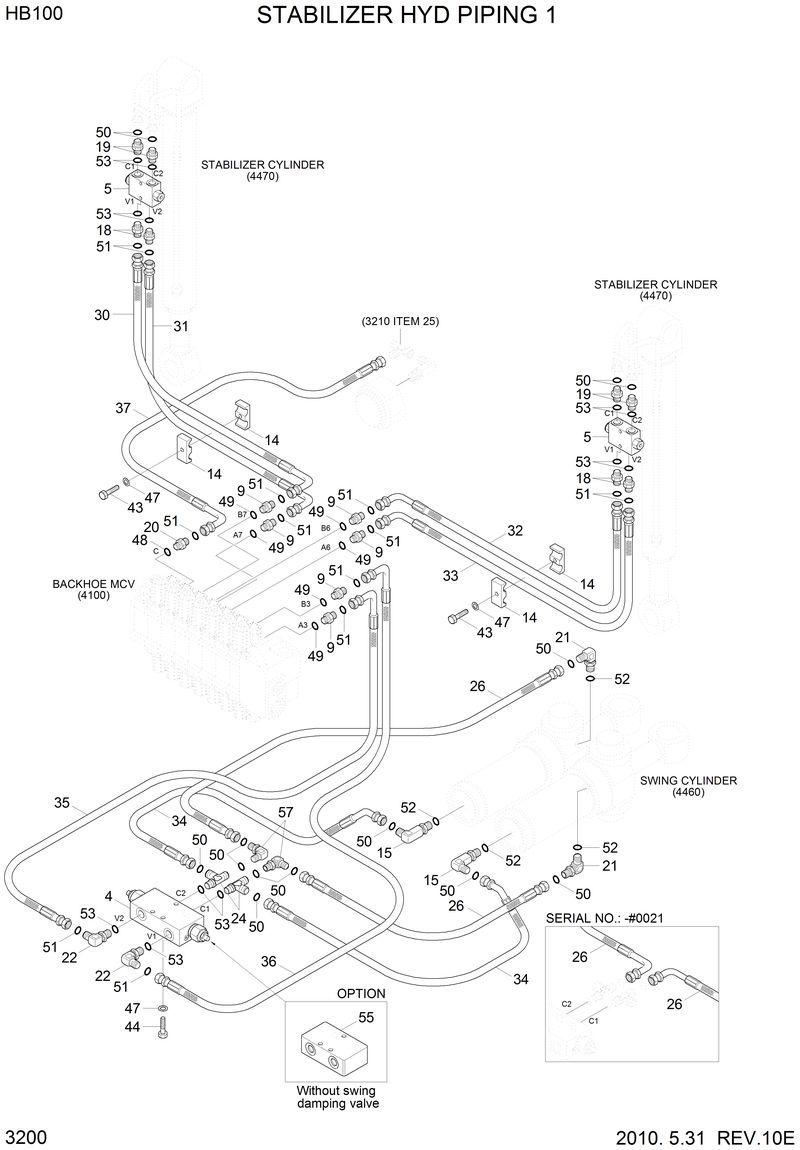

Запчасти Hyundai HB100 STABILIZER HYD PIPING 1

S621-011001

S621-011001-O-Ring

P913-046032

P913-046032-Hose Assy-Orfs 0x0

S621-011001

S621-011001-O-Ring

14

31U2-70130

31U2-70130-Clamp

15

31U2-70160

31U2-70160-Elbow-90,Orfs,Long

18

X500-110002

X500-110002-Connector-Orfs

19

X500-110013

X500-110013-Connector-Orfs

20

X500-310002

X500-310002-Connector-Orfs

21

X520-110001

X520-110001-Elbow-90,Orfs

22

X520-110002

X520-110002-Elbow-90,Orfs

24

X820-065151

X820-065151-Tee-R/Type,Orfs

26

P933-046032

P933-046032-Hose Assy-Orfs 0x90

30

P930-066027

P930-066027-Hose Assy-Orfs 0x90

31

P930-066028

P930-066028-Hose Assy-Orfs 0x90

32

P930-066032

P930-066032-Hose Assy-Orfs 0x90

33

P930-066033

P930-066033-Hose Assy-Orfs 0x90

34

P923-046032

P923-046032-Hose Assy-Orfs 0x45

35

P933-066014

P933-066014-Hose Assy-Orfs 0x90

36

P933-066015

P933-066015-Hose Assy-Orfs 0x90

37

P933-066030

P933-066030-Hose Assy-Orfs 0x90

4

31U2-70051

31U2-70051-Swing Damping Valve

43

S015-080406

S015-080406-Bolt-Hex

44

S015-080556

S015-080556-Bolt-Hex

47

S441-08000B

S441-08000B-Washer-Hardened

48

S611-012001

S611-012001-O-Ring

49

S611-023001

S611-023001-O-Ring

5

31U2-20210

31U2-20210-Double P/Check Valve

51

S621-012001

S621-012001-O-Ring

52

S631-011004

S631-011004-O-Ring

53

S631-014004

S631-014004-O-Ring

55

31U2-70180

31U2-70180-Block

57

X850-515100

X850-515100-Elbow-90,Swivel,Orfs

9

31FQ-80130

31FQ-80130-Connector-Orfs
