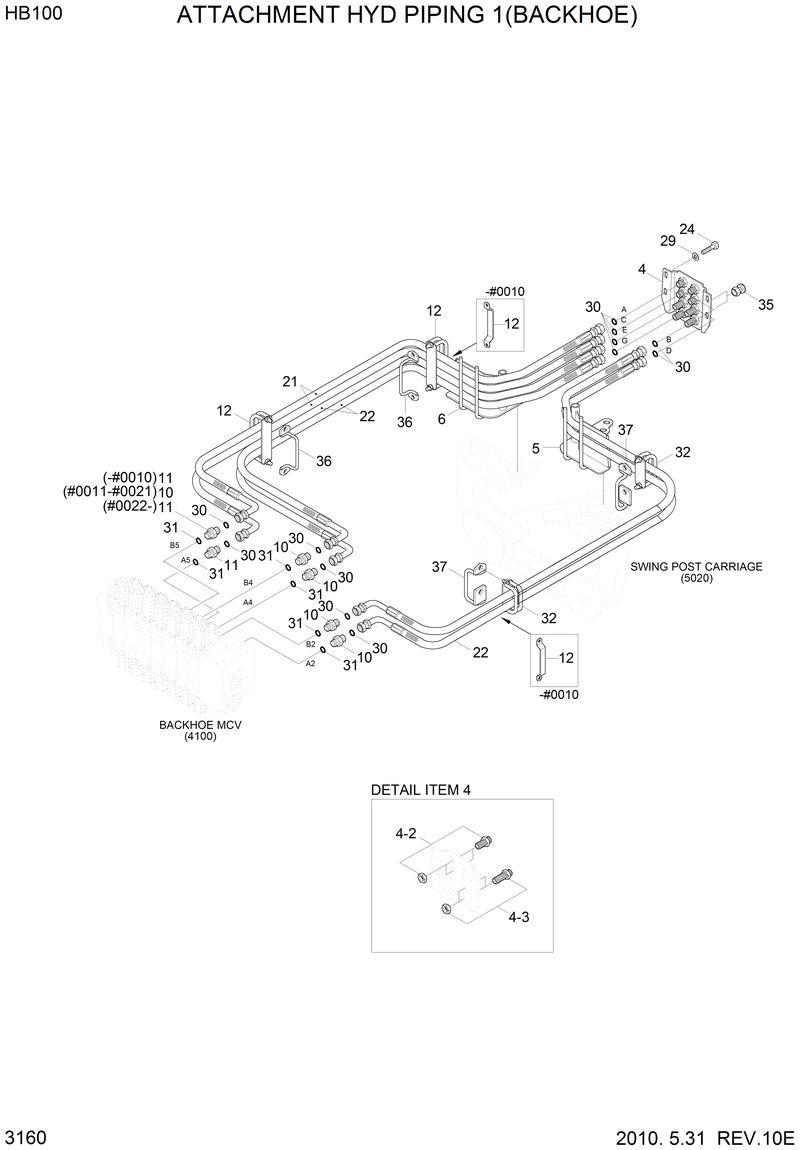

Запчасти Hyundai HB100 ATTACHMENT HYD PIPING 1 (BACKHOE)

31U2-30132

31U2-30132-Clamp-Hose

31U2-30150

31U2-30150-Hose Assy-Orfs 0x90

31U2-30133

31U2-30133-Clamp-Hose

31U2-30132

31U2-30132-Clamp-Hose

31U2-20590

31U2-20590-Connector

31U2-20670

31U2-20670-Connector

31U2-20670

31U2-20670-Connector

31U2-20670

31U2-20670-Connector

31U2-20590

31U2-20590-Connector

31U2-20590

31U2-20590-Connector

31U2-30160

31U2-30160-Hose Assy-Orfs 0x90

31U2-30141

31U2-30141-Clamp-Hose

31U2-30587

31U2-30587-Plate

31U2-30704

31U2-30704-Bracket-Rh

31U2-30714

31U2-30714-Bracket-Lh

21

P933-086031

P933-086031-Hose Assy-Orfs 0x90

22

P933-086032

P933-086032-Hose Assy-Orfs 0x90

24

S017-120306

S017-120306-Bolt-Hex

29

S441-12000B

S441-12000B-Washer-Hardened

30

S621-014001

S621-014001-O-Ring

31

S611-023001

S611-023001-O-Ring

32

31U2-30140

31U2-30140-Clamp-Hose

35

X710-100104

X710-100104-Cap-Hyd,Orfs

36

31U2-30191

31U2-30191-Clamp-Hose

37

31U2-30181

31U2-30181-Clamp-Hose

4

31U2-30585

31U2-30585-Plate

4-2

X540-120003

X540-120003-. Connector-Orfs

4-3

31MH-10330

31MH-10330-. Connector-Bulkhead

5

31U2-30703

31U2-30703-Bracket-Rh

6

31U2-30713

31U2-30713-Bracket-Lh
