Запчасти Hyundai HB100 PILOT HYD PIPING 3 (W/O PATTERN VALVE)

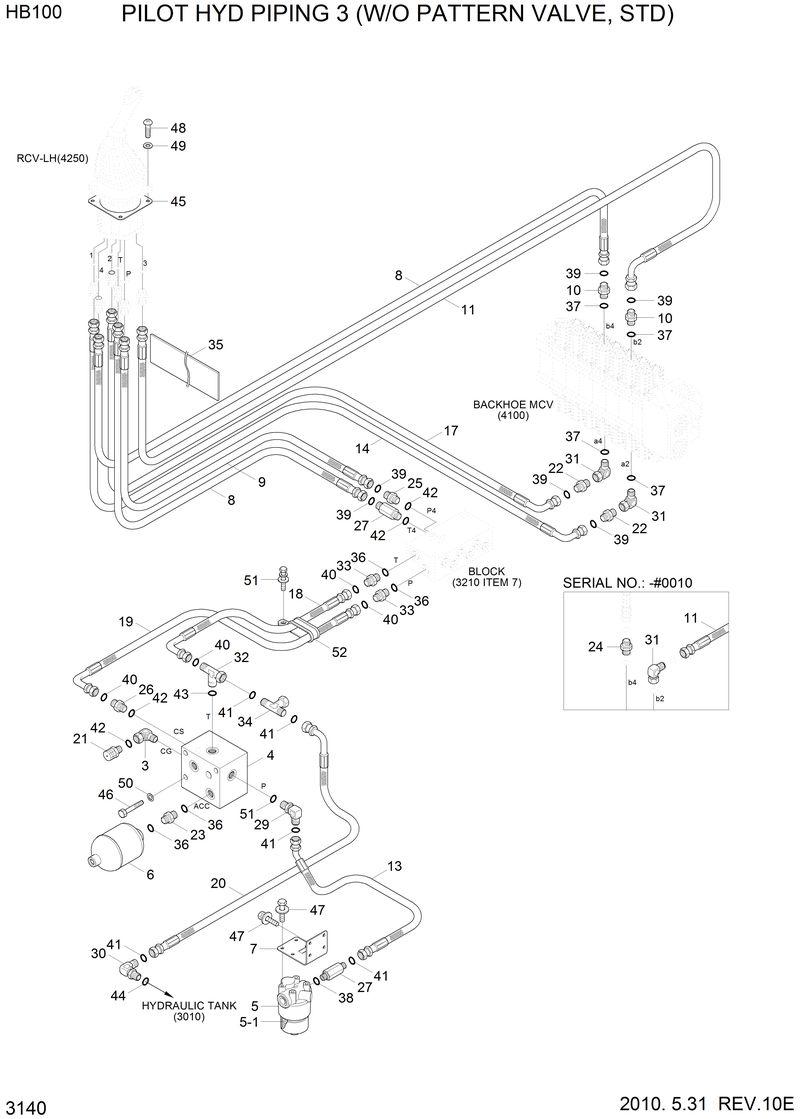

Схема запчастей Hyundai HB100 - PILOT HYD PIPING 3 (W/O PATTERN VALVE)

Артикул

Название

Примечание

Количество

P910-042016

P910-042016-Hose Assy-Orfs 0x0

34E7-03140

34E7-03140-Grommet

P930-042017

P930-042017-Hose Assy-Orfs 0x90

11

P910-042020

P910-042020-Hose Assy-Orfs 0x0

13

P920-086012

P920-086012-Hose Assy-Orfs 0x45

14

P930-042024

P930-042024-Hose Assy-Orfs 0x90

17

P930-042023

P930-042023-Hose Assy-Orfs 0x90

18

P930-062012

P930-062012-Hose Assy-Orfs 0x90

19

P930-064014

P930-064014-Hose Assy-Orfs 0x90

20

P930-082034

P930-082034-Hose Assy-Orfs 0x90

21

31EK-11130

31EK-11130-Coupling-Screw

22

31N4-22190

31N4-22190-Connector

23

31N6-24200

31N6-24200-Connector

24

31S7-00750

31S7-00750-Connector

25

X500-110001

X500-110001-Connector-Orfs

26

X500-110011

X500-110011-Connector-Orfs

27

31N8-40100

31N8-40100-Connector-Long,Orfs

29

X520-110013

X520-110013-Elbow-90,Orfs

3

31E5-11110

31E5-11110-Adapter

30

X520-110016

X520-110016-Elbow-90,Orfs

31

X520-310001

X520-310001-Elbow-90,Orfs

32

X810-085253

X810-085253-Tee-B/Type,Orfs

33

X500-110002

X500-110002-Connector-Orfs

34

X840-535153

X840-535153-Tee-R/Type,Swivel,Orfs

35

S791-100016

S791-100016-Grommet-Plate

36

S631-014004

S631-014004-O-Ring

37

S611-012001

S611-012001-O-Ring

38

S611-016001

S611-016001-O-Ring

39

S621-011001

S621-011001-O-Ring

4

31U2-10950

31U2-10950-Pilot Supply Unit

40

S621-012001

S621-012001-O-Ring

41

S621-014001

S621-014001-O-Ring

42

S631-011004

S631-011004-O-Ring

43

S631-018004

S631-018004-O-Ring

44

S631-024004

S631-024004-O-Ring

45

31M6-51061

31M6-51061-Shim(3.2t)

46

S017-101056

S017-101056-Bolt-Hex

47

S037-102056

S037-102056-Bolt-W/Washer

48

S175-060256

S175-060256-Screw-Socket Rd Hd

49

S403-06200B

S403-06200B-Washer-Plain

5

31U2-10610

31U2-10610-Filter-Line

50

S441-10000B

S441-10000B-Washer-Hardened

51

S035-081556

S035-081556-Bolt-W/Washer

52

31L7-10240

31L7-10240-Clamp-Tube

6

31E3-3187

31E3-3187-Accumulator

7

31U2-10081

31U2-10081-Plate Wa

8

P910-042018

P910-042018-Hose Assy-Orfs 0x0

Выбрано товаров: 47
