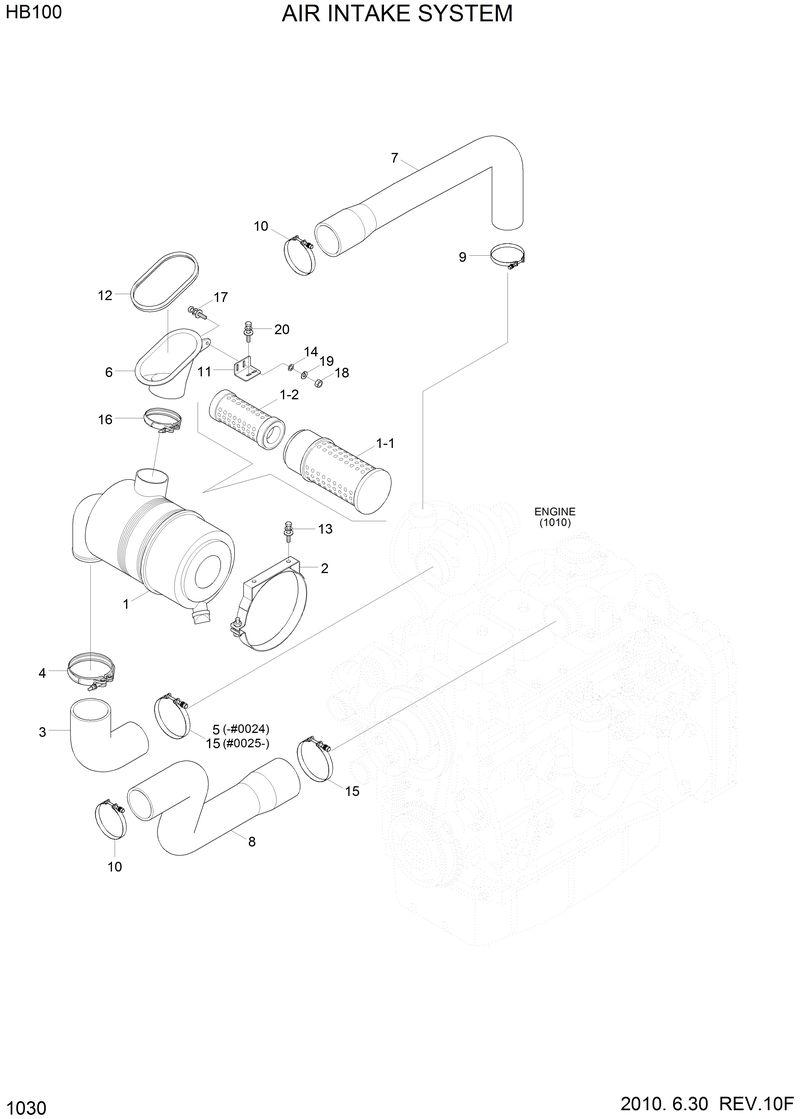

Запчасти Hyundai HB100 AIR INTAKE SYSTEM

11N6-20381

11N6-20381-Clamp-T/Bolt

11U2-40190

11U2-40190-Clamp-T-Retention

11U2-40190

11U2-40190-Clamp-T-Retention

1

11FQ-20050

11FQ-20050-Air Cleaner Assy

1-1

11FQ-20250

11FQ-20250-. Element Assy-Outer

1-2

11FQ-20150

11FQ-20150-. Element Assy-Inner

10

11N6-20332

11N6-20332-Clamp-T/Bolt

11

11U2-40201

11U2-40201-Bracket

12

S771-006100

S771-006100-Weather Strip

13

S035-082026

S035-082026-Bolt-W/Washer

14

S403-06200B

S403-06200B-Washer-Plain

16

S520-100000

S520-100000-Clamp-Hose

17

S035-062526

S035-062526-Bolt-W/Washer

18

S205-06100B

S205-06100B-Nut-Hex

19

S411-060006

S411-060006-Washer-Spring

2

11FQ-20020

11FQ-20020-Clamp-A/Cleaner

20

S035-062026

S035-062026-Bolt-W/Washer

3

11U2-40022

11U2-40022-Hose-Intake

4

11LB-40280

11LB-40280-Clamp-T Bolt

5

11N6-20341

11N6-20341-Clamp-T/Bolt

6

11U2-40042

11U2-40042-Duct - Inlet

7

11U2-40082

11U2-40082-Hose-Charged Air

8

11U2-40261

11U2-40261-Hose-Charged Air

9

11U2-40110

11U2-40110-Clamp-T-Retention
