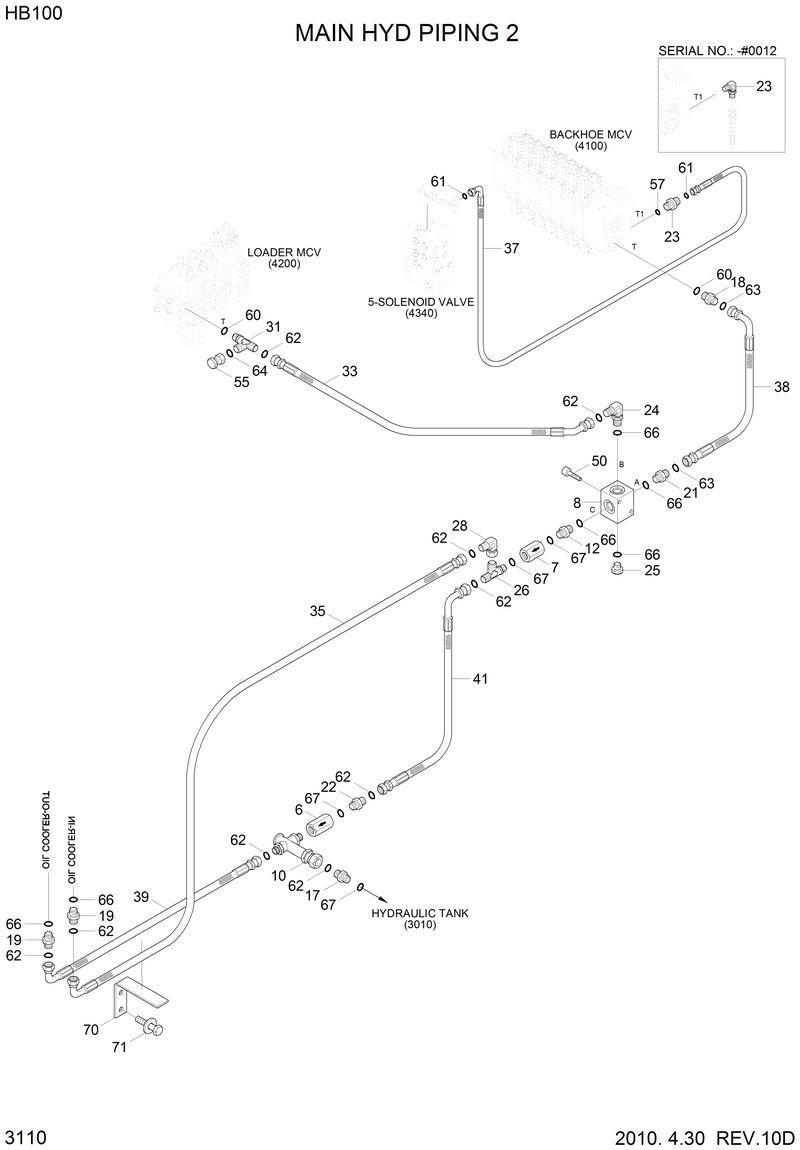

Запчасти Hyundai HB100 MAIN HYD PIPING 2

31S7-00750

31S7-00750-Connector

10

31U2-00073

31U2-00073-Pipe Wa

12

31U2-00180

31U2-00180-Connector

17

X500-110005

X500-110005-Connector-Orfs

18

X500-310005

X500-310005-Connector-Orfs

19

X500-110004

X500-110004-Connector-Orfs

21

X500-110016

X500-110016-Connector-Orfs

22

X500-110019

X500-110019-Connector-Orfs

23

X520-310001

X520-310001-Elbow-90,Orfs

24

X520-110004

X520-110004-Elbow-90,Orfs

25

P220-110105

P220-110105-Plug-Hex

26

X820-165454

X820-165454-Tee-R/Type,Orfs

28

X850-545400

X850-545400-Elbow-90,Swivel,Orfs

31

31FT-20360

31FT-20360-Tee

33

P920-122011

P920-122011-Hose Assy-Orfs 0x45

35

P933-122045

P933-122045-Hose Assy-Orfs 0x90

37

P933-042018

P933-042018-Hose Assy-Orfs 0x90

38

P933-162017

P933-162017-Hose Assy-Orfs 0x90

39

P933-122034

P933-122034-Hose Assy-Orfs 0x90

41

P930-122011

P930-122011-Hose Assy-Orfs 0x90

50

S109-100806

S109-100806-Bolt-Socket

55

X710-100104

X710-100104-Cap-Hyd,Orfs

57

S611-012001

S611-012001-O-Ring

6

31U2-00141

31U2-00141-Return Check V/V

60

S611-030001

S611-030001-O-Ring

61

S621-011001

S621-011001-O-Ring

62

S621-018001

S621-018001-O-Ring

63

S621-021001

S621-021001-O-Ring

64

S621-014001

S621-014001-O-Ring

66

S631-024004

S631-024004-O-Ring

67

S631-029004

S631-029004-O-Ring

7

31U2-00161

31U2-00161-Bypass Check V/V

70

31U2-00260

31U2-00260-Plate

71

S035-082056

S035-082056-Bolt-W/Washer

8

31U2-00170

31U2-00170-Block
