Запчасти Hyundai HB100 STEERING HYD PIPING

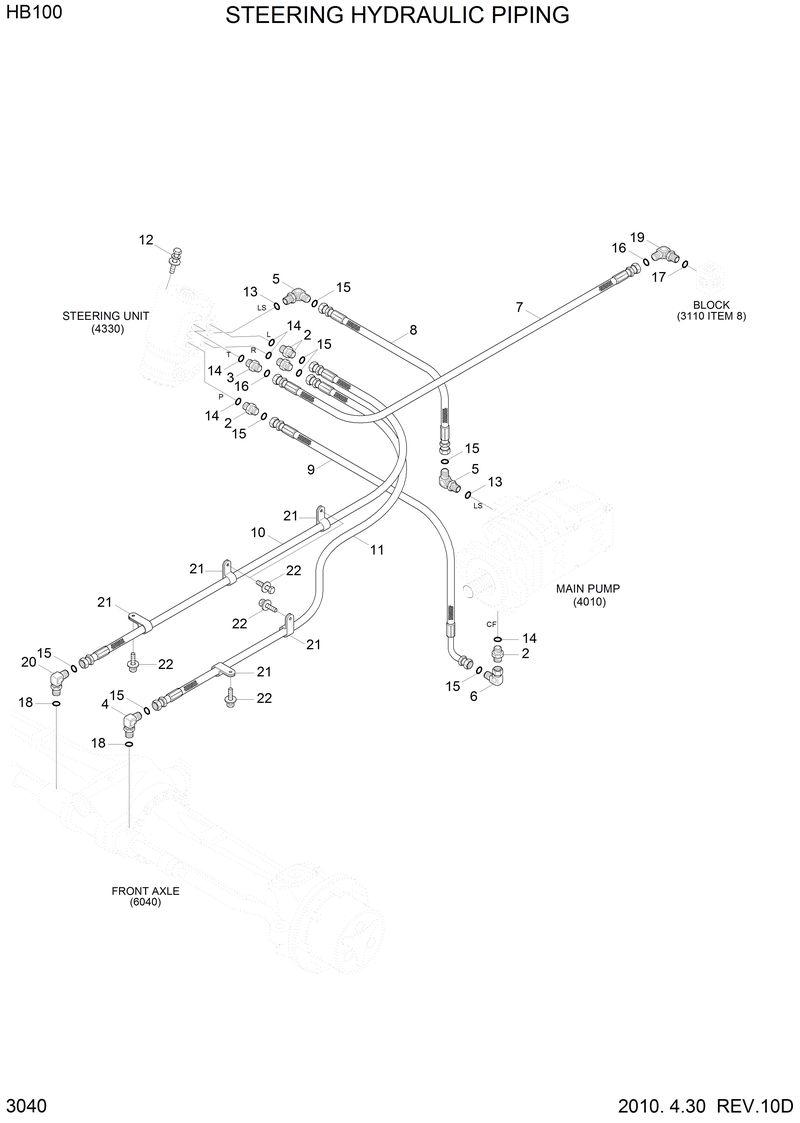

Схема запчастей Hyundai HB100 - STEERING HYD PIPING

Артикул

Название

Примечание

Количество

S035-081556

S035-081556-Bolt-W/Washer

S037-103056

S037-103056-Bolt-W/Washer

10

P913-066050

P913-066050-Hose Assy-Orfs 0x0

11

P913-066042

P913-066042-Hose Assy-Orfs 0x0

12

S109-100306

S109-100306-Bolt-Socket

13

S611-009001

S611-009001-O-Ring

14

S611-016001

S611-016001-O-Ring

15

S621-012001

S621-012001-O-Ring

16

S621-014001

S621-014001-O-Ring

17

S631-024004

S631-024004-O-Ring

18

S611-012001

S611-012001-O-Ring

19

X520-110016

X520-110016-Elbow-90,Orfs

2

31S8-20180

31S8-20180-Connector

20

31LB-10250

31LB-10250-Elbow-90,Orfs

21

31L7-10220

31L7-10220-Clamp-Tube

22

S035-082056

S035-082056-Bolt-W/Washer

3

X500-310003

X500-310003-Connector-Orfs

4

31FG-70030

31FG-70030-Elbow-90

5

31LB-40350

31LB-40350-Elbow-90

6

X850-525200

X850-525200-Elbow-90,Swivel,Orfs

7

P910-082029

P910-082029-Hose Assy-Orfs 0x0

8

P910-066014

P910-066014-Hose Assy-Orfs 0x0

9

P930-066022

P930-066022-Hose Assy-Orfs 0x90

Выбрано товаров: 23
