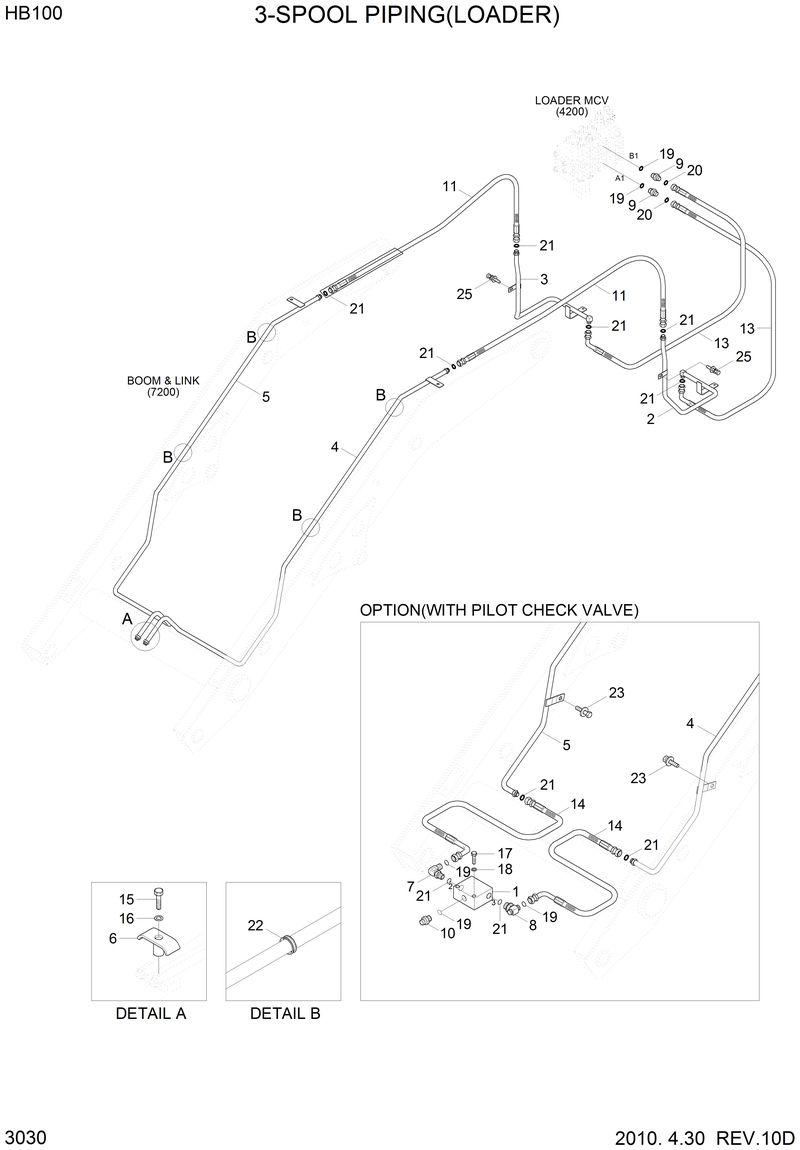

Запчасти Hyundai HB100 3-SPOOL HYD PIPING (LOADER)

31U4-20262

31U4-20262-Pipe Assy-Lh

P933-066008

P933-066008-Hose Assy-Orfs 0x90

31U2-20644

31U2-20644-Pipe Assy-Rh

31U2-10552

31U2-10552-Clamp-Pipe

31U2-20655

31U2-20655-Pipe Assy-Lh

31U4-20272

31U4-20272-Pipe Assy-Rh

S611-023001

S611-023001-O-Ring

S611-023001

S611-023001-O-Ring

31U4-20271

31U4-20271-Pipe Assy-Rh

S621-012001

S621-012001-O-Ring

S621-012001

S621-012001-O-Ring

31U2-20665

31U2-20665-Pipe Assy-Rh

31U4-20261

31U4-20261-Pipe Assy-Lh

31U2-20624

31U2-20624-Pipe Assy-Lh

1

31U2-90110

31U2-90110-Pilot Check Valve

10

31FQ-80130

31FQ-80130-Connector-Orfs

11

P910-066015

P910-066015-Hose Assy-Orfs 0x0

13

P920-086017

P920-086017-Hose Assy-Orfs 0x45

14

P930-066008

P930-066008-Hose Assy-Orfs 0x90

15

S017-120456

S017-120456-Bolt-Hex

16

S403-12200B

S403-12200B-Washer-Plain

17

S015-080656

S015-080656-Bolt-Hex

18

S441-08000B

S441-08000B-Washer-Hardened

2

31U2-20623

31U2-20623-Pipe Assy-Lh

20

S621-014001

S621-014001-O-Ring

22

S681-190800

S681-190800-Grommet

23

S037-102056

S037-102056-Bolt-W/Washer

25

S037-104056

S037-104056-Bolt-W/Washer

3

31U2-20643

31U2-20643-Pipe Assy-Rh

4

31U2-20654

31U2-20654-Pipe Assy-Lh

5

31U2-20664

31U2-20664-Pipe Assy-Rh

6

31U2-10551

31U2-10551-Plate

7

31U4-20230

31U4-20230-Elbow-90

8

31U4-20240

31U4-20240-Tee

9

31FG-20060

31FG-20060-Connector
