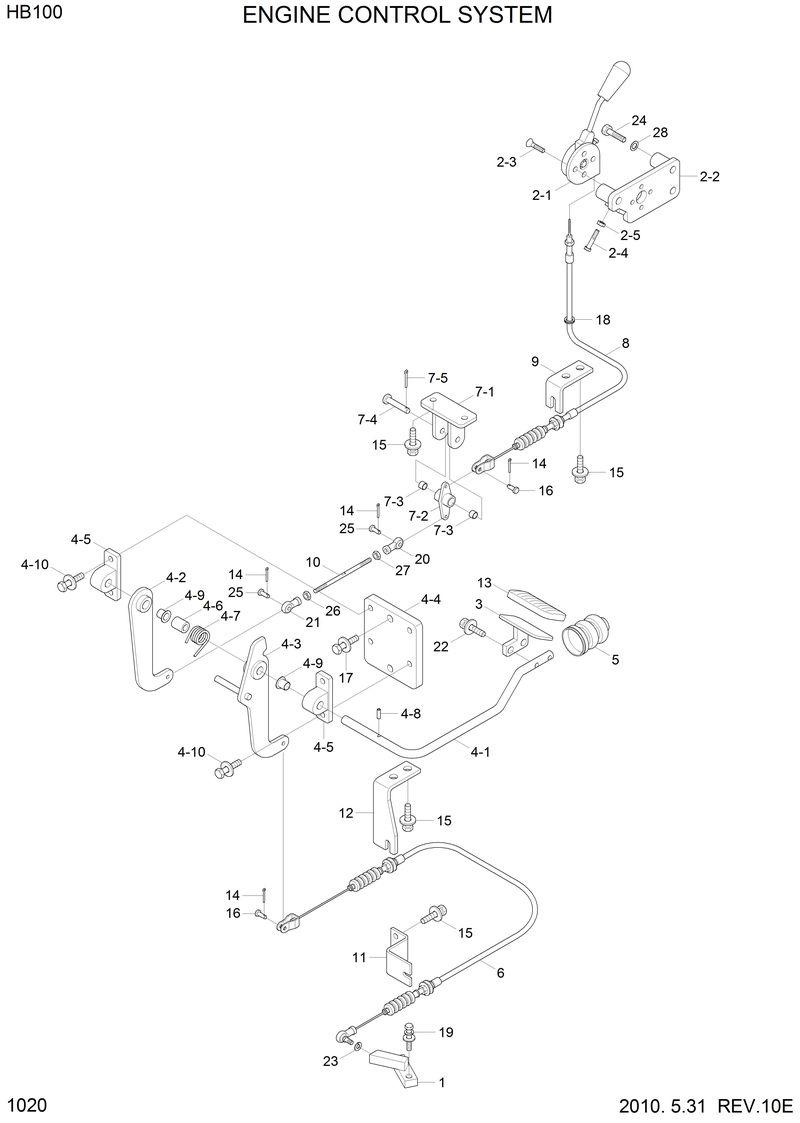

Запчасти Hyundai HB100 ENGINE CONTROL SYSTEM

11U2-10433

11U2-10433-. Lever Wa

11U2-10531

11U2-10531-Rod

11U2-10602

11U2-10602-Pull Cable Assy

11U2-10094

11U2-10094-Pedal

S441-08000B

S441-08000B-Washer-Hardened

11U2-10413

11U2-10413-Pedal Assy

11U2-10054

11U2-10054-. Lever

11U2-10423

11U2-10423-. Lever Wa

1

11U2-10701

11U2-10701-Lever

10

11U2-10530

11U2-10530-Rod

11

11U2-10560

11U2-10560-Plate

12

11U2-10581

11U2-10581-Plate

13

81FA-40230

81FA-40230-Rubber-Pedal

14

S461-160182

S461-160182-Pin-Split

15

S037-102556

S037-102556-Bolt-W/Washer

16

S491-060182

S491-060182-Pin-Clevis

17

S037-123056

S037-123056-Bolt-W/Washer

18

S681-190800

S681-190800-Grommet

19

S035-062026

S035-062026-Bolt-W/Washer

2

11U2-10501

11U2-10501-Lever Assy

2-1

11U2-10540

11U2-10540-. Lever Assy

2-2

11U2-10521

11U2-10521-. Bracket Wa

2-3

S141-080146

S141-080146-. Screw-Flat Hd

2-4

S015-050506

S015-050506-. Bolt-Hex

2-5

S203-051006

S203-051006-. Nut-Hex

20

S923-106000

S923-106000-Rod End-Metric

21

S923-206000

S923-206000-Rod End-Metric

22

S035-082556

S035-082556-Bolt-W/Washer

23

S411-080006

S411-080006-Washer-Spring

24

S015-080556

S015-080556-Bolt-Hex

25

S491-060222

S491-060222-Pin-Clevis

26

11U3-10090

11U3-10090-Nut-Hex Left Thread

27

S205-06100B

S205-06100B-Nut-Hex

3

11U2-10093

11U2-10093-Pedal

4

11U2-10412

11U2-10412-Pedal Assy

4-1

11U2-10053

11U2-10053-. Lever

4-10

S037-102556

S037-102556-. Bolt-W/Washer

4-2

11U2-10421

11U2-10421-. Lever Wa

4-3

11U2-10431

11U2-10431-. Lever Wa

4-4

11U2-10080

11U2-10080-. Plate

4-5

11U2-10160

11U2-10160-. Bracket Wa

4-6

11U2-10440

11U2-10440-. Spacer

4-7

11U2-10610

11U2-10610-. Spring

4-8

S471-500322

S471-500322-. Pin-Spring

4-9

S741-141522

S741-141522-. Du Busingh-Flange

5

11U2-10190

11U2-10190-Boot-Rubber

6

11U2-10511

11U2-10511-Pull Cable Assy

7

11U2-10490

11U2-10490-Link Assy

7-1

11U2-10480

11U2-10480-. Plate Wa

7-2

11U2-10470

11U2-10470-. Link Wa

7-3

S731-012010

S731-012010-. Bushing-Du

7-4

S491-120652

S491-120652-. Pin-Clevis

7-5

S461-160252

S461-160252-. Pin-Split

8

11U2-10601

11U2-10601-Cable Assy-Pull

9

11U2-10590

11U2-10590-Plate
