Запчасти Hyundai HB100 M-DISC BRAKE

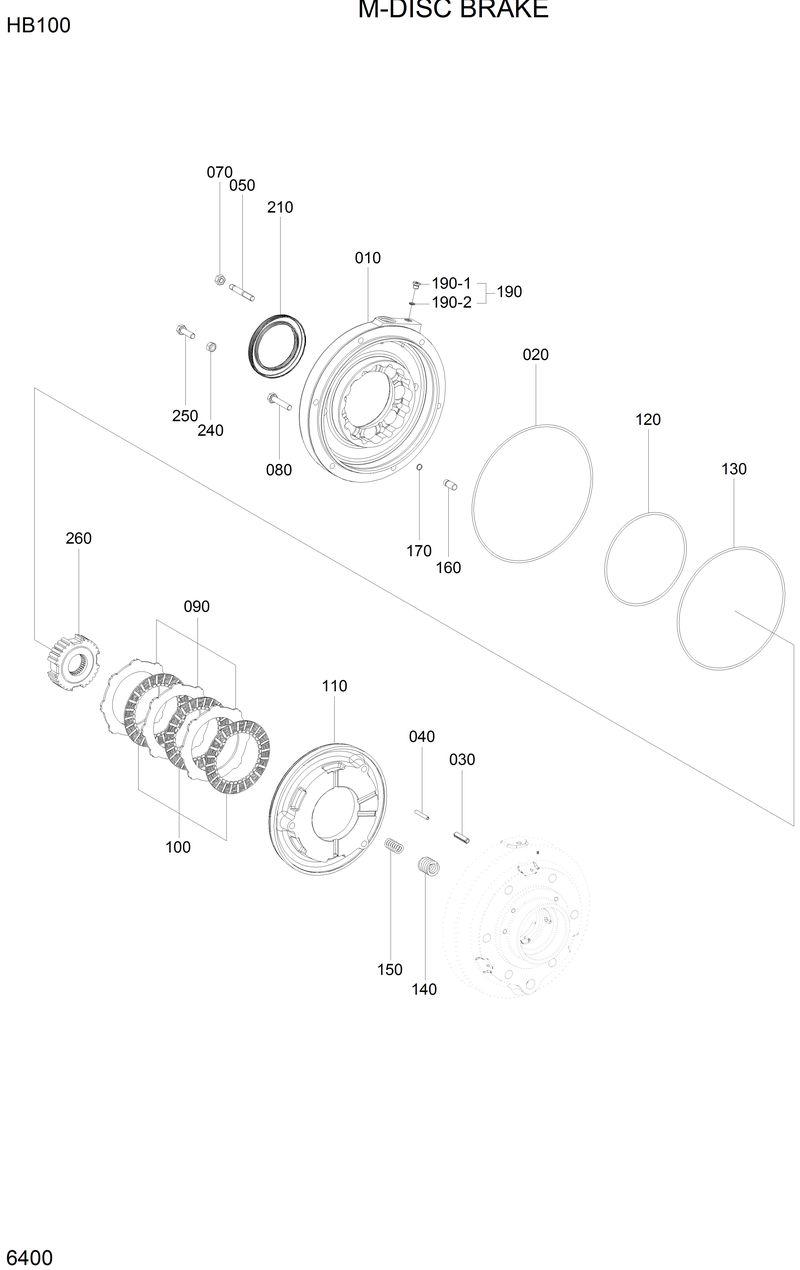

Схема запчастей Hyundai HB100 - M-DISC BRAKE

Артикул

Название

Примечание

Количество

020

ZGAQ-03463

ZGAQ-03463-O-Ring

030

ZGAQ-01211

ZGAQ-01211-Pin-Slot

040

ZGAQ-03524

ZGAQ-03524-Pin-Slot

050

ZGAQ-03525

ZGAQ-03525-Stud

070

ZGAQ-01382

ZGAQ-01382-Nut-Hex

080

ZGAQ-03443

ZGAQ-03443-Slotted Ring

080

ZGAQ-00249

ZGAQ-00249-Screw-Hex

090

ZGAQ-03526

ZGAQ-03526-Disc-Outer Clutch

090

ZGAQ-03444

ZGAQ-03444-Backup Ring

100

ZGAQ-03445

ZGAQ-03445-Slotted Ring

100

ZGAQ-03527

ZGAQ-03527-Disc-Inner Clutch

110

ZGAQ-03528

ZGAQ-03528-Piston

110

ZGAQ-03446

ZGAQ-03446-Backup Ring

120

ZGAQ-03447

ZGAQ-03447-Disc-Outer Clutch

120

ZGAQ-03529

ZGAQ-03529-O-Ring

130

ZGAQ-03448

ZGAQ-03448-Disc-Inner Clutch

130

ZGAQ-03530

ZGAQ-03530-O-Ring

140

ZGAQ-03449

ZGAQ-03449-Carrier-Disc

140

ZGAQ-03531

ZGAQ-03531-Spring-Compression

150

ZGAQ-03532

ZGAQ-03532-Spring-Compression

150

ZGAQ-03450

ZGAQ-03450-Disc-Inner Clutch

160

ZGAQ-03451

ZGAQ-03451-Disc Carrier

160

ZGAQ-03533

ZGAQ-03533-Stud

170

ZGAQ-03452

ZGAQ-03452-Ring

170

ZGAQ-02066

ZGAQ-02066-O-Ring

180

ZGAQ-03453

ZGAQ-03453-Piston

190

@

@-Plug-Screw

190

ZGAQ-03454

ZGAQ-03454-Cup Spring

190-1

ZGAQ-00230

ZGAQ-00230-. Plug-Screw

190-2

ZGAQ-00231

ZGAQ-00231-. O-Ring

200

ZGAQ-03455

ZGAQ-03455-Circlip

210

ZGAQ-03456

ZGAQ-03456-Slot Pin

210

ZGAQ-03534

ZGAQ-03534-Seal-Shaft

220

ZGAQ-03457

ZGAQ-03457-Vent Valve

240

ZGAQ-03535

ZGAQ-03535-Nut-Hex

250

ZGAQ-03536

ZGAQ-03536-Screw-Hex

260

ZGAQ-03537

ZGAQ-03537-Carrier-Disc

260

ZGAQ-03028

ZGAQ-03028-Plug-Screw

270

ZGAQ-00149

ZGAQ-00149-Ring-Retaining

280

ZGAQ-03458

ZGAQ-03458-Cap Screw

290

ZGAQ-03459

ZGAQ-03459-Washer

310

ZGAQ-03460

ZGAQ-03460-Washer

320

ZGAQ-03461

ZGAQ-03461-Cup Spring

330

ZGAQ-02935

ZGAQ-02935-Ring-Retainer

N010

ZGAQ-03523

ZGAQ-03523-Housing

Выбрано товаров: 45
