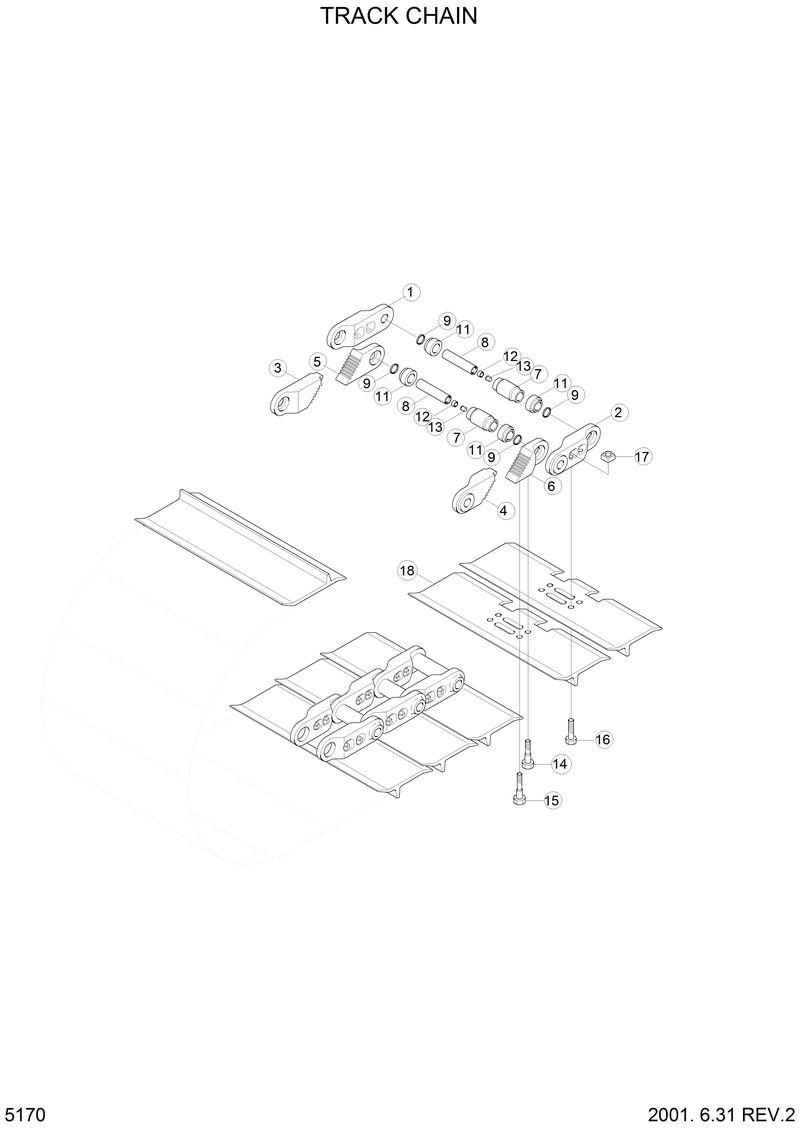

Запчасти Hyundai H80 TRACK CHAIN

CR4358/25

CR4358/25-. Shoe-Single Grouser

85D2-80020

85D2-80020-Track Chain Assy

*

85D2-80010

85D2-80010-Track Chain Assy

*-1

CR5192/37

CR5192/37-. Track Link Assy

1

CR5193

CR5193-.. Link-Rh

11

CR5422

CR5422-.. Seal

12

CR3687

CR3687-.. Stopper-Rubber

13

CR3685A

CR3685A-.. Plug-Plastic

14

CR4357

CR4357-. Bolt-Master Link

15

CR3570

CR3570-. Bolt-Master Link

16

AC226A

AC226A-. Bolt-Track Shoe

17

CR1250B

CR1250B-. Nut-Track Shoe

18

CR4358/16

CR4358/16-. Shoe-Single Grouser

2

CR5194

CR5194-.. Link-Lh

3

CR4350

CR4350-.. Half Master Link-Rh

4

CR4352

CR4352-.. Half Master Link-Lh

5

CR5195

CR5195-.. Half Master Link-Rh

6

CR5196

CR5196-.. Half Master Link-Lh

7

CR4353

CR4353-.. Bushing

8

CR5197

CR5197-.. Pin

9

CR5165

CR5165-.. Ring-Thrust
