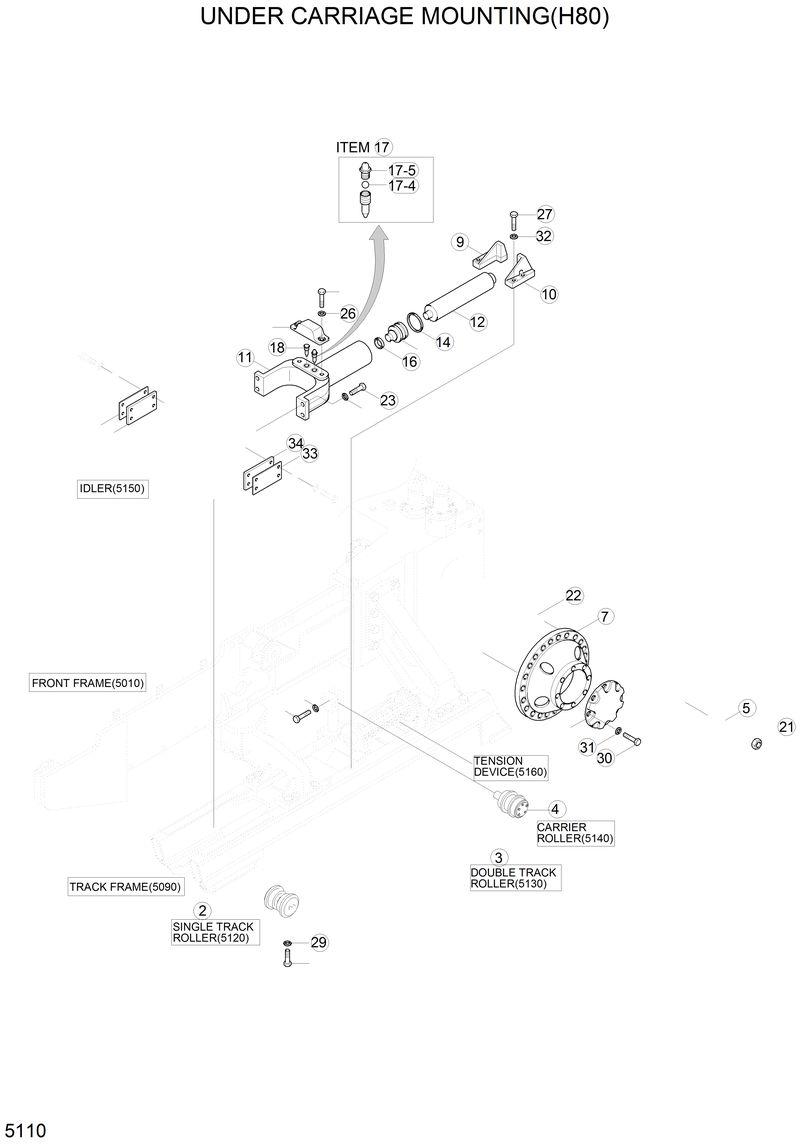

Запчасти Hyundai H80 UNDER CARRIAGE MOUNTING

85D2-70210

85D2-70210-Hub-Sprocket

10

85D1-70110

85D1-70110-Stopper-Lh

11

85D1-70122

85D1-70122-Yoke-Idler

12

85D2-70100

85D2-70100-Rod-Adjust

14

85D1-70180

85D1-70180-Seal

15

85D1-70191

85D1-70191-Body

16

85D1-70390

85D1-70390-Seal

17

85D1-70430

85D1-70430-Grease Valve Assy

17-4

Y890-014031

Y890-014031-. Ball-Steel

17-5

S651-810002

S651-810002-. Grease-Nipple

18

85D1-70440

85D1-70440-Plug-Grease

19

85D1-70211

85D1-70211-Cover

2

85D2-70020

85D2-70020-Single Track Roller

20

85D2-70120

85D2-70120-Washer-Hardened

21

S205-161002

S205-161002-Nut-Hex

22

S017-160502

S017-160502-Bolt-Hex

23

S087-080282

S087-080282-Bolt-Hex

24

S017-120202

S017-120202-Bolt-Hex

25

S017-160702

S017-160702-Bolt-Hex

26

S441-120002

S441-120002-Washer-Hardened

27

S017-160552

S017-160552-Bolt-Hex

28

S017-161002

S017-161002-Bolt-Hex

29

S441-160002

S441-160002-Washer-Hardened

3

85D2-70030

85D2-70030-Double Track Roller

30

S017-200702

S017-200702-Bolt-Hex

31

S441-200002

S441-200002-Washer-Hardened

32

S411-160002

S411-160002-Washer-Spring

33

85D1-70070

85D1-70070-Shim(0.5mm)

34

85D1-70080

85D1-70080-Shim(1.0mm)

4

85D2-70040

85D2-70040-Carrier Roller

5

85D2-70050

85D2-70050-Sprocket Assy

6

85D2-70060

85D2-70060-Collar-Roller

7

85D2-70080

85D2-70080-Hub-Sprocket

8

85D1-70311

85D1-70311-Cap-Hub

9

85D1-70100

85D1-70100-Stopper-Rh

N11

85D2-70090

85D2-70090-Yoke-Idler

N5-1

85D2-70070

85D2-70070-. Segment-Sprocket
