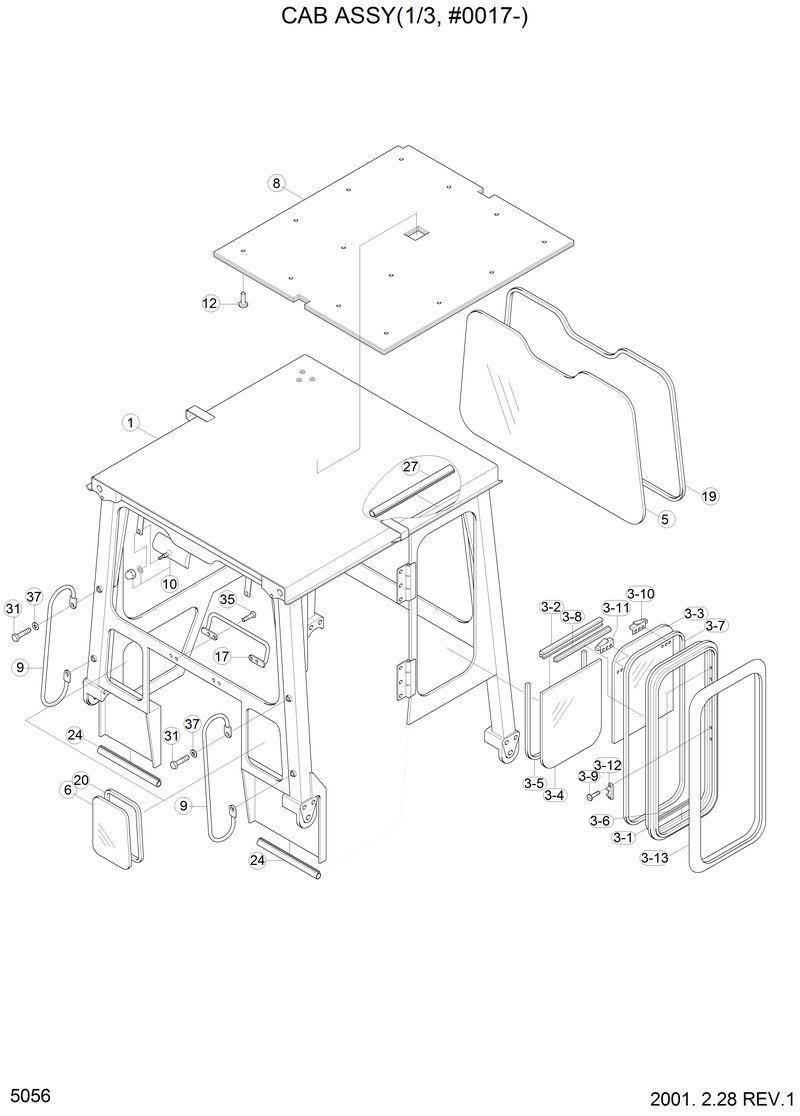

Запчасти Hyundai H80 CAB ASSY(1/3, #0017-)

*

@

@-Cab Assy

1

75D2-05020

75D2-05020-. Cab Wa

10

71L1-3377

71L1-3377-. Mirror-Room

12

E171-1310

E171-1310-. Plug

17

75D1-05151

75D1-05151-. Handle

19

S781-130401

S781-130401-. Seal

20

S781-109501

S781-109501-. Seal

24

S772-003900

S772-003900-. Weather Strip

27

S771-006100

S771-006100-. Weather Strip

3

75D1-05042

75D1-05042-. Sash Assy-Lh

3-1

75D1-05421

75D1-05421-.. Sash-Al

3-10

71L1-3332

71L1-3332-.. Lock-Lh

3-11

71L1-3353

71L1-3353-.. Lock-Rh

3-12

S141-030062

S141-030062-.. Screw

3-13

75D1-05170

75D1-05170-.. Seal

3-2

75D1-05390

75D1-05390-.. Sash-Al

3-3

75D1-05432

75D1-05432-.. Glass-Out

3-4

75D1-05442

75D1-05442-.. Glass-In

3-5

75D1-05450

75D1-05450-.. Seal-In

3-6

75D1-05460

75D1-05460-.. Stopper-Glass

3-7

75D1-05370

75D1-05370-.. Seal-Out

3-8

75D1-05410

75D1-05410-.. Seal-Mid

3-9

71L1-3328

71L1-3328-.. Block

31

S017-120256

S017-120256-. Bolt-Hex

35

S057-080202

S057-080202-. Bolt-Hex,Flanged

37

S441-120006

S441-120006-. Washer-Hardened

5

75D2-05060

75D2-05060-. Glass

6

75D2-05070

75D2-05070-. Glass

8

75D1-05092

75D1-05092-. Lining-Head

9

75D1-00111

75D1-00111-. Handrail
