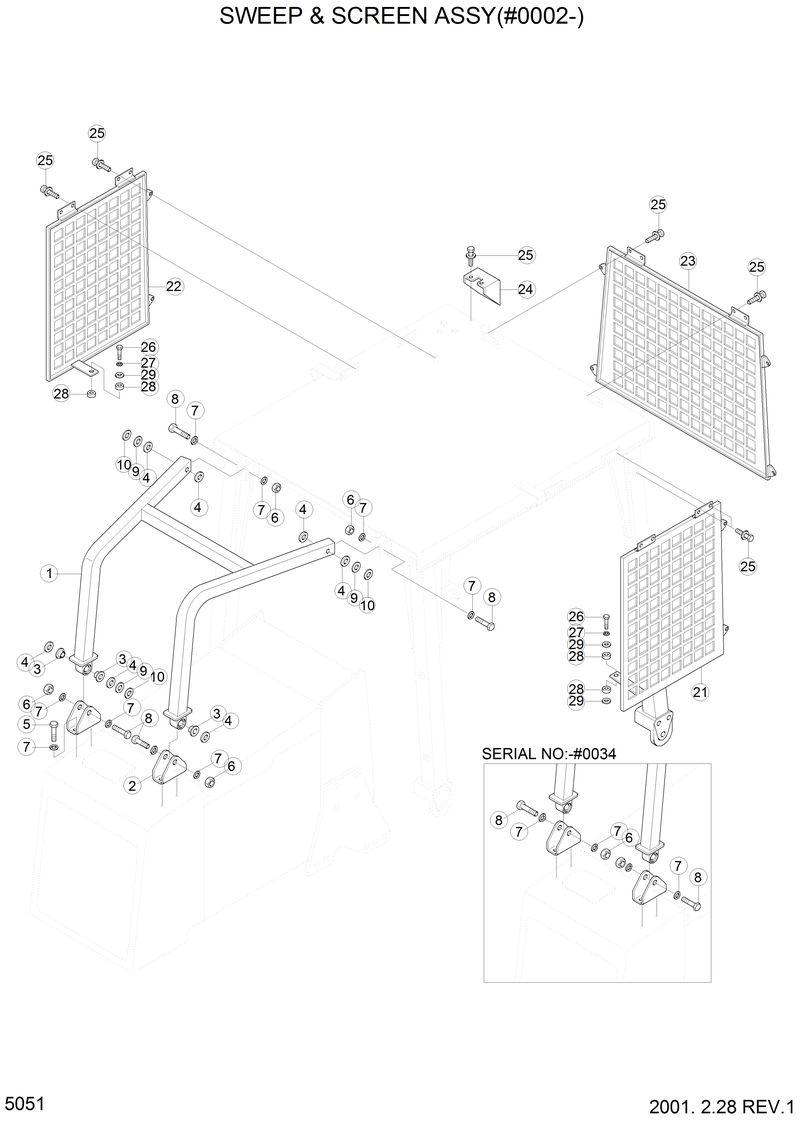

Запчасти Hyundai H80 SWEEP & SCREEN ASSY(#0002-)

*

75D2-01600

75D2-01600-Sweep Assy-Front

*

75D1-01620

75D1-01620-Screen Assy-Rear

*

75D1-01630

75D1-01630-Screen Assy-Side & Rear

*

75D1-01610

75D1-01610-Screen Assy-Side

1

75D2-06110

75D2-06110-. Front Sweep Wa

10

S391-025085

S391-025085-. Shim(1.0mm)

2

75D2-06120

75D2-06120-. Bracket

21

75D1-07011

75D1-07011-. Side Screen Wa-Lh

21

75D1-07011

75D1-07011-. Side Screen Wa-Lh

22

75D1-07021

75D1-07021-. Side Screen Wa-Rh

22

75D1-07021

75D1-07021-. Side Screen Wa-Rh

23

75D1-07031

75D1-07031-. Rear Screen Wa

23

75D1-07031

75D1-07031-. Rear Screen Wa

24

75D1-07041

75D1-07041-. Guard-Lamp

24

75D1-07041

75D1-07041-. Guard-Lamp

25

S037-102052

S037-102052-. Bolt-W/Washer

25

S037-102052

S037-102052-. Bolt-W/Washer

25

S037-102052

S037-102052-. Bolt-W/Washer

26

S017-100502

S017-100502-. Bolt-Hex

26

S017-100502

S017-100502-. Bolt-Hex

27

S411-100002

S411-100002-. Washer-Spring

27

S411-100002

S411-100002-. Washer-Spring

28

905733100

905733100-. Cushion-Rubber

28

905733100

905733100-. Cushion-Rubber

29

900063101

900063101-. Washer

29

900063101

900063101-. Washer

3

75D1-00090

75D1-00090-. Bushing

4

75D1-00100

75D1-00100-. Washer-Bushing

5

S017-240552

S017-240552-. Bolt-Hex

6

S205-241002

S205-241002-. Nut-Hex

7

S441-240002

S441-240002-. Washer-Hardened

8

S017-241502

S017-241502-. Bolt-Hex

9

S390-025085

S390-025085-. Shim(0.5mm)
