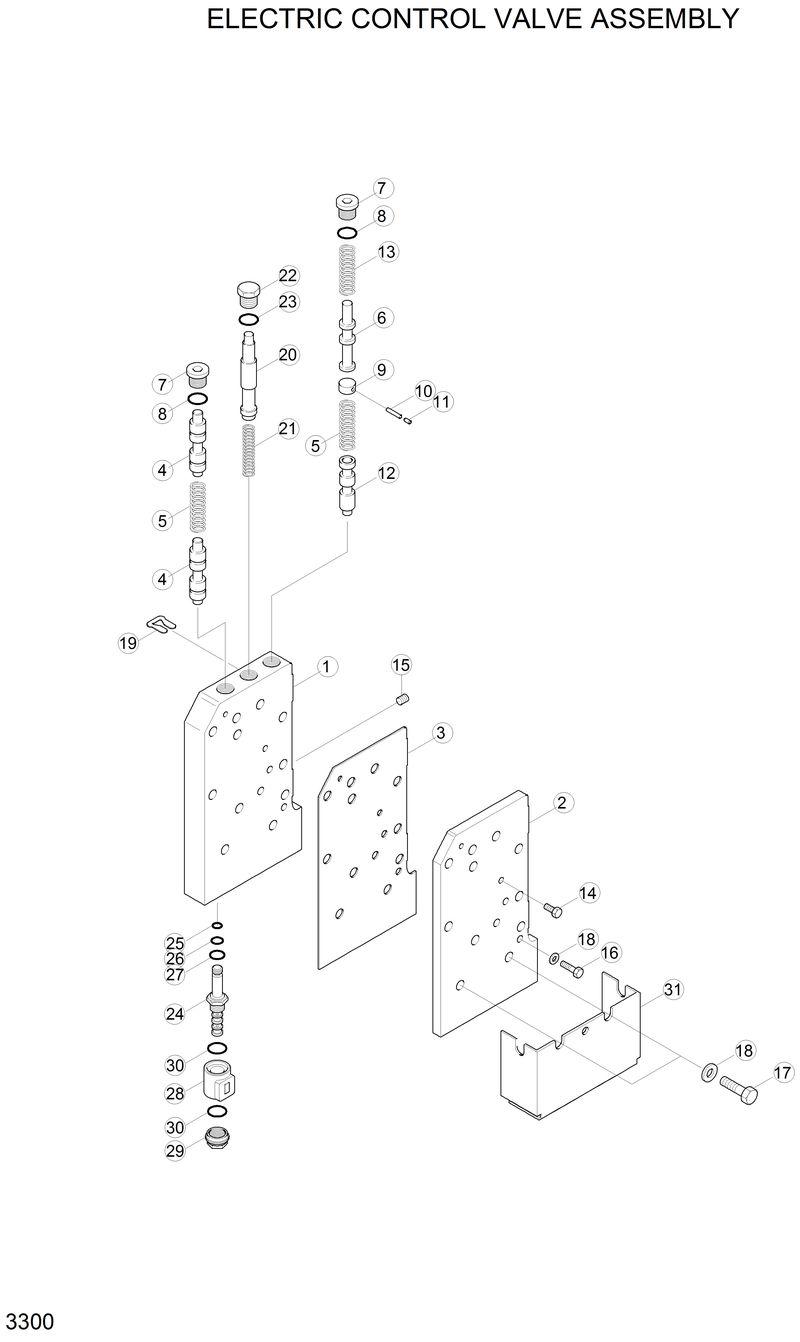

Запчасти Hyundai H80 ELECTRIC CONTROL VALVE ASSEMBLY

*

4205530

4205530-Control Valve Assy

1

246021

246021-. Housing-Control Vlv

10

1JM5024

1JM5024-. Pin-Roll

11

4200274

4200274-. Plug-Stop

12

246018

246018-. Spool-Range

13

246016

246016-. Spring

13

246016

246016-. Spring

14

40K2

40K2-. Plug-Pipe

15

239244

239244-. Plug

17

1C624

1C624-. Screw

17

1C624

1C624-. Screw

18

4E6

4E6-. Washer-Lock

19

234170

234170-. Stop-Spool

2

244842

244842-. Cover-Control Vlv

20

234185

234185-. Spool

21

234181

234181-. Spring

22

24K7

24K7-. Plug

23

91F7

91F7-.. O-Ring

24

246356

246356-. Valve-Ball

25

76K012

76K012-.. O-Ring

26

76K013

76K013-.. O-Ring

27

78K8

78K8-.. O-Ring

28

4206820

4206820-. Coil

29

249152

249152-. Nut-Solenoid

3

247616

247616-. Gasket

30

76K20

76K20-. O-Ring

31

4205531

4205531-. Cover-Solenoid

4

246015

246015-. Spool-Shift

6

246017

246017-. Spool-Range

7

47K6

47K6-. Plug

8

91F6

91F6-.. O-Ring

9

241118

241118-. Stop-Spool
