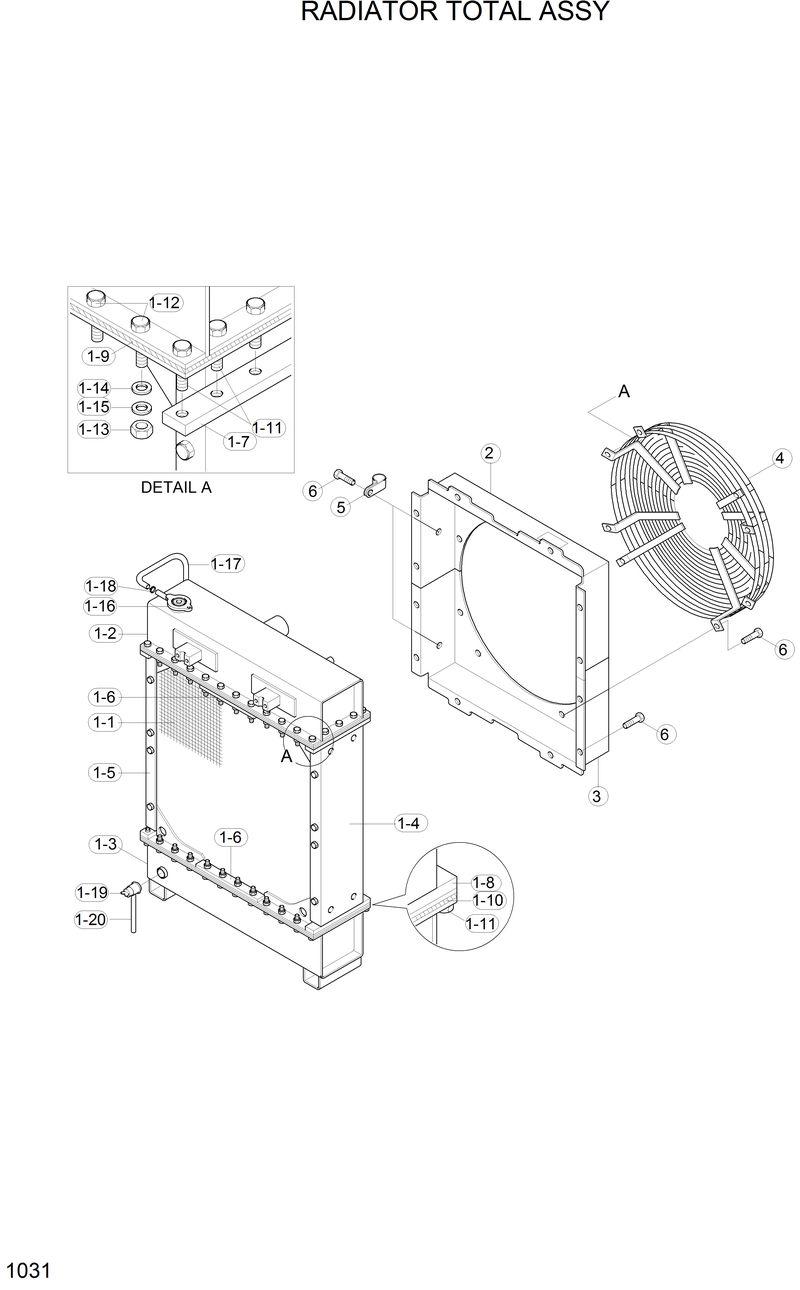

Запчасти Hyundai H80 RADIATOR TOTAL ASSY

*

15D2-30060

15D2-30060-Radiator Total Assy

1-1

30108080

30108080-.. Core Assy

1-10

45303120

45303120-.. Gasket(2)

1-11

91008250

91008250-.. Bolt-Asm

1-12

91908300

91908300-.. Bolt

1-13

92108140

92108140-.. Nut

1-14

90108200

90108200-.. Washer-Spring

1-15

90208160

90208160-.. Washer-Plain

1-16

12101831

12101831-.. Cap-Radiator

1-17

96301100

96301100-.. Hose-Overflow

1-18

45601740

45601740-.. Clamp-Hose

1-19

22900610

22900610-.. Cock-Drain

1-2

30205181

30205181-.. Tank(1) Assy

1-20

96300200

96300200-.. Hose-Drain

1-3

30307880

30307880-.. Tank(2) Assy

1-4

30405520

30405520-.. Member(1)

1-5

30504750

30504750-.. Member(2)

1-6

40906980

40906980-.. Flatbar

1-7

40906990

40906990-.. Tapping Plate(1)

1-8

40920910

40920910-.. Tapping Plate(2)

1-9

45301500

45301500-.. Gasket(1)

2

15D2-30040

15D2-30040-. Shroud-Upper

3

15D2-30050

15D2-30050-. Shroud-Lower

4

15D1-30221

15D1-30221-. Guard-Fan

5

31L3-0354

31L3-0354-. Clamp

6

S017-080202

S017-080202-. Bolt-Hex

N1

15D2-30031

15D2-30031-. Radiator Assy
