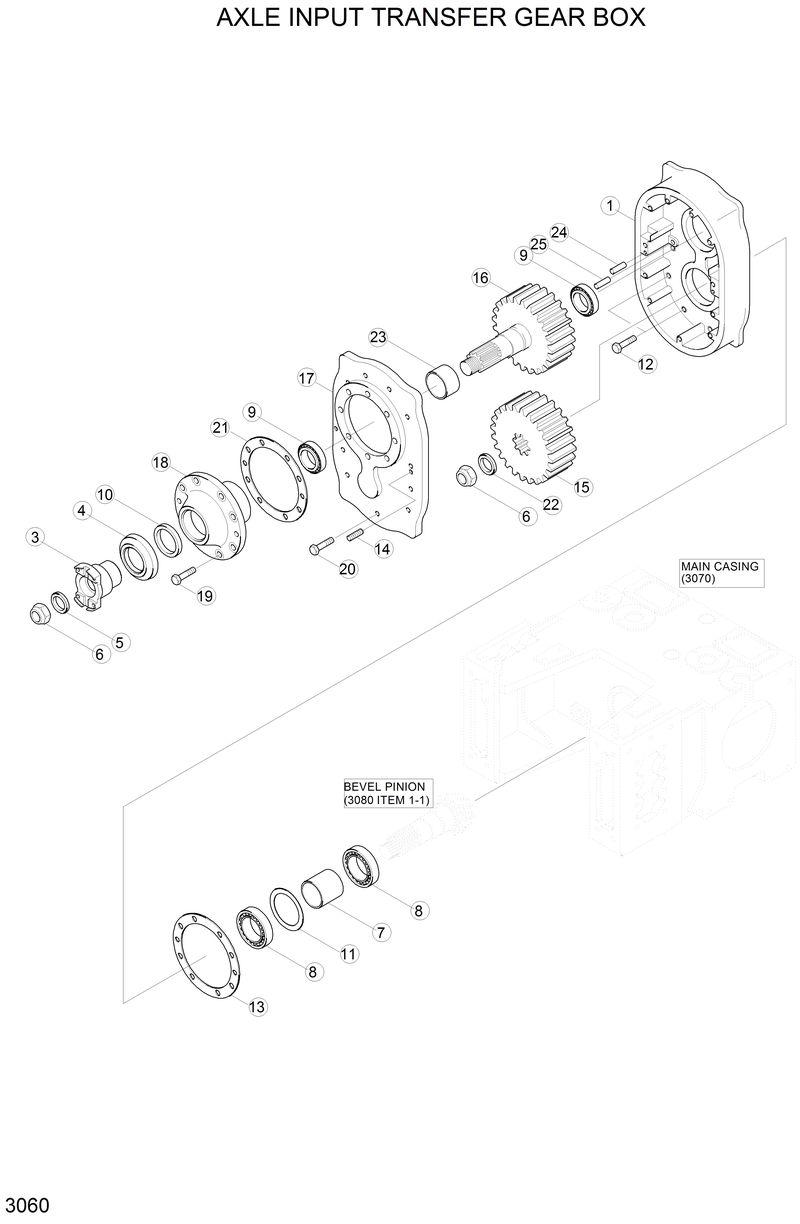

Запчасти Hyundai H80 AXLE INPUT TRANSFER GEAR BOX

55D1-41870

55D1-41870-. Shim-Set(0.10§®)

55D1-43020

55D1-43020-. Shim-Set(0.25§®)

55D1-43030

55D1-43030-. Shim-Set(0.10§®)

55D1-41880

55D1-41880-. Shim-Set(0.25§®)

55D1-42960

55D1-42960-. Shim-Set(0.25§®)

55D1-42950

55D1-42950-. Shim-Set(0.10§®)

*

55D1-42890

55D1-42890-Input Transfer Gearbox

1

55D1-43000

55D1-43000-. Housing

10

55D1-40410

55D1-40410-. Seal-Oil

11

55D1-42940

55D1-42940-. Shim-Set(0.05§®)

12

55D1-42990

55D1-42990-. Screw-Cap

13

55D1-41860

55D1-41860-. Shim-Set(0.05§®)

15

55D1-42910

55D1-42910-. Gear Wheel-Helical

16

55D1-42930

55D1-42930-. Pinion-Helical

17

55D1-42970

55D1-42970-. Cover

18

55D1-42980

55D1-42980-. Housing

19

55D1-43090

55D1-43090-. Screw

20

55D1-43080

55D1-43080-. Bolt-Hex Head

21

55D1-43040

55D1-43040-. Shim-Set(0.05§®)

22

55D1-43050

55D1-43050-. Washer

23

55D1-43060

55D1-43060-. Spacer

24

55D1-43070

55D1-43070-. Dowel Pin

25

55D1-41840

55D1-41840-. Dowel Pin

3

55D1-42900

55D1-42900-. Flange Coupling

4

55D1-40350

55D1-40350-. Shield-Dust

5

55D1-40360

55D1-40360-. Washer

6

55D1-40370

55D1-40370-. Nut

7

55D1-43010

55D1-43010-. Spacer-Bearing

8

55D1-42880

55D1-42880-. Bearing-Head

9

55D1-40400

55D1-40400-. Bearing-Tail

N14

55D1-42820

55D1-42820-. Plug-Cork
