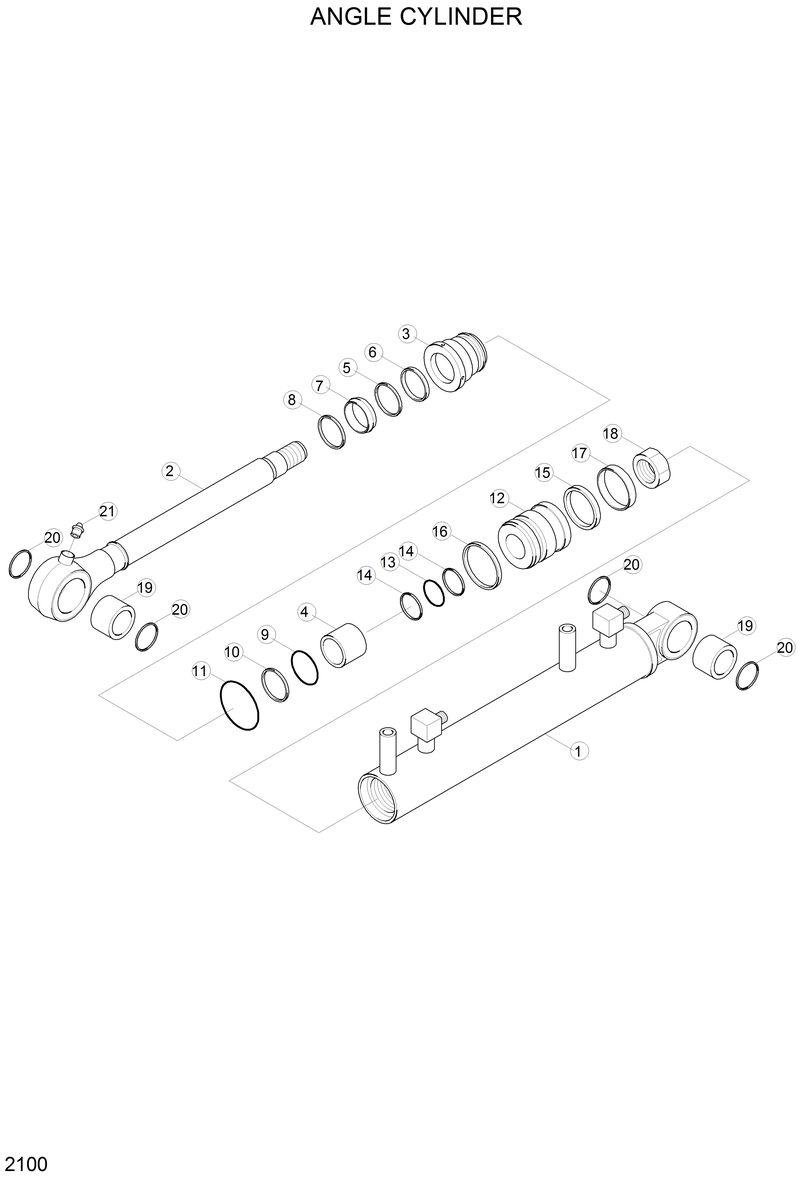

Запчасти Hyundai H80 ANGLE CYLINDER

31Y4-00531

31Y4-00531-. Rod Assy

35D2-10712

35D2-10712-Angle Cylinder

31Y4-00482

31Y4-00482-. Tube Assy

1

31Y4-00481

31Y4-00481-. Tube Assy

12

31Y4-00390

31Y4-00390-. Piston

18

31YC-65270

31YC-65270-. Nut-Nylon

19

Y830-045001

Y830-045001-. Bearing-Spherical

2

31Y4-00530

31Y4-00530-. Rod Assy

20

S602-075004

S602-075004-. Ring-Retaining C-Type

21

S651-810002

S651-810002-. Nipple-Grease

3

31Y4-00380

31Y4-00380-. Gland

4

S731-045030

S731-045030-. Du Bush

K

31Y4-00400

31Y4-00400-Seal Kit

K10

S642-085003

S642-085003-. Ring-Back Up

K11

S632-090001

S632-090001-. O-Ring

K13

S632-045004

S632-045004-. O-Ring

K14

S642-045003

S642-045003-. Ping-Back Up

K15

Y420-090000

Y420-090000-. Seal-Piston

K16

Y440-090000

Y440-090000-. Ring-Dust

K17

Y300-090100

Y300-090100-. Ring-Wear

K5

Y200-045011

Y200-045011-. Seal-Rod

K6

Y180-045020

Y180-045020-. Ring-Back Up

K7

Y110-045011

Y110-045011-. Wiper-Dust

K8

Y190-057000

Y190-057000-. Ring-Snap

K9

S632-085004

S632-085004-. O-Ring

N*

35D2-10740

35D2-10740-Angle Cylinder
